Deep groove ball bearing 16003-2Z – 17×35×8 mm

8 offers · 5 manufacturers · net prices from PLN 6.15 · dispatch in 2 working days

16003-2Z is a deep groove ball bearing with a 17 mm bore, 35 mm outside diameter and 8 mm width, with two metal shields (2Z) – non-contact, for higher speeds. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.

bore d: 17 mm
outside D: 35 mm
width B: 8 mm
sealing: 2Z
mass: 0.03 kg
net price from: PLN 6.15

Dimension drawing 16003-2Z – one for all brands (ISO dimensions)

Main dimensions
d – bore diameter	17 mm
D – outside diameter	35 mm
B – width	8 mm
mass	0.03 kg

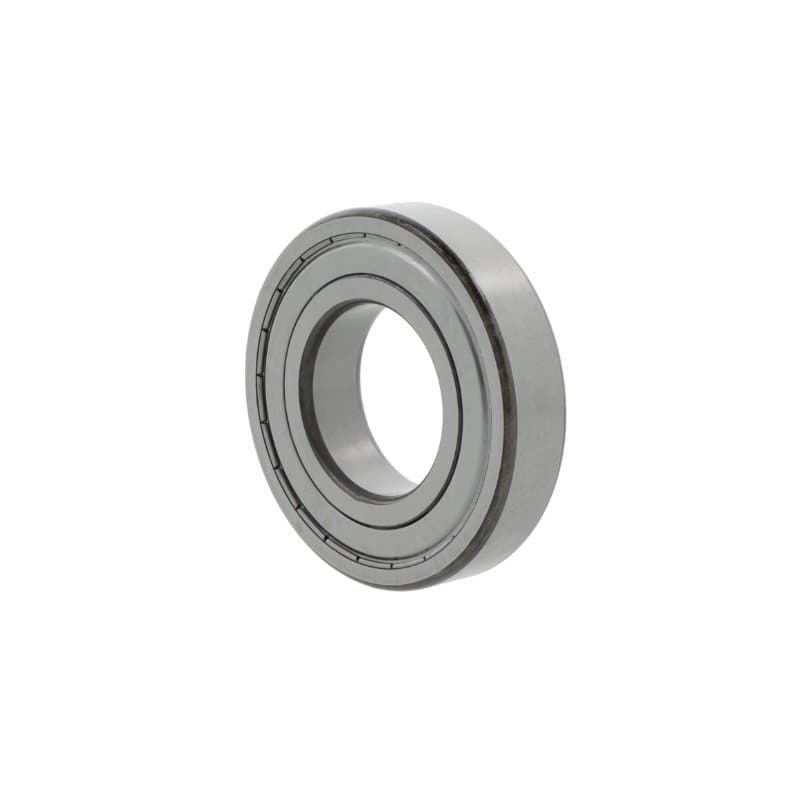

Pictured: ZEN 16003-2Z. Every brand has its own product page with photo and full description.

Brands and prices 16003-2Z

Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.

Brand	Manufacturer designation	Clearance	Net price	Availability
ZEN	16003-2Z	CN	PLN 6.15PLN 7.56 gross	supplier stockdispatch in 2 working days
NKE	16003-2Z	CN	PLN 11.02PLN 13.55 gross	supplier stockdispatch in 2 working days
NKE	16003-2ZC3	C3	PLN 12.15PLN 14.94 gross	supplier stockdispatch in 2 working days
FAG	16003-2ZR	CN	PLN 17.22PLN 21.18 gross	supplier stockdispatch in 2 working days
FAG	16003-A-2Z-C3	C3	PLN 17.22PLN 21.18 gross	supplier stockdispatch in 2 working days
TIMKEN	16003-ZZ	CN	PLN 17.33PLN 21.32 gross	supplier stockdispatch in 2 working days
SKF	16003-ZZ	CN	PLN 27.43PLN 33.74 gross	supplier stockdispatch in 2 working days

▸Special designs 16003-2Z (1) – stainless steel, snap ring, manufacturer specials

ZEN

S16003-2Z

PLN 17.38PLN 21.38 gross

supplier stockdispatch in 2 working days

Can't see your brand? Ask for an offer – we reply within 24 h.

Other versions of 16003

The same size in another design – open, shielded, tapered bore.

How manufacturers designate 16003-2Z

Each brand uses its own seal and design codes. The designations below describe the same bearing.

Manufacturer	Designation	Sealing / design
ZEN	16003-2Z	2Z – metal shields, both sides
NKE	16003-2Z	2Z – metal shields, both sides
FAG	16003-2ZR	2Z – metal shields, both sides
TIMKEN	16003-ZZ	2Z – metal shields, both sides
SKF	16003-ZZ	2Z – metal shields, both sides

2RS, 2Z or C3 – which to choose?

2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.

Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.

The dimensions of 16003-2Z are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.

Questions about 16003-2Z

What are the dimensions of bearing 16003-2Z?

Bore 17 mm, outside diameter 35 mm, width 8 mm. Standardised dimensions – the same for every manufacturer.

Are 16003-2Z bearings from different brands interchangeable?

Yes. 16003-2Z ZEN, 16003-2Z NKE, 16003-2ZR FAG, 16003-ZZ TIMKEN, 16003-ZZ SKF are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.

How much does bearing 16003-2Z cost?

At Castomer from PLN 6.15 to PLN 27.43 net per piece depending on the manufacturer (ZEN, NKE, FAG, TIMKEN, SKF). Prices are updated from supplier warehouses; larger quantities get an individual offer.

What is the delivery time for 16003-2Z?

Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
