Deep groove ball bearing 16018 – 90×140×16 mm
13 offers · 7 manufacturers · net prices from PLN 64.80 · dispatch in 2 working days

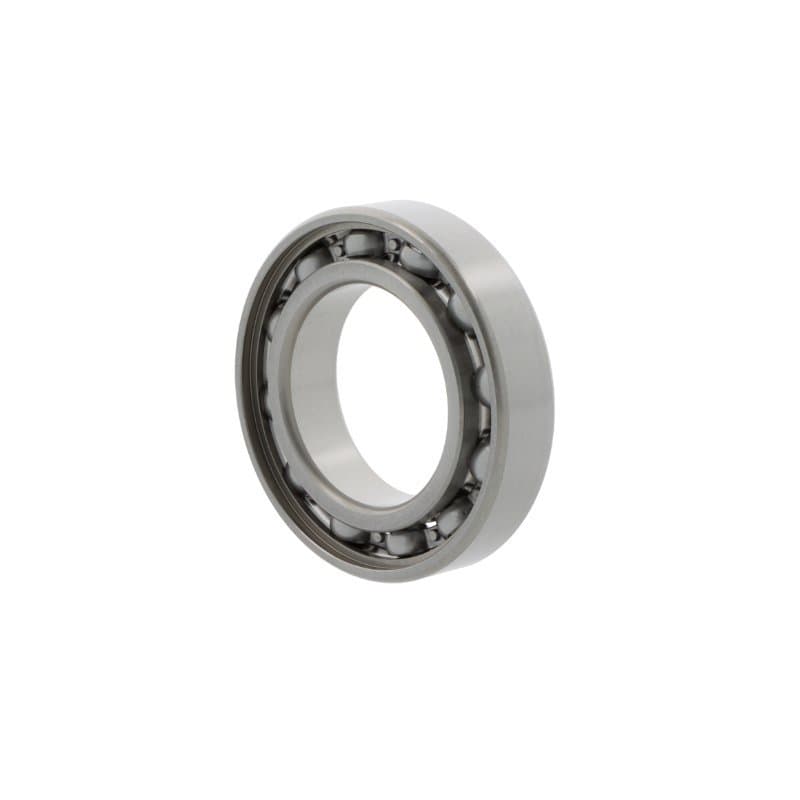

16018 is a deep groove ball bearing with a 90 mm bore, 140 mm outside diameter and 16 mm width, open design (no seals) – for externally lubricated arrangements. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 90 mm
- outside D
- 140 mm
- width B
- 16 mm
- sealing
- open
- mass
- 0.87 kg
- net price from
- PLN 64.80
Brands and prices 16018
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|
| ZEN | 16018 | CN | PLN 64.80PLN 79.70 gross | supplier stockdispatch in 2 working days | |
| NKE | 16018 | CN | PLN 109.72PLN 134.96 gross | supplier stockdispatch in 2 working days | |
| NACHI | 16018 | CN | PLN 114.37PLN 140.68 gross | supplier stockdispatch in 2 working days | |
| FAG | 16018 C3 | C3 | PLN 140.56PLN 172.89 gross | supplier stockdispatch in 2 working days | |
| FAG | 16018-C4 | C4 | PLN 147.80PLN 181.79 gross | supplier stockdispatch in 2 working days | |
| FAG | 16018 | CN | PLN 149.63PLN 184.04 gross | supplier stockdispatch in 2 working days | |
| NTN | 16018 | CN | PLN 155.79PLN 191.62 gross | supplier stockdispatch in 2 working days | |
| NSK | 16018 C3 | C3 | PLN 203.04PLN 249.74 gross | supplier stockdispatch in 2 working days | |
| NSK | 16018 | CN | PLN 203.04PLN 249.74 gross | supplier stockdispatch in 2 working days | |
| SKF | 16018 C3 | C3 | PLN 216.76PLN 266.61 gross | supplier stockdispatch in 2 working days | |
| SKF | 16018 | CN | PLN 222.05PLN 273.12 gross | supplier stockdispatch in 2 working days | |
| FAG | 16018-MA-C3machined brass cage, outer ring centred | C3 | PLN 562.30PLN 691.63 gross | supplier stockdispatch in 2 working days | |
| FAG | 16018-MAmachined brass cage, outer ring centred | CN | PLN 612.79PLN 753.73 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
How manufacturers designate 16018
Each brand uses its own seal and design codes. The designations below describe the same bearing.
2RS, 2Z or C3 – which to choose?
2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.
Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.
The dimensions of 16018 are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.
Questions about 16018
What are the dimensions of bearing 16018?
Bore 90 mm, outside diameter 140 mm, width 16 mm. Standardised dimensions – the same for every manufacturer.
Are 16018 bearings from different brands interchangeable?
Yes. 16018 C3 FAG, 16018 C3 NSK, 16018 C3 SKF, 16018 ZEN, 16018 NKE are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 16018 cost?
At Castomer from PLN 64.80 to PLN 612.79 net per piece depending on the manufacturer (FAG, NSK, SKF, ZEN, NKE, NACHI). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 16018?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
