Deep groove ball bearing 16020 – 100×150×16 mm
12 offers · 7 manufacturers · net prices from PLN 85.33 · dispatch in 2 working days

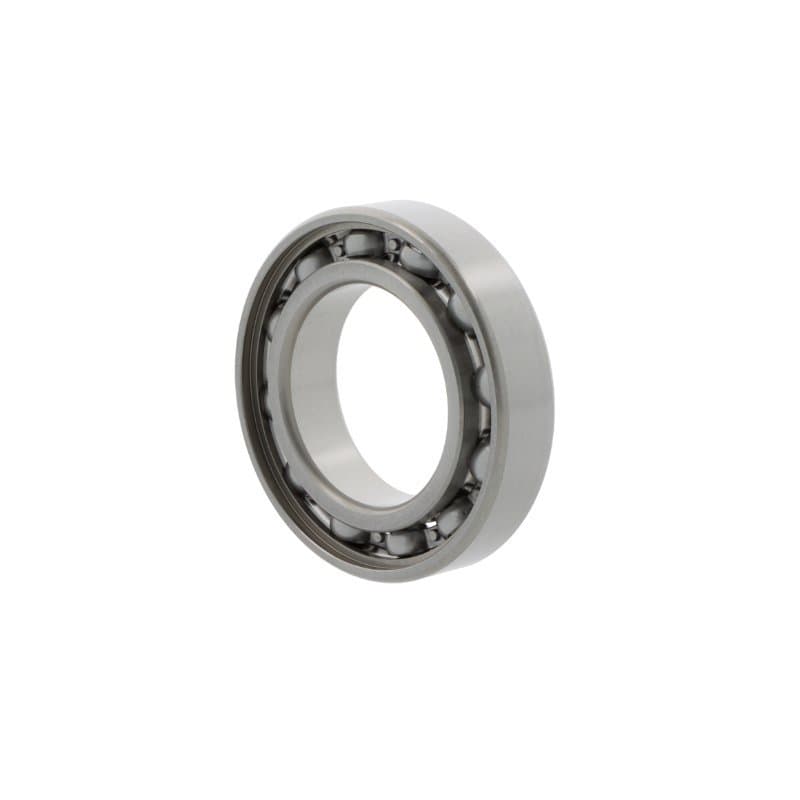

16020 is a deep groove ball bearing with a 100 mm bore, 150 mm outside diameter and 16 mm width, open design (no seals) – for externally lubricated arrangements. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 100 mm
- outside D
- 150 mm
- width B
- 16 mm
- sealing
- open
- mass
- 0.96 kg
- net price from
- PLN 85.33
Brands and prices 16020
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|
| ZEN | 16020 | CN | PLN 85.33PLN 104.96 gross | supplier stockdispatch in 2 working days | |
| NKE | 16020 | CN | PLN 135.81PLN 167.05 gross | supplier stockdispatch in 2 working days | |
| NKE | 16020 C3 | C3 | PLN 135.81PLN 167.05 gross | supplier stockdispatch in 2 working days | |
| NACHI | 16020 | CN | PLN 142.08PLN 174.76 gross | supplier stockdispatch in 2 working days | |
| NSK | 16020 | CN | PLN 188.13PLN 231.40 gross | supplier stockdispatch in 2 working days | |
| FAG | 16020 | CN | PLN 190.72PLN 234.59 gross | supplier stockdispatch in 2 working days | |
| FAG | 16020 C3 | C3 | PLN 190.72PLN 234.59 gross | supplier stockdispatch in 2 working days | |
| NTN | 16020 | CN | PLN 192.72PLN 237.05 gross | supplier stockdispatch in 2 working days | |
| NTN | 16020 C3 | C3 | PLN 192.72PLN 237.05 gross | supplier stockdispatch in 2 working days | |
| SKF | 16020 /C3 | C3 | PLN 302.73PLN 372.36 gross | supplier stockdispatch in 2 working days | |
| SKF | 16020 | CN | PLN 317.89PLN 391.00 gross | supplier stockdispatch in 2 working days | |
| FAG | 16020-MA-C3machined brass cage, outer ring centred | C3 | PLN 861.14PLN 1,059.20 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
How manufacturers designate 16020
Each brand uses its own seal and design codes. The designations below describe the same bearing.
2RS, 2Z or C3 – which to choose?
2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.
Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.
The dimensions of 16020 are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.
Questions about 16020
What are the dimensions of bearing 16020?
Bore 100 mm, outside diameter 150 mm, width 16 mm. Standardised dimensions – the same for every manufacturer.
Are 16020 bearings from different brands interchangeable?
Yes. 16020 FAG, 16020 NKE, 16020 NTN, 16020 /C3 SKF, 16020 ZEN are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 16020 cost?
At Castomer from PLN 85.33 to PLN 861.14 net per piece depending on the manufacturer (FAG, NKE, NTN, SKF, ZEN, NACHI). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 16020?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
