Deep groove ball bearing 16024 – 120×180×19 mm
15 offers · 7 manufacturers · net prices from PLN 100.50 · dispatch in 2 working days
16024 is a deep groove ball bearing with a 120 mm bore, 180 mm outside diameter and 19 mm width, open design (no seals) – for externally lubricated arrangements. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 120 mm
- outside D
- 180 mm
- width B
- 19 mm
- sealing
- open
- mass
- 1.62 kg
- net price from
- PLN 100.50
Brands and prices 16024
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

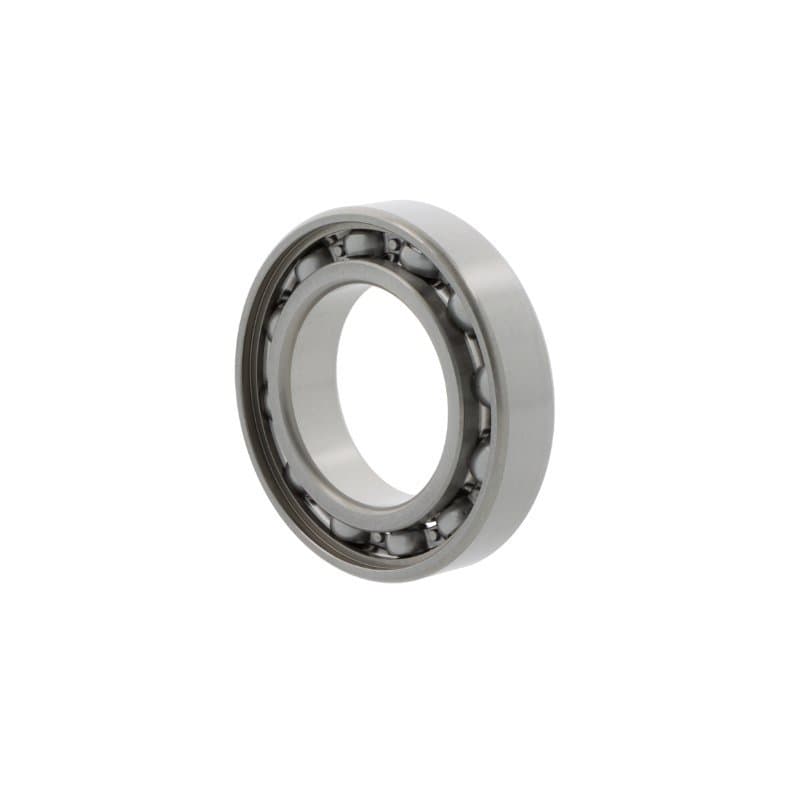

| ZEN | 16024 | CN | PLN 100.50PLN 123.62 gross | supplier stockdispatch in 2 working days | |
| NKE | 16024 | CN | PLN 222.21PLN 273.32 gross | supplier stockdispatch in 2 working days | |
| KOYO | 16024 | CN | PLN 248.40PLN 305.53 gross | supplier stockdispatch in 2 working days | |
| KOYO | 16024 C3 | C3 | PLN 260.22PLN 320.07 gross | supplier stockdispatch in 2 working days | |
| FAG | 16024 | CN | PLN 270.76PLN 333.03 gross | supplier stockdispatch in 2 working days | |
| FAG | 16024-C4 | C4 | PLN 284.42PLN 349.84 gross | supplier stockdispatch in 2 working days | |
| NSK | 16024 | CN | PLN 307.91PLN 378.73 gross | supplier stockdispatch in 2 working days | |
| NSK | 16024 C3 | C3 | PLN 307.91PLN 378.73 gross | supplier stockdispatch in 2 working days | |
| FAG | 16024-C5 | C5 | PLN 308.02PLN 378.86 gross | supplier stockdispatch in 2 working days | |
| NTN | 16024 | CN | PLN 315.31PLN 387.83 gross | supplier stockdispatch in 2 working days | |
| NTN | 16024 C3 | C3 | PLN 315.31PLN 387.83 gross | supplier stockdispatch in 2 working days | |
| SKF | 16024 C3 | C3 | PLN 463.92PLN 570.62 gross | supplier stockdispatch in 2 working days | |
| SKF | 16024 | CN | PLN 475.80PLN 585.23 gross | supplier stockdispatch in 2 working days | |
| FAG | 16024-M-C4machined brass cage | C4 | PLN 616.02PLN 757.70 gross | supplier stockdispatch in 2 working days | |
| FAG | 16024-MA-C3machined brass cage, outer ring centred | C3 | PLN 647.08PLN 795.91 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
How manufacturers designate 16024
Each brand uses its own seal and design codes. The designations below describe the same bearing.
2RS, 2Z or C3 – which to choose?
2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.
Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.
The dimensions of 16024 are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.
Questions about 16024
What are the dimensions of bearing 16024?
Bore 120 mm, outside diameter 180 mm, width 19 mm. Standardised dimensions – the same for every manufacturer.
Are 16024 bearings from different brands interchangeable?
Yes. 16024 FAG, 16024 KOYO, 16024 NSK, 16024 NTN, 16024 C3 SKF are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 16024 cost?
At Castomer from PLN 100.50 to PLN 647.08 net per piece depending on the manufacturer (FAG, KOYO, NSK, NTN, SKF, ZEN). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 16024?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
