Deep groove ball bearing 16026 – 130×200×22 mm
11 offers · 5 manufacturers · net prices from PLN 243.33 · dispatch in 2 working days
16026 is a deep groove ball bearing with a 130 mm bore, 200 mm outside diameter and 22 mm width, open design (no seals) – for externally lubricated arrangements. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 130 mm
- outside D
- 200 mm
- width B
- 22 mm
- sealing
- open
- mass
- 2.35 kg
- net price from
- PLN 243.33
Brands and prices 16026
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

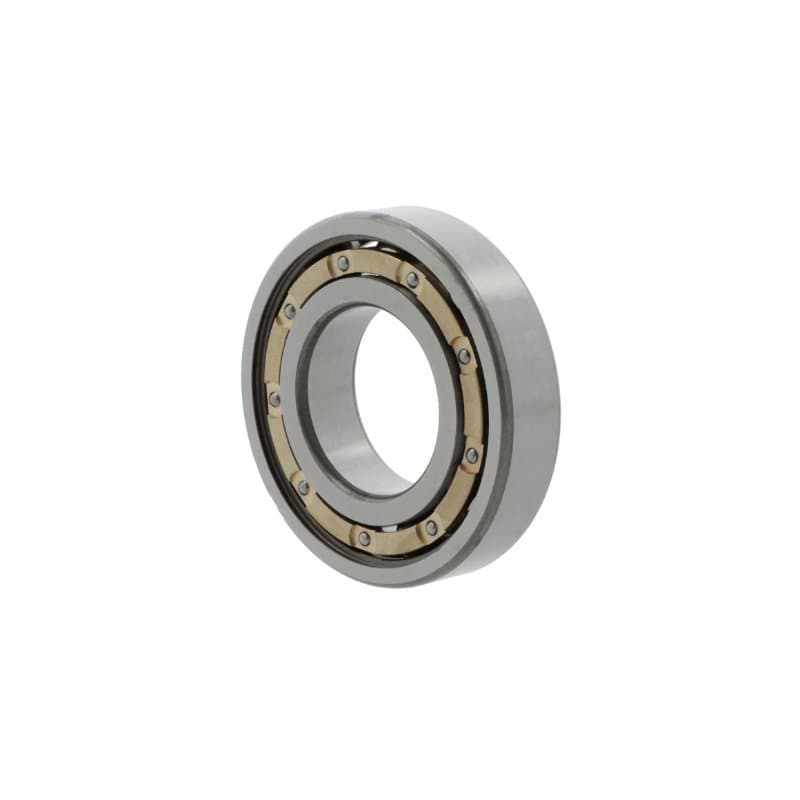

| ZEN | 16026 Mmachined brass cage | CN | PLN 243.33PLN 299.30 gross | supplier stockdispatch in 2 working days | |
| NKE | 16026 | CN | PLN 296.08PLN 364.18 gross | supplier stockdispatch in 2 working days | |
| NKE | 16026-C3 | C3 | PLN 301.92PLN 371.36 gross | supplier stockdispatch in 2 working days | |
| FAG | 16026 | CN | PLN 366.39PLN 450.66 gross | supplier stockdispatch in 2 working days | |
| FAG | 16026 C3 | C3 | PLN 366.39PLN 450.66 gross | supplier stockdispatch in 2 working days | |
| FAG | 16026-C4 | C4 | PLN 384.97PLN 473.51 gross | supplier stockdispatch in 2 working days | |
| NTN | 16026 | CN | PLN 385.50PLN 474.17 gross | supplier stockdispatch in 2 working days | |
| NTN | 16026 C3 | C3 | PLN 432.54PLN 532.02 gross | supplier stockdispatch in 2 working days | |
| SKF | 16026 | CN | PLN 586.54PLN 721.44 gross | supplier stockdispatch in 2 working days | |
| SKF | 16026 C3 | C3 | PLN 600.92PLN 739.13 gross | supplier stockdispatch in 2 working days | |
| FAG | 16026-MA-C3machined brass cage, outer ring centred | C3 | PLN 742.72PLN 913.55 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
How manufacturers designate 16026
Each brand uses its own seal and design codes. The designations below describe the same bearing.
2RS, 2Z or C3 – which to choose?
2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.
Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.
The dimensions of 16026 are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.
Questions about 16026
What are the dimensions of bearing 16026?
Bore 130 mm, outside diameter 200 mm, width 22 mm. Standardised dimensions – the same for every manufacturer.
Are 16026 bearings from different brands interchangeable?
Yes. 16026 FAG, 16026 NKE, 16026 NTN, 16026 SKF, 16026 M ZEN are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 16026 cost?
At Castomer from PLN 243.33 to PLN 742.72 net per piece depending on the manufacturer (FAG, NKE, NTN, SKF, ZEN). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 16026?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
