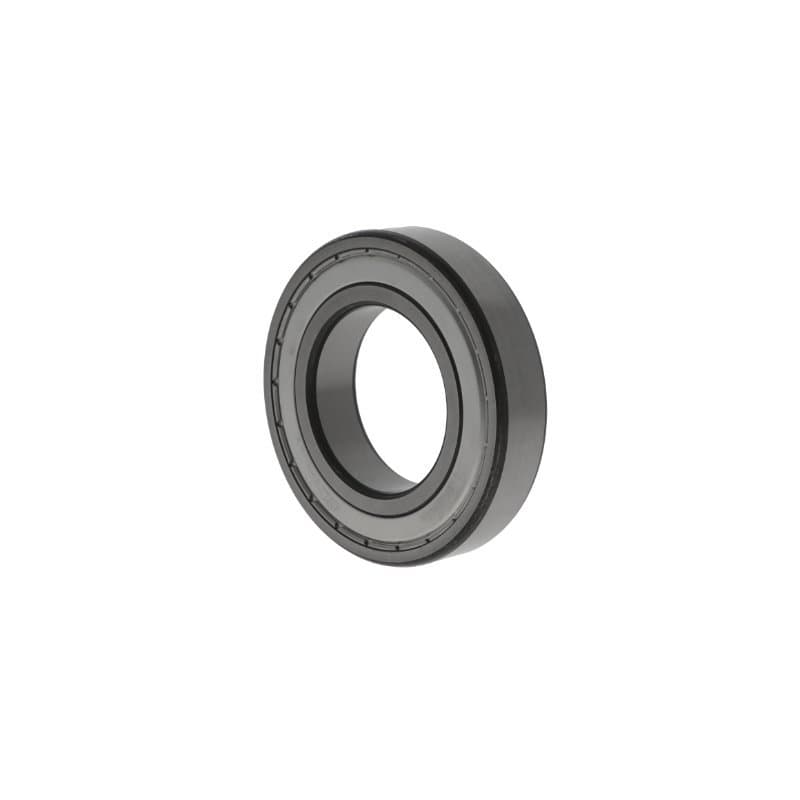

Deep groove ball bearing 209-Z – 45×85×19 mm
2 offers · 1 manufacturer · net prices from PLN 195.92 · dispatch in 2 working days
209-Z is a deep groove ball bearing with a 45 mm bore, 85 mm outside diameter and 19 mm width, with one metal shield (Z). The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 45 mm
- outside D
- 85 mm
- width B
- 19 mm
- sealing
- Z
- mass
- 0.45 kg
- net price from
- PLN 195.92
Brands and prices 209-Z
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|
| SKF | 209-Z | CN | PLN 199.47PLN 245.35 gross | supplier stockdispatch in 2 working days |
▸Special designs 209-Z (1) – stainless steel, snap ring, manufacturer specials
| SKF | 209-ZNRsnap ring groove with snap ring | CN | PLN 195.92PLN 240.98 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 209
The same size in another design – open, shielded, tapered bore.
2RS, 2Z or C3 – which to choose?
2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.
Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.
The dimensions of 209-Z are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.
Questions about 209-Z
What are the dimensions of bearing 209-Z?
Bore 45 mm, outside diameter 85 mm, width 19 mm. Standardised dimensions – the same for every manufacturer.
How much does bearing 209-Z cost?
At Castomer from PLN 195.92 to PLN 199.47 net per piece depending on the manufacturer (SKF). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 209-Z?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
