Spherical roller bearing 22224 K – 120×215×58 mm
18 offers · 7 manufacturers · net prices from PLN 726.02 · dispatch in 2 working days
22224 K is a spherical roller bearing with a 120 mm bore, 215 mm outside diameter and 58 mm width, open design (no seals) – for externally lubricated arrangements with a tapered bore (K) for adapter sleeve mounting. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 120 mm
- outside D
- 215 mm
- width B
- 58 mm
- sealing
- open
- mass
- 8.69 kg
- net price from
- PLN 726.02
Brands and prices 22224 K
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

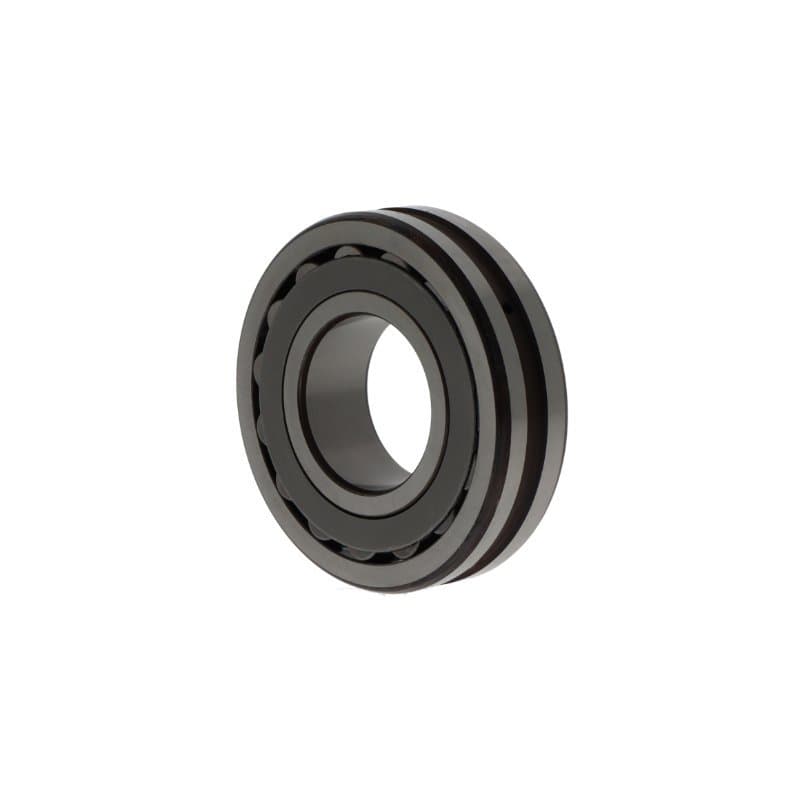

| NKE | 22224-E-K-W33reinforced design, higher load rating, tapered bore, taper 1:12, lubrication groove and holes in the outer ring | CN | PLN 726.02PLN 893.00 gross | supplier stockdispatch in 2 working days | |
| NKE | 22224-E-K-C3-W33reinforced design, higher load rating, tapered bore, taper 1:12, lubrication groove and holes in the outer ring | C3 | PLN 726.02PLN 893.00 gross | supplier stockdispatch in 2 working days | |
| INNE | 22224 K.EXQW33tapered bore, taper 1:12, reinforced design, higher load rating, lubrication groove and holes in the outer ring | CN | PLN 745.47PLN 916.93 gross | supplier stockdispatch in 2 working days | |
| NACHI | 22224 EXQW33KC3reinforced design, higher load rating, lubrication groove and holes in the outer ring, tapered bore, taper 1:12 | C3 | PLN 745.47PLN 916.93 gross | supplier stockdispatch in 2 working days | |
| NSK | 22224 K.EAE4tapered bore, taper 1:12, pressed steel cage, high-capacity design (NSK), reinforced design, higher load rating | CN | PLN 927.82PLN 1,141.22 gross | supplier stockdispatch in 2 working days | |
| NSK | 22224 K.EAE4C3tapered bore, taper 1:12, pressed steel cage, high-capacity design (NSK), reinforced design, higher load rating | CN | PLN 927.82PLN 1,141.22 gross | supplier stockdispatch in 2 working days | |
| TIMKEN | 22224 KEJW33tapered bore, taper 1:12, pressed steel cage (Timken), lubrication groove and holes in the outer ring | CN | PLN 931.07PLN 1,145.22 gross | supplier stockdispatch in 2 working days | |
| TIMKEN | 22224 KEJW33C3tapered bore, taper 1:12, pressed steel cage (Timken), lubrication groove and holes in the outer ring | C3 | PLN 931.07PLN 1,145.22 gross | supplier stockdispatch in 2 working days | |
| FAG | 22224 K.E1AMtapered bore, taper 1:12, reinforced design E1 (FAG), machined brass cage | CN | PLN 1,048.62PLN 1,289.80 gross | supplier stockdispatch in 2 working days | |
| NSK | 22224 K.CAME4tapered bore, taper 1:12, machined brass cage CA, modified (SKF), reinforced design, higher load rating | CN | PLN 1,067.04PLN 1,312.46 gross | supplier stockdispatch in 2 working days | |
| NSK | 22224 ECAMKE4C3reinforced EC design, more rollers (SKF), machined brass cage, tapered bore, taper 1:12, reinforced design, higher load rating | CN | PLN 1,067.04PLN 1,312.46 gross | supplier stockdispatch in 2 working days | |
| NSK | 22224 CAMKE4C3S11machined brass cage CA, modified (SKF), tapered bore, taper 1:12, reinforced design, higher load rating | CN | PLN 1,067.04PLN 1,312.46 gross | supplier stockdispatch in 2 working days | |
| NSK | 22224 CAMKE4S11machined brass cage CA, modified (SKF), tapered bore, taper 1:12, reinforced design, higher load rating | CN | PLN 1,067.04PLN 1,312.46 gross | supplier stockdispatch in 2 working days | |
| FAG | 22224-E1A-XL-K-M-C4reinforced design E1 (FAG), tapered bore, taper 1:12, machined brass cage | C4 | PLN 1,079.78PLN 1,328.13 gross | supplier stockdispatch in 2 working days | |
| FAG | 22224 K.E1AMC3tapered bore, taper 1:12, reinforced design E1 (FAG), machined brass cage | C3 | PLN 1,083.63PLN 1,332.86 gross | supplier stockdispatch in 2 working days | |
| SKF | 22224 K.EC3tapered bore, taper 1:12, reinforced design, higher load rating | C3 | PLN 1,085.34PLN 1,334.97 gross | supplier stockdispatch in 2 working days | |
| SKF | 22224 K.Etapered bore, taper 1:12, reinforced design, higher load rating | CN | PLN 1,117.26PLN 1,374.23 gross | supplier stockdispatch in 2 working days | |
| SKF | 22224 K.EC4tapered bore, taper 1:12, reinforced design, higher load rating | C4 | PLN 1,468.37PLN 1,806.10 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 22224
The same size in another design – open, shielded, tapered bore.
How manufacturers designate 22224 K
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| NSK | 22224 K.EAE4 | Open |
| FAG | 22224 K.E1AM | Open |
| SKF | 22224 K.EC3 | Open |
| NKE | 22224-E-K-W33 | Open |
| TIMKEN | 22224 KEJW33 | Open |
| INNE | 22224 K.EXQW33 | Open |
| NACHI | 22224 EXQW33KC3 | Open |
Questions about 22224 K
What are the dimensions of bearing 22224 K?
Bore 120 mm, outside diameter 215 mm, width 58 mm. Standardised dimensions – the same for every manufacturer.
Are 22224 K bearings from different brands interchangeable?
Yes. 22224 K.EAE4 NSK, 22224 K.E1AM FAG, 22224 K.EC3 SKF, 22224-E-K-W33 NKE, 22224 KEJW33 TIMKEN are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 22224 K cost?
At Castomer from PLN 726.02 to PLN 1,468.37 net per piece depending on the manufacturer (NSK, FAG, SKF, NKE, TIMKEN, INNE). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 22224 K?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
