Spherical roller bearing 22234 K – 170×310×86 mm
17 offers · 6 manufacturers · net prices from PLN 2,504.85 · dispatch in 2 working days
22234 K is a spherical roller bearing with a 170 mm bore, 310 mm outside diameter and 86 mm width, open design (no seals) – for externally lubricated arrangements with a tapered bore (K) for adapter sleeve mounting. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 170 mm
- outside D
- 310 mm
- width B
- 86 mm
- sealing
- open
- mass
- 27.1 kg
- net price from
- PLN 2,504.85
Brands and prices 22234 K
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

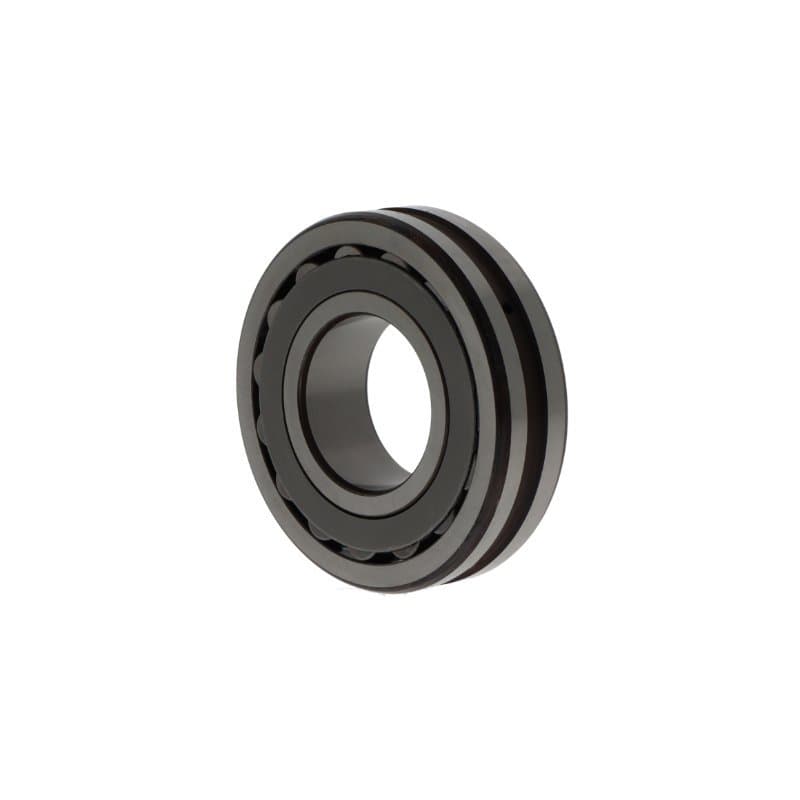

| TIMKEN | 22234 KEJW33tapered bore, taper 1:12, pressed steel cage (Timken), lubrication groove and holes in the outer ring | CN | PLN 2,504.85PLN 3,080.97 gross | supplier stockdispatch in 2 working days | |
| FAG | 22234 K.E1C3tapered bore, taper 1:12, reinforced design E1 (FAG) | C3 | PLN 2,578.55PLN 3,171.62 gross | supplier stockdispatch in 2 working days | |
| FAG | 22234 K.E1tapered bore, taper 1:12, reinforced design E1 (FAG) | CN | PLN 2,578.55PLN 3,171.62 gross | supplier stockdispatch in 2 working days | |
| NSK | 22234 K.EMW33tapered bore, taper 1:12, machined brass cage (NSK), lubrication groove and holes in the outer ring | CN | PLN 2,580.02PLN 3,173.42 gross | supplier stockdispatch in 2 working days | |
| FAG | 22234 K.E1C4tapered bore, taper 1:12, reinforced design E1 (FAG) | C4 | PLN 2,619.22PLN 3,221.64 gross | supplier stockdispatch in 2 working days | |
| TIMKEN | 22234 KEJW33C3tapered bore, taper 1:12, pressed steel cage (Timken), lubrication groove and holes in the outer ring | C3 | PLN 2,636.66PLN 3,243.09 gross | supplier stockdispatch in 2 working days | |
| NSK | 22234 CDKE4S11tapered bore, taper 1:12, reinforced design, higher load rating | CN | PLN 2,862.37PLN 3,520.72 gross | supplier stockdispatch in 2 working days | |
| NSK | 22234 CDK4EC3S11tapered bore, taper 1:12 | C3 | PLN 2,862.37PLN 3,520.72 gross | supplier stockdispatch in 2 working days | |
| NTN | 22234 EMKW33machined brass cage (NSK), tapered bore, taper 1:12, lubrication groove and holes in the outer ring | CN | PLN 2,978.15PLN 3,663.12 gross | supplier stockdispatch in 2 working days | |
| KOYO | 22234 RHAKW33C3tapered bore, taper 1:12, lubrication groove and holes in the outer ring | C3 | PLN 3,124.17PLN 3,842.73 gross | supplier stockdispatch in 2 working days | |
| FAG | 22234 K.E1AMC3tapered bore, taper 1:12, reinforced design E1 (FAG), machined brass cage | C3 | PLN 3,156.14PLN 3,882.05 gross | supplier stockdispatch in 2 working days | |
| FAG | 22234 K.E1AMtapered bore, taper 1:12, reinforced design E1 (FAG), machined brass cage | CN | PLN 3,156.14PLN 3,882.05 gross | supplier stockdispatch in 2 working days | |
| FAG | 22234-E1A-XL-K-M-C4reinforced design E1 (FAG), tapered bore, taper 1:12, machined brass cage | C4 | PLN 3,171.85PLN 3,901.38 gross | supplier stockdispatch in 2 working days | |
| NSK | 22234 CAMKE4S11machined brass cage CA, modified (SKF), tapered bore, taper 1:12, reinforced design, higher load rating | CN | PLN 3,291.73PLN 4,048.83 gross | supplier stockdispatch in 2 working days | |
| SKF | 22234 K.CCC4W33tapered bore, taper 1:12, pressed steel window-type cage (SKF), lubrication groove and holes in the outer ring | C4 | PLN 3,312.89PLN 4,074.85 gross | supplier stockdispatch in 2 working days | |
| SKF | 22234 K.CCW33tapered bore, taper 1:12, pressed steel window-type cage (SKF), lubrication groove and holes in the outer ring | CN | PLN 3,816.70PLN 4,694.54 gross | supplier stockdispatch in 2 working days | |
| SKF | 22234 K.CCC3W33tapered bore, taper 1:12, pressed steel window-type cage (SKF), lubrication groove and holes in the outer ring | C3 | PLN 4,017.55PLN 4,941.59 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 22234
The same size in another design – open, shielded, tapered bore.
How manufacturers designate 22234 K
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| FAG | 22234 K.E1C3 | Open |
| NSK | 22234 K.EMW33 | Open |
| SKF | 22234 K.CCC4W33 | Open |
| TIMKEN | 22234 KEJW33 | Open |
| NTN | 22234 EMKW33 | Open |
| KOYO | 22234 RHAKW33C3 | Open |
Questions about 22234 K
What are the dimensions of bearing 22234 K?
Bore 170 mm, outside diameter 310 mm, width 86 mm. Standardised dimensions – the same for every manufacturer.
Are 22234 K bearings from different brands interchangeable?
Yes. 22234 K.E1C3 FAG, 22234 K.EMW33 NSK, 22234 K.CCC4W33 SKF, 22234 KEJW33 TIMKEN, 22234 EMKW33 NTN are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 22234 K cost?
At Castomer from PLN 2,504.85 to PLN 4,017.55 net per piece depending on the manufacturer (FAG, NSK, SKF, TIMKEN, NTN, KOYO). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 22234 K?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
