Spherical roller bearing 22252 – 260×480×130 mm
3 offers · 2 manufacturers · net prices from PLN 12,384.01 · dispatch in 2 working days
22252 is a spherical roller bearing with a 260 mm bore, 480 mm outside diameter and 130 mm width, open design (no seals) – for externally lubricated arrangements. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 260 mm
- outside D
- 480 mm
- width B
- 130 mm
- sealing
- open
- mass
- 103.7 kg
- net price from
- PLN 12,384.01
Brands and prices 22252
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

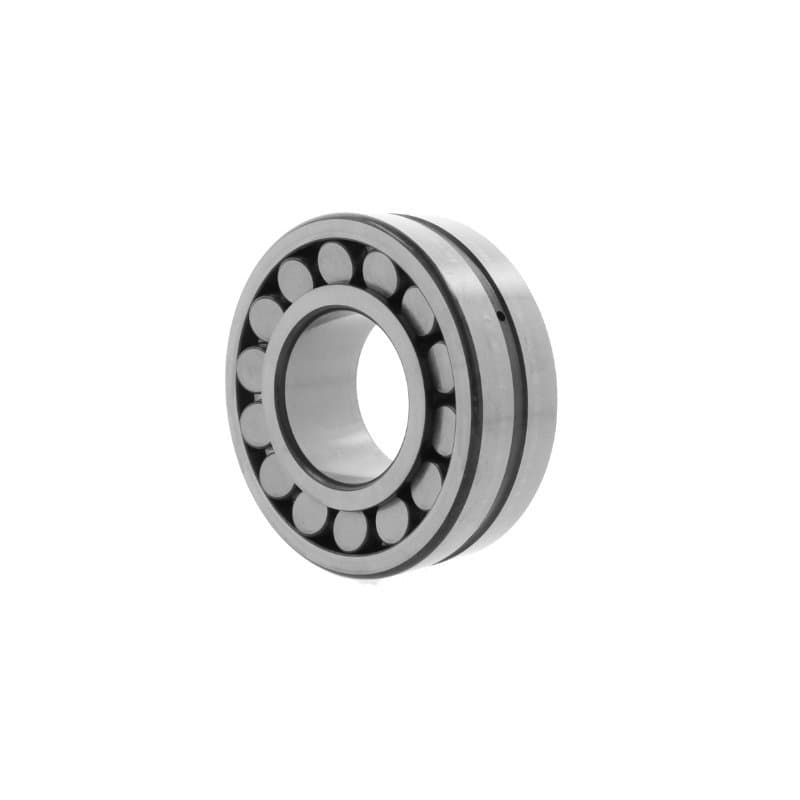

| FAG | 22252 BEAXLMB1C340° contact angle, reinforced design, machined brass cage, inner ring centred | CN | PLN 12,384.01PLN 15,232.33 gross | supplier stockdispatch in 2 working days | |
| SKF | 22252 CCW33pressed steel window-type cage (SKF), lubrication groove and holes in the outer ring | CN | PLN 13,784.30PLN 16,954.69 gross | supplier stockdispatch in 2 working days | |
| SKF | 22252 CCC3W33pressed steel window-type cage (SKF), lubrication groove and holes in the outer ring | C3 | PLN 14,818.10PLN 18,226.26 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 22252
The same size in another design – open, shielded, tapered bore.
How manufacturers designate 22252
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| SKF | 22252 CCW33 | Open |
| FAG | 22252 BEAXLMB1C3 | Open |
Questions about 22252
What are the dimensions of bearing 22252?
Bore 260 mm, outside diameter 480 mm, width 130 mm. Standardised dimensions – the same for every manufacturer.
Are 22252 bearings from different brands interchangeable?
Yes. 22252 CCW33 SKF, 22252 BEAXLMB1C3 FAG are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 22252 cost?
At Castomer from PLN 12,384.01 to PLN 14,818.10 net per piece depending on the manufacturer (SKF, FAG). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 22252?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
