Spherical roller bearing 22260 – 300×540×140 mm
3 offers · 2 manufacturers · net prices from PLN 19,260.50 · dispatch in 2 working days
22260 is a spherical roller bearing with a 300 mm bore, 540 mm outside diameter and 140 mm width, open design (no seals) – for externally lubricated arrangements. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 300 mm
- outside D
- 540 mm
- width B
- 140 mm
- sealing
- open
- net price from
- PLN 19,260.50
Brands and prices 22260
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

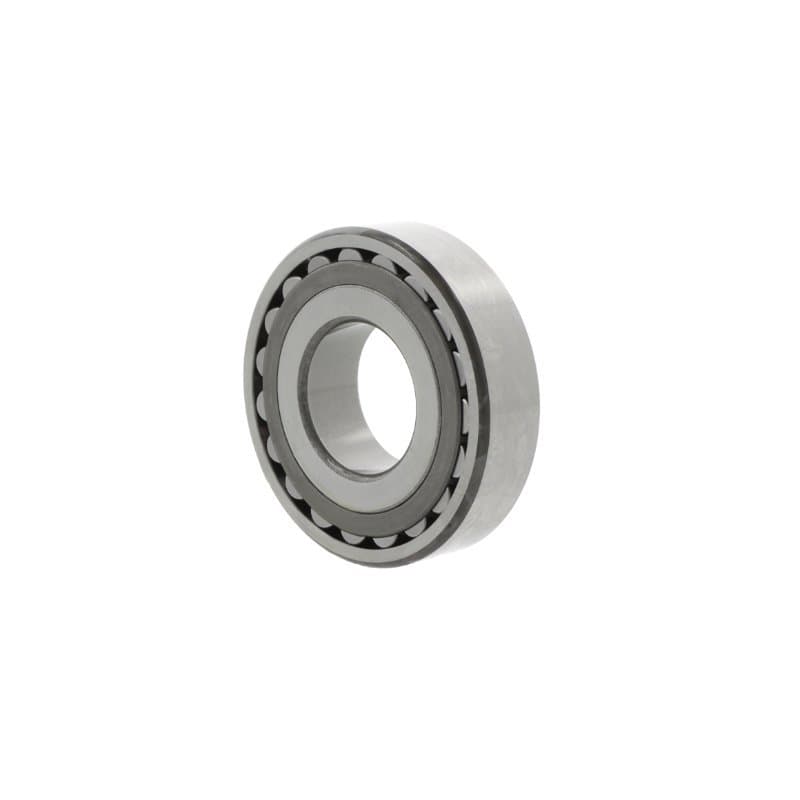

| SKF | 22260 CC/W33pressed steel window-type cage (SKF), lubrication groove and holes in the outer ring | CN | PLN 19,260.50PLN 23,690.42 gross | supplier stockdispatch in 2 working days | |
| FAG | 22260-BEA-XL-MB1-C340° contact angle, reinforced design, machined brass cage, inner ring centred | C3 | PLN 20,929.75PLN 25,743.59 gross | supplier stockdispatch in 2 working days | |
| FAG | 22260-BEA-XL-MB140° contact angle, reinforced design, machined brass cage, inner ring centred | CN | PLN 20,929.75PLN 25,743.59 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 22260
The same size in another design – open, shielded, tapered bore.
How manufacturers designate 22260
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| FAG | 22260-BEA-XL-MB1-C3 | Open |
| SKF | 22260 CC/W33 | Open |
Questions about 22260
What are the dimensions of bearing 22260?
Bore 300 mm, outside diameter 540 mm, width 140 mm. Standardised dimensions – the same for every manufacturer.
Are 22260 bearings from different brands interchangeable?
Yes. 22260-BEA-XL-MB1-C3 FAG, 22260 CC/W33 SKF are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 22260 cost?
At Castomer from PLN 19,260.50 to PLN 20,929.75 net per piece depending on the manufacturer (FAG, SKF). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 22260?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
