Spherical roller bearing 22309 K – 45×100×36 mm
15 offers · 8 manufacturers · net prices from PLN 173.28 · dispatch in 2 working days
22309 K is a spherical roller bearing with a 45 mm bore, 100 mm outside diameter and 36 mm width, open design (no seals) – for externally lubricated arrangements with a tapered bore (K) for adapter sleeve mounting. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 45 mm
- outside D
- 100 mm
- width B
- 36 mm
- sealing
- open
- mass
- 1.36 kg
- net price from
- PLN 173.28
Brands and prices 22309 K
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

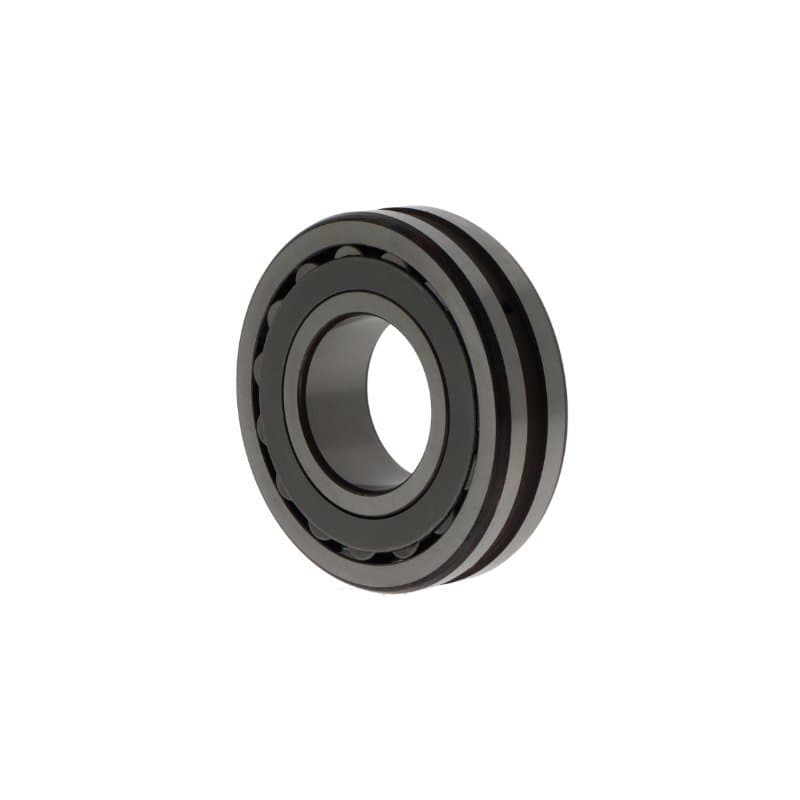

| NKE | 22309 K.EW33tapered bore, taper 1:12, reinforced design, steel cage (NSK) | CN | PLN 173.28PLN 213.13 gross | supplier stockdispatch in 2 working days | |
| INNE | 22309 K.EXQW33C3tapered bore, taper 1:12, reinforced design, higher load rating, lubrication groove and holes in the outer ring | C3 | PLN 176.68PLN 217.32 gross | supplier stockdispatch in 2 working days | |
| NKE | 22309 K.EW33C3tapered bore, taper 1:12, reinforced design, steel cage (NSK) | CN | PLN 183.44PLN 225.63 gross | supplier stockdispatch in 2 working days | |
| NSK | 22309 EAKE4pressed steel cage, high-capacity design (NSK), tapered bore, taper 1:12, reinforced design, higher load rating | CN | PLN 217.07PLN 267.00 gross | supplier stockdispatch in 2 working days | |
| NSK | 22309 EAKE4C3pressed steel cage, high-capacity design (NSK), tapered bore, taper 1:12, reinforced design, higher load rating | CN | PLN 217.13PLN 267.07 gross | supplier stockdispatch in 2 working days | |
| NTN | 22309 K.EAW33tapered bore, taper 1:12, pressed steel cage, high-capacity design (NSK), lubrication groove and holes in the outer ring | CN | PLN 221.34PLN 272.25 gross | supplier stockdispatch in 2 working days | |
| NTN | 22309 K.EAW33C3tapered bore, taper 1:12, pressed steel cage, high-capacity design (NSK), lubrication groove and holes in the outer ring | C3 | PLN 221.34PLN 272.25 gross | supplier stockdispatch in 2 working days | |
| FAG | 22309 K.E1tapered bore, taper 1:12, reinforced design E1 (FAG) | CN | PLN 222.37PLN 273.52 gross | supplier stockdispatch in 2 working days | |
| FAG | 22309 K.E1C3tapered bore, taper 1:12, reinforced design E1 (FAG) | C3 | PLN 233.66PLN 287.40 gross | supplier stockdispatch in 2 working days | |
| TIMKEN | 22309 KEJW33tapered bore, taper 1:12, pressed steel cage (Timken), lubrication groove and holes in the outer ring | CN | PLN 239.82PLN 294.98 gross | supplier stockdispatch in 2 working days | |
| FAG | 22309-E1-XL-K-C4reinforced design E1 (FAG), tapered bore, taper 1:12 | C4 | PLN 245.27PLN 301.68 gross | supplier stockdispatch in 2 working days | |
| TIMKEN | 22309 KEJW33C3tapered bore, taper 1:12, pressed steel cage (Timken), lubrication groove and holes in the outer ring | C3 | PLN 259.80PLN 319.55 gross | supplier stockdispatch in 2 working days | |
| SKF | 22309 K.EC3tapered bore, taper 1:12, reinforced design, higher load rating | C3 | PLN 318.76PLN 392.07 gross | supplier stockdispatch in 2 working days | |
| SKF | 22309 K.Etapered bore, taper 1:12, reinforced design, higher load rating | CN | PLN 326.16PLN 401.18 gross | supplier stockdispatch in 2 working days | |
| SNR | 22309 K.EF800tapered bore, taper 1:12, reinforced design, higher load rating | CN | PLN 443.17PLN 545.10 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 22309
The same size in another design – open, shielded, tapered bore.
How manufacturers designate 22309 K
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| FAG | 22309 K.E1 | Open |
| NKE | 22309 K.EW33 | Open |
| NSK | 22309 EAKE4 | Open |
| NTN | 22309 K.EAW33 | Open |
| TIMKEN | 22309 KEJW33 | Open |
| SKF | 22309 K.EC3 | Open |
| INNE | 22309 K.EXQW33C3 | Open |
| SNR | 22309 K.EF800 | Open |
Questions about 22309 K
What are the dimensions of bearing 22309 K?
Bore 45 mm, outside diameter 100 mm, width 36 mm. Standardised dimensions – the same for every manufacturer.
Are 22309 K bearings from different brands interchangeable?
Yes. 22309 K.E1 FAG, 22309 K.EW33 NKE, 22309 EAKE4 NSK, 22309 K.EAW33 NTN, 22309 KEJW33 TIMKEN are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 22309 K cost?
At Castomer from PLN 173.28 to PLN 443.17 net per piece depending on the manufacturer (FAG, NKE, NSK, NTN, TIMKEN, SKF). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 22309 K?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
