Spherical roller bearing 22316 K – 80×170×58 mm
20 offers · 7 manufacturers · net prices from PLN 489.19 · dispatch in 2 working days
22316 K is a spherical roller bearing with a 80 mm bore, 170 mm outside diameter and 58 mm width, open design (no seals) – for externally lubricated arrangements with a tapered bore (K) for adapter sleeve mounting. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 80 mm
- outside D
- 170 mm
- width B
- 58 mm
- sealing
- open
- mass
- 6.04 kg
- net price from
- PLN 489.19
Brands and prices 22316 K
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

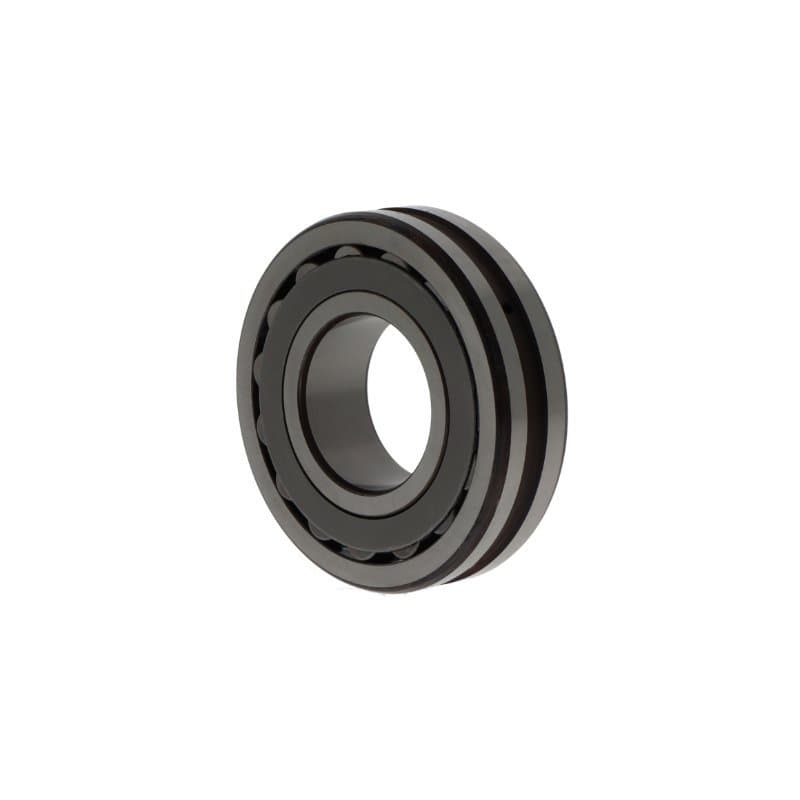

| NKE | 22316 K.EW33tapered bore, taper 1:12, reinforced design, steel cage (NSK) | CN | PLN 489.19PLN 601.70 gross | supplier stockdispatch in 2 working days | |
| NACHI | 22316 EXQW33KC3reinforced design, higher load rating, lubrication groove and holes in the outer ring, tapered bore, taper 1:12 | C3 | PLN 498.80PLN 613.52 gross | supplier stockdispatch in 2 working days | |
| NACHI | 22316 EXQW33Kreinforced design, higher load rating, lubrication groove and holes in the outer ring, tapered bore, taper 1:12 | CN | PLN 498.80PLN 613.52 gross | supplier stockdispatch in 2 working days | |
| TIMKEN | 22316 KEJW33tapered bore, taper 1:12, pressed steel cage (Timken), lubrication groove and holes in the outer ring | CN | PLN 535.95PLN 659.22 gross | supplier stockdispatch in 2 working days | |
| FAG | 22316 K.E1tapered bore, taper 1:12, reinforced design E1 (FAG) | CN | PLN 605.50PLN 744.77 gross | supplier stockdispatch in 2 working days | |
| FAG | 22316 K.E1C3tapered bore, taper 1:12, reinforced design E1 (FAG) | C3 | PLN 605.50PLN 744.77 gross | supplier stockdispatch in 2 working days | |
| NSK | 22316 K.EAE4C3tapered bore, taper 1:12, pressed steel cage, high-capacity design (NSK), reinforced design, higher load rating | CN | PLN 612.85PLN 753.81 gross | supplier stockdispatch in 2 working days | |
| NSK | 22316 K.EAE4tapered bore, taper 1:12, pressed steel cage, high-capacity design (NSK), reinforced design, higher load rating | CN | PLN 612.85PLN 753.81 gross | supplier stockdispatch in 2 working days | |
| TIMKEN | 22316 KEJW33C3tapered bore, taper 1:12, pressed steel cage (Timken), lubrication groove and holes in the outer ring | C3 | PLN 620.57PLN 763.30 gross | supplier stockdispatch in 2 working days | |
| NTN | 22316 K.EAW33C3tapered bore, taper 1:12, pressed steel cage, high-capacity design (NSK), lubrication groove and holes in the outer ring | C3 | PLN 624.89PLN 768.61 gross | supplier stockdispatch in 2 working days | |
| NKE | 22316 K.EW33C3tapered bore, taper 1:12, reinforced design, steel cage (NSK) | CN | PLN 704.42PLN 866.44 gross | supplier stockdispatch in 2 working days | |
| NSK | 22316 ECAMKE4C3reinforced EC design, more rollers (SKF), machined brass cage, tapered bore, taper 1:12, reinforced design, higher load rating | CN | PLN 704.81PLN 866.92 gross | supplier stockdispatch in 2 working days | |
| FAG | 22316 K.E1T41Atapered bore, taper 1:12, reinforced design E1 (FAG) | CN | PLN 726.41PLN 893.48 gross | supplier stockdispatch in 2 working days | |
| FAG | 22316 K.E1AMtapered bore, taper 1:12, reinforced design E1 (FAG), machined brass cage | CN | PLN 807.78PLN 993.57 gross | supplier stockdispatch in 2 working days | |
| FAG | 22316 K.E1AMC3tapered bore, taper 1:12, reinforced design E1 (FAG), machined brass cage | C3 | PLN 834.67PLN 1,026.64 gross | supplier stockdispatch in 2 working days | |
| SKF | 22316 K.Etapered bore, taper 1:12, reinforced design, higher load rating | CN | PLN 858.01PLN 1,055.35 gross | supplier stockdispatch in 2 working days | |
| FAG | 22316-E1A-XL-K-M-C4reinforced design E1 (FAG), tapered bore, taper 1:12, machined brass cage | C4 | PLN 877.33PLN 1,079.12 gross | supplier stockdispatch in 2 working days | |
| SKF | 22316 K.EC3tapered bore, taper 1:12, reinforced design, higher load rating | C3 | PLN 878.90PLN 1,081.05 gross | supplier stockdispatch in 2 working days | |
| SKF | 22316 K.EC4tapered bore, taper 1:12, reinforced design, higher load rating | C4 | PLN 943.81PLN 1,160.89 gross | supplier stockdispatch in 2 working days | |
| FAG | 22316 K.E1AMAT41Atapered bore, taper 1:12, reinforced design E1 (FAG), machined brass cage, outer ring centred | CN | PLN 1,002.51PLN 1,233.09 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 22316
The same size in another design – open, shielded, tapered bore.
How manufacturers designate 22316 K
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| FAG | 22316 K.E1 | Open |
| NSK | 22316 K.EAE4C3 | Open |
| SKF | 22316 K.E | Open |
| NKE | 22316 K.EW33 | Open |
| NACHI | 22316 EXQW33KC3 | Open |
| TIMKEN | 22316 KEJW33 | Open |
| NTN | 22316 K.EAW33C3 | Open |
Questions about 22316 K
What are the dimensions of bearing 22316 K?
Bore 80 mm, outside diameter 170 mm, width 58 mm. Standardised dimensions – the same for every manufacturer.
Are 22316 K bearings from different brands interchangeable?
Yes. 22316 K.E1 FAG, 22316 K.EAE4C3 NSK, 22316 K.E SKF, 22316 K.EW33 NKE, 22316 EXQW33KC3 NACHI are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 22316 K cost?
At Castomer from PLN 489.19 to PLN 1,002.51 net per piece depending on the manufacturer (FAG, NSK, SKF, NKE, NACHI, TIMKEN). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 22316 K?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
