Spherical roller bearing 22320 K – 100×215×73 mm
20 offers · 8 manufacturers · net prices from PLN 910.82 · dispatch in 2 working days
22320 K is a spherical roller bearing with a 100 mm bore, 215 mm outside diameter and 73 mm width, open design (no seals) – for externally lubricated arrangements with a tapered bore (K) for adapter sleeve mounting. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 100 mm
- outside D
- 215 mm
- width B
- 73 mm
- sealing
- open
- mass
- 12.59 kg
- net price from
- PLN 910.82
Brands and prices 22320 K
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

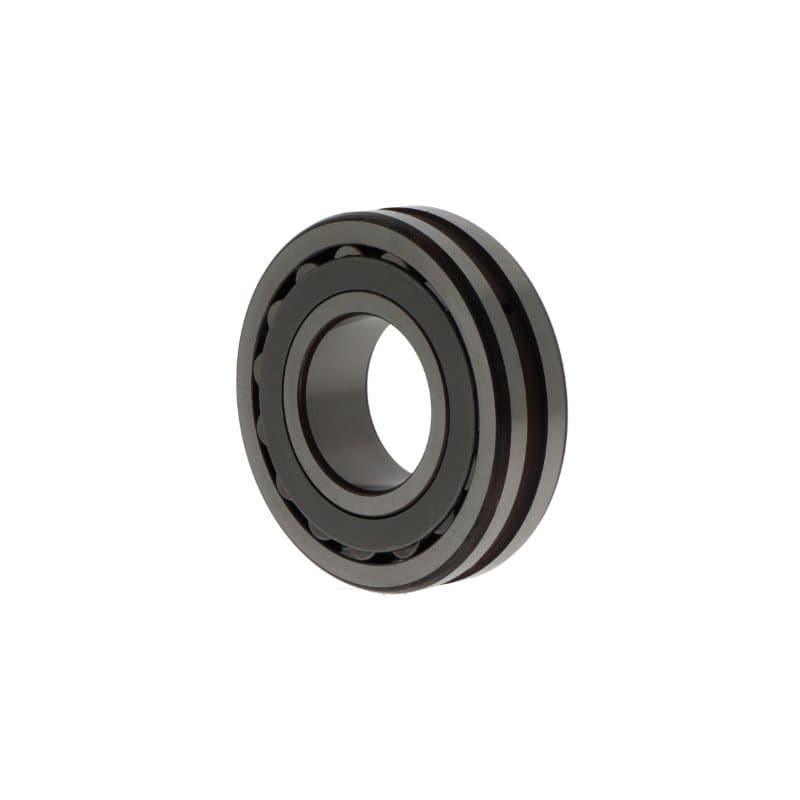

| NKE | 22320 K.EW33tapered bore, taper 1:12, reinforced design, steel cage (NSK) | CN | PLN 910.82PLN 1,120.31 gross | supplier stockdispatch in 2 working days | |
| NACHI | 22320 EXQW33KC3reinforced design, higher load rating, lubrication groove and holes in the outer ring, tapered bore, taper 1:12 | C3 | PLN 911.31PLN 1,120.91 gross | supplier stockdispatch in 2 working days | |
| NTN | 22320 K.EAW33tapered bore, taper 1:12, pressed steel cage, high-capacity design (NSK), lubrication groove and holes in the outer ring | CN | PLN 994.46PLN 1,223.19 gross | supplier stockdispatch in 2 working days | |
| FAG | 22320 K.E1tapered bore, taper 1:12, reinforced design E1 (FAG) | CN | PLN 1,135.24PLN 1,396.35 gross | supplier stockdispatch in 2 working days | |
| FAG | 22320 K.E1C3tapered bore, taper 1:12, reinforced design E1 (FAG) | C3 | PLN 1,135.24PLN 1,396.35 gross | supplier stockdispatch in 2 working days | |
| NSK | 22320 K.EAE4C3tapered bore, taper 1:12, pressed steel cage, high-capacity design (NSK), reinforced design, higher load rating | CN | PLN 1,146.37PLN 1,410.04 gross | supplier stockdispatch in 2 working days | |
| NSK | 22320 K.EAE4tapered bore, taper 1:12, pressed steel cage, high-capacity design (NSK), reinforced design, higher load rating | CN | PLN 1,146.37PLN 1,410.04 gross | supplier stockdispatch in 2 working days | |
| FAG | 22320 K.E1C4tapered bore, taper 1:12, reinforced design E1 (FAG) | C4 | PLN 1,192.16PLN 1,466.36 gross | supplier stockdispatch in 2 working days | |
| TIMKEN | 22320 KEJW33tapered bore, taper 1:12, pressed steel cage (Timken), lubrication groove and holes in the outer ring | CN | PLN 1,220.18PLN 1,500.82 gross | supplier stockdispatch in 2 working days | |
| TIMKEN | 22320 KEJW33C3tapered bore, taper 1:12, pressed steel cage (Timken), lubrication groove and holes in the outer ring | C3 | PLN 1,220.18PLN 1,500.82 gross | supplier stockdispatch in 2 working days | |
| NSK | 22320 K.CAME4tapered bore, taper 1:12, machined brass cage CA, modified (SKF), reinforced design, higher load rating | CN | PLN 1,318.30PLN 1,621.51 gross | supplier stockdispatch in 2 working days | |
| NSK | 22320 CAMKE4C3machined brass cage CA, modified (SKF), tapered bore, taper 1:12, reinforced design, higher load rating | CN | PLN 1,318.30PLN 1,621.51 gross | supplier stockdispatch in 2 working days | |
| FAG | 22320-E1A-XL-K-M-C3reinforced design E1 (FAG), tapered bore, taper 1:12, machined brass cage | C3 | PLN 1,347.84PLN 1,657.84 gross | supplier stockdispatch in 2 working days | |
| FAG | 22320 K.E1T41Atapered bore, taper 1:12, reinforced design E1 (FAG) | CN | PLN 1,362.74PLN 1,676.17 gross | supplier stockdispatch in 2 working days | |
| FAG | 22320 K.E1AMtapered bore, taper 1:12, reinforced design E1 (FAG), machined brass cage | CN | PLN 1,468.85PLN 1,806.69 gross | supplier stockdispatch in 2 working days | |
| SKF | 22320 K.Etapered bore, taper 1:12, reinforced design, higher load rating | CN | PLN 1,613.63PLN 1,984.76 gross | supplier stockdispatch in 2 working days | |
| FAG | 22320-E1A-XL-K-MA-T41Areinforced design E1 (FAG), tapered bore, taper 1:12, machined brass cage, outer ring centred | CN | PLN 1,618.93PLN 1,991.28 gross | supplier stockdispatch in 2 working days | |
| SKF | 22320 K.EC4tapered bore, taper 1:12, reinforced design, higher load rating | C4 | PLN 1,726.65PLN 2,123.78 gross | supplier stockdispatch in 2 working days | |
| SNR | 22320 K.EF800tapered bore, taper 1:12, reinforced design, higher load rating | CN | PLN 1,774.23PLN 2,182.30 gross | supplier stockdispatch in 2 working days | |
| SKF | 22320 EK/C3reinforced design, higher load rating, tapered bore, taper 1:12 | C3 | PLN 1,952.10PLN 2,401.08 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 22320
The same size in another design – open, shielded, tapered bore.
How manufacturers designate 22320 K
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| FAG | 22320 K.E1 | Open |
| NSK | 22320 K.EAE4C3 | Open |
| SKF | 22320 K.E | Open |
| TIMKEN | 22320 KEJW33 | Open |
| NKE | 22320 K.EW33 | Open |
| NACHI | 22320 EXQW33KC3 | Open |
| NTN | 22320 K.EAW33 | Open |
| SNR | 22320 K.EF800 | Open |
Questions about 22320 K
What are the dimensions of bearing 22320 K?
Bore 100 mm, outside diameter 215 mm, width 73 mm. Standardised dimensions – the same for every manufacturer.
Are 22320 K bearings from different brands interchangeable?
Yes. 22320 K.E1 FAG, 22320 K.EAE4C3 NSK, 22320 K.E SKF, 22320 KEJW33 TIMKEN, 22320 K.EW33 NKE are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 22320 K cost?
At Castomer from PLN 910.82 to PLN 1,952.10 net per piece depending on the manufacturer (FAG, NSK, SKF, TIMKEN, NKE, NACHI). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 22320 K?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
