Spherical roller bearing 22330 K – 150×320×108 mm
14 offers · 6 manufacturers · net prices from PLN 3,011.26 · dispatch in 2 working days

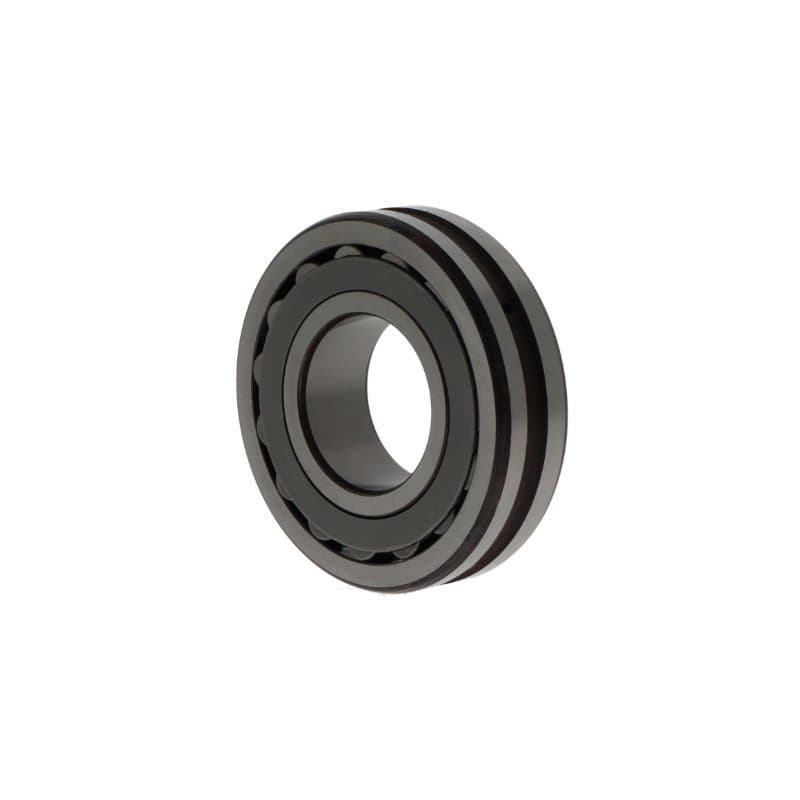

22330 K is a spherical roller bearing with a 150 mm bore, 320 mm outside diameter and 108 mm width, open design (no seals) – for externally lubricated arrangements with a tapered bore (K) for adapter sleeve mounting. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 150 mm
- outside D
- 320 mm
- width B
- 108 mm
- sealing
- open
- mass
- 41.2 kg
- net price from
- PLN 3,011.26
Brands and prices 22330 K
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|
| NKE | 22330-CE-K-W33reinforced design, higher load rating, tapered bore, taper 1:12, lubrication groove and holes in the outer ring | CN | PLN 3,011.26PLN 3,703.85 gross | supplier stockdispatch in 2 working days | |
| NKE | 22330-CE-K-C3-W33reinforced design, higher load rating, tapered bore, taper 1:12, lubrication groove and holes in the outer ring | C3 | PLN 3,011.26PLN 3,703.85 gross | supplier stockdispatch in 2 working days | |
| TIMKEN | 22330 KEJW33C3tapered bore, taper 1:12, pressed steel cage (Timken), lubrication groove and holes in the outer ring | C3 | PLN 3,194.30PLN 3,928.99 gross | supplier stockdispatch in 2 working days | |
| FAG | 22330 K.E1tapered bore, taper 1:12, reinforced design E1 (FAG) | CN | PLN 3,462.80PLN 4,259.24 gross | supplier stockdispatch in 2 working days | |
| FAG | 22330 K.E1C3tapered bore, taper 1:12, reinforced design E1 (FAG) | C3 | PLN 3,462.80PLN 4,259.24 gross | supplier stockdispatch in 2 working days | |
| FAG | 22330 K.E1C4tapered bore, taper 1:12, reinforced design E1 (FAG) | C4 | PLN 3,518.90PLN 4,328.25 gross | supplier stockdispatch in 2 working days | |
| NSK | 22330 CAMKE4S11machined brass cage CA, modified (SKF), tapered bore, taper 1:12, reinforced design, higher load rating | CN | PLN 3,642.85PLN 4,480.71 gross | supplier stockdispatch in 2 working days | |
| NSK | 22330 CAMKE4C3S11machined brass cage CA, modified (SKF), tapered bore, taper 1:12, reinforced design, higher load rating | CN | PLN 3,642.89PLN 4,480.75 gross | supplier stockdispatch in 2 working days | |
| KOYO | 22330 RHAKW33C3tapered bore, taper 1:12, lubrication groove and holes in the outer ring | C3 | PLN 3,900.05PLN 4,797.06 gross | supplier stockdispatch in 2 working days | |
| FAG | 22330-E1A-XL-K-Mreinforced design E1 (FAG), tapered bore, taper 1:12, machined brass cage | CN | PLN 4,113.25PLN 5,059.30 gross | supplier stockdispatch in 2 working days | |
| FAG | 22330 K.E1T41Atapered bore, taper 1:12, reinforced design E1 (FAG) | CN | PLN 4,154.06PLN 5,109.49 gross | supplier stockdispatch in 2 working days | |
| SKF | 22330 K.CCC3W33tapered bore, taper 1:12, pressed steel window-type cage (SKF), lubrication groove and holes in the outer ring | C3 | PLN 4,874.95PLN 5,996.19 gross | supplier stockdispatch in 2 working days | |
| SKF | 22330 K.CCW33tapered bore, taper 1:12, pressed steel window-type cage (SKF), lubrication groove and holes in the outer ring | CN | PLN 5,145.80PLN 6,329.33 gross | supplier stockdispatch in 2 working days | |
| SKF | 22330 K.CCC4W33tapered bore, taper 1:12, pressed steel window-type cage (SKF), lubrication groove and holes in the outer ring | C4 | PLN 5,549.35PLN 6,825.70 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 22330
The same size in another design – open, shielded, tapered bore.
How manufacturers designate 22330 K
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| FAG | 22330 K.E1 | Open |
| SKF | 22330 K.CCC3W33 | Open |
| NKE | 22330-CE-K-W33 | Open |
| NSK | 22330 CAMKE4S11 | Open |
| TIMKEN | 22330 KEJW33C3 | Open |
| KOYO | 22330 RHAKW33C3 | Open |
Questions about 22330 K
What are the dimensions of bearing 22330 K?
Bore 150 mm, outside diameter 320 mm, width 108 mm. Standardised dimensions – the same for every manufacturer.
Are 22330 K bearings from different brands interchangeable?
Yes. 22330 K.E1 FAG, 22330 K.CCC3W33 SKF, 22330-CE-K-W33 NKE, 22330 CAMKE4S11 NSK, 22330 KEJW33C3 TIMKEN are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 22330 K cost?
At Castomer from PLN 3,011.26 to PLN 5,549.35 net per piece depending on the manufacturer (FAG, SKF, NKE, NSK, TIMKEN, KOYO). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 22330 K?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
