Spherical roller bearing 23024 K – 120×180×46 mm
12 offers · 5 manufacturers · net prices from PLN 574.67 · dispatch in 2 working days
23024 K is a spherical roller bearing with a 120 mm bore, 180 mm outside diameter and 46 mm width, open design (no seals) – for externally lubricated arrangements with a tapered bore (K) for adapter sleeve mounting. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 120 mm
- outside D
- 180 mm
- width B
- 46 mm
- sealing
- open
- mass
- 3.8 kg
- net price from
- PLN 574.67
Brands and prices 23024 K
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

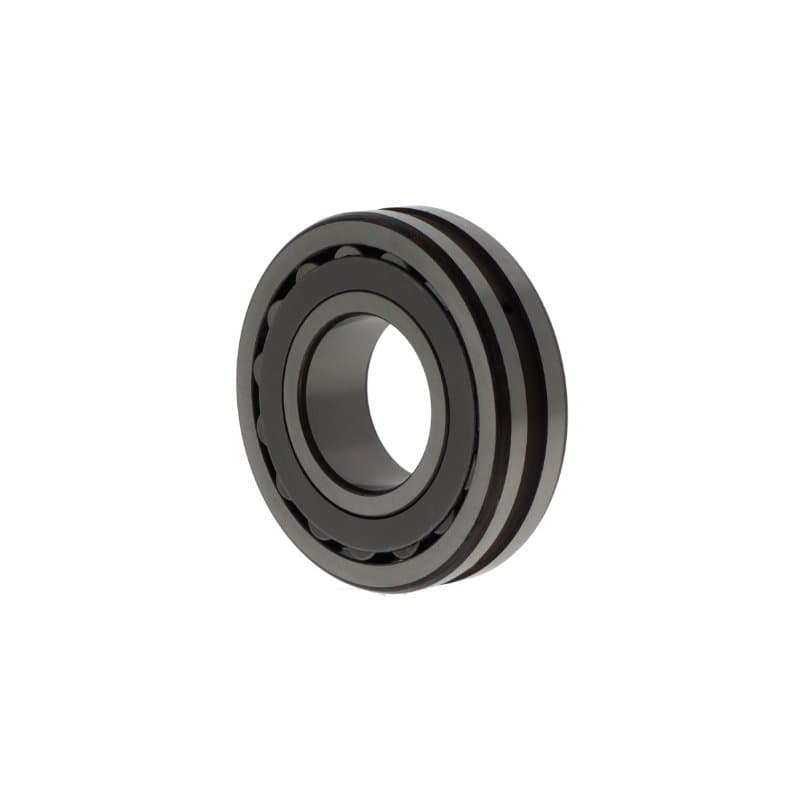

| NACHI | 23024 K.EXQW33C3tapered bore, taper 1:12, reinforced design, higher load rating, lubrication groove and holes in the outer ring | C3 | PLN 574.67PLN 706.84 gross | supplier stockdispatch in 2 working days | |
| NACHI | 23024 K.EXQW33tapered bore, taper 1:12, reinforced design, higher load rating, lubrication groove and holes in the outer ring | CN | PLN 574.67PLN 706.84 gross | supplier stockdispatch in 2 working days | |
| FAG | 23024 K.E1TVPBtapered bore, taper 1:12, reinforced design E1 (FAG), polyamide window cage, ball centred (FAG) | CN | PLN 696.76PLN 857.01 gross | supplier stockdispatch in 2 working days | |
| NSK | 23024 CDK4EC3S11tapered bore, taper 1:12 | C3 | PLN 711.88PLN 875.61 gross | supplier stockdispatch in 2 working days | |
| NSK | 23024 CDKE4S11tapered bore, taper 1:12, reinforced design, higher load rating | CN | PLN 711.88PLN 875.61 gross | supplier stockdispatch in 2 working days | |
| FAG | 23024 K.E1AMtapered bore, taper 1:12, reinforced design E1 (FAG), machined brass cage | CN | PLN 731.16PLN 899.33 gross | supplier stockdispatch in 2 working days | |
| TIMKEN | 23024 KEJW33C3tapered bore, taper 1:12, pressed steel cage (Timken), lubrication groove and holes in the outer ring | C3 | PLN 740.17PLN 910.41 gross | supplier stockdispatch in 2 working days | |
| TIMKEN | 23024 KEJW33tapered bore, taper 1:12, pressed steel cage (Timken), lubrication groove and holes in the outer ring | CN | PLN 740.17PLN 910.41 gross | supplier stockdispatch in 2 working days | |
| FAG | 23024 K.E1AMC4tapered bore, taper 1:12, reinforced design E1 (FAG), machined brass cage | C4 | PLN 767.88PLN 944.49 gross | supplier stockdispatch in 2 working days | |
| NSK | 23024 CAMKE4C3S11machined brass cage CA, modified (SKF), tapered bore, taper 1:12, reinforced design, higher load rating | CN | PLN 818.63PLN 1,006.91 gross | supplier stockdispatch in 2 working days | |
| SKF | 23024 K.CCW33tapered bore, taper 1:12, pressed steel window-type cage (SKF), lubrication groove and holes in the outer ring | CN | PLN 953.27PLN 1,172.52 gross | supplier stockdispatch in 2 working days | |
| SKF | 23024 K.CCC3W33tapered bore, taper 1:12, pressed steel window-type cage (SKF), lubrication groove and holes in the outer ring | C3 | PLN 979.72PLN 1,205.06 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 23024
The same size in another design – open, shielded, tapered bore.
How manufacturers designate 23024 K
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| FAG | 23024 K.E1TVPB | Open |
| NSK | 23024 CDK4EC3S11 | Open |
| NACHI | 23024 K.EXQW33C3 | Open |
| TIMKEN | 23024 KEJW33C3 | Open |
| SKF | 23024 K.CCW33 | Open |
Questions about 23024 K
What are the dimensions of bearing 23024 K?
Bore 120 mm, outside diameter 180 mm, width 46 mm. Standardised dimensions – the same for every manufacturer.
Are 23024 K bearings from different brands interchangeable?
Yes. 23024 K.E1TVPB FAG, 23024 CDK4EC3S11 NSK, 23024 K.EXQW33C3 NACHI, 23024 KEJW33C3 TIMKEN, 23024 K.CCW33 SKF are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 23024 K cost?
At Castomer from PLN 574.67 to PLN 979.72 net per piece depending on the manufacturer (FAG, NSK, NACHI, TIMKEN, SKF). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 23024 K?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
