Spherical roller bearing 23068 K – 340×520×133 mm
6 offers · 3 manufacturers · net prices from PLN 8,569.70 · dispatch in 2 working days
23068 K is a spherical roller bearing with a 340 mm bore, 520 mm outside diameter and 133 mm width, open design (no seals) – for externally lubricated arrangements with a tapered bore (K) for adapter sleeve mounting. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 340 mm
- outside D
- 520 mm
- width B
- 133 mm
- sealing
- open
- mass
- 97.4 kg
- net price from
- PLN 8,569.70
Brands and prices 23068 K
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

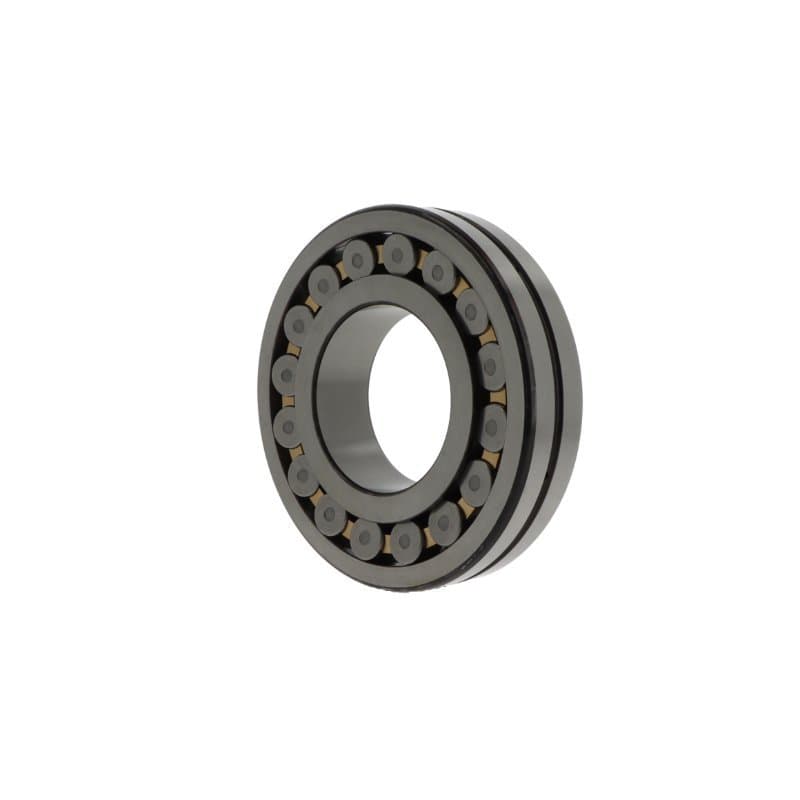

| STEYR | 23068 CA.K.C3.W33machined brass cage, roller centred (SKF), tapered bore, taper 1:12, lubrication groove and holes in the outer ring | C3 | PLN 8,569.70PLN 10,540.73 gross | supplier stockdispatch in 2 working days | |
| STEYR | 23068 ECAK/W33reinforced EC design, more rollers (SKF), tapered bore, taper 1:12, lubrication groove and holes in the outer ring | CN | PLN 8,569.70PLN 10,540.73 gross | supplier stockdispatch in 2 working days | |
| FAG | 23068-BEA-XL-K-MB140° contact angle, reinforced design, tapered bore, taper 1:12, machined brass cage, inner ring centred | CN | PLN 9,939.25PLN 12,225.28 gross | supplier stockdispatch in 2 working days | |
| SKF | 23068 CCK/W33pressed steel window-type cage (SKF), tapered bore, taper 1:12, lubrication groove and holes in the outer ring | CN | PLN 10,751.15PLN 13,223.91 gross | supplier stockdispatch in 2 working days | |
| SKF | 23068 K.CCC3W33tapered bore, taper 1:12, pressed steel window-type cage (SKF), lubrication groove and holes in the outer ring | C3 | PLN 11,026.80PLN 13,562.96 gross | supplier stockdispatch in 2 working days | |
| SKF | 23068 CCK/C4W33pressed steel window-type cage (SKF), tapered bore, taper 1:12, lubrication groove and holes in the outer ring | C4 | PLN 11,809.75PLN 14,525.99 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 23068
The same size in another design – open, shielded, tapered bore.
How manufacturers designate 23068 K
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| SKF | 23068 CCK/W33 | Open |
| STEYR | 23068 CA.K.C3.W33 | Open |
| FAG | 23068-BEA-XL-K-MB1 | Open |
Questions about 23068 K
What are the dimensions of bearing 23068 K?
Bore 340 mm, outside diameter 520 mm, width 133 mm. Standardised dimensions – the same for every manufacturer.
Are 23068 K bearings from different brands interchangeable?
Yes. 23068 CCK/W33 SKF, 23068 CA.K.C3.W33 STEYR, 23068-BEA-XL-K-MB1 FAG are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 23068 K cost?
At Castomer from PLN 8,569.70 to PLN 11,809.75 net per piece depending on the manufacturer (SKF, STEYR, FAG). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 23068 K?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
