Spherical roller bearing 23080 K – 400×600×148 mm
5 offers · 3 manufacturers · net prices from PLN 13,297.20 · dispatch in 2 working days
23080 K is a spherical roller bearing with a 400 mm bore, 600 mm outside diameter and 148 mm width, open design (no seals) – for externally lubricated arrangements with a tapered bore (K) for adapter sleeve mounting. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 400 mm
- outside D
- 600 mm
- width B
- 148 mm
- sealing
- open
- net price from
- PLN 13,297.20
Brands and prices 23080 K
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

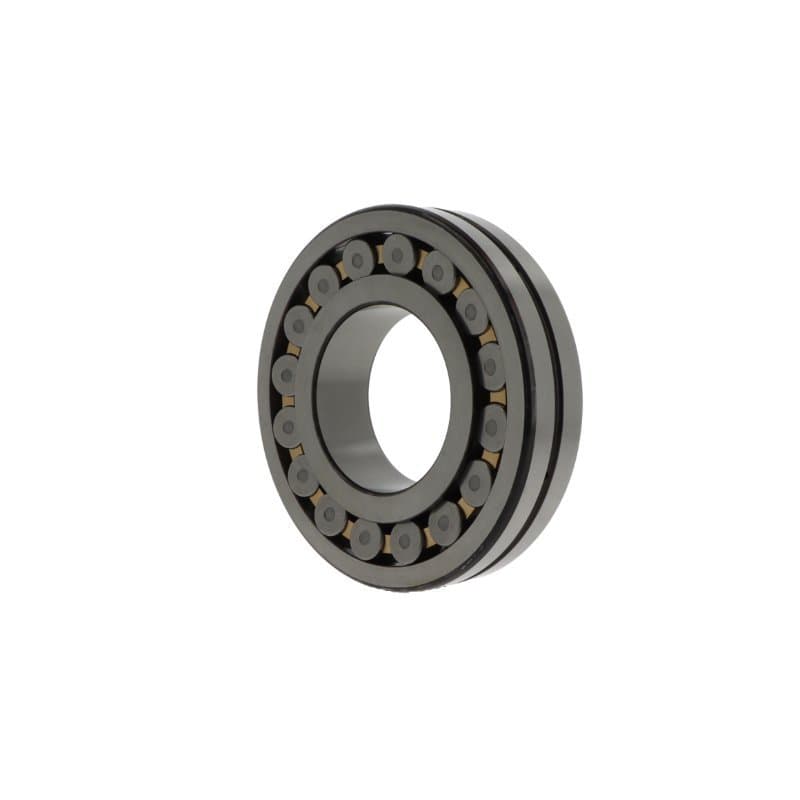

| STEYR | 23080 CA.K.C3.W33machined brass cage, roller centred (SKF), tapered bore, taper 1:12, lubrication groove and holes in the outer ring | C3 | PLN 13,297.20PLN 16,355.56 gross | supplier stockdispatch in 2 working days | |
| STEYR | 23080 ECAK/W33reinforced EC design, more rollers (SKF), tapered bore, taper 1:12, lubrication groove and holes in the outer ring | CN | PLN 13,297.24PLN 16,355.61 gross | supplier stockdispatch in 2 working days | |
| FAG | 23080 K.BEAMB1tapered bore, taper 1:12, 40° contact angle, reinforced design, machined brass cage, inner ring centred | CN | PLN 16,833.95PLN 20,705.76 gross | supplier stockdispatch in 2 working days | |
| FAG | 23080 K.BEAMB1C3tapered bore, taper 1:12, 40° contact angle, reinforced design, machined brass cage, inner ring centred | CN | PLN 17,395.11PLN 21,395.99 gross | supplier stockdispatch in 2 working days | |
| SKF | 23080 CCK/W33pressed steel window-type cage (SKF), tapered bore, taper 1:12, lubrication groove and holes in the outer ring | CN | PLN 21,710.11PLN 26,703.44 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 23080
The same size in another design – open, shielded, tapered bore.
How manufacturers designate 23080 K
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| STEYR | 23080 CA.K.C3.W33 | Open |
| FAG | 23080 K.BEAMB1 | Open |
| SKF | 23080 CCK/W33 | Open |
Questions about 23080 K
What are the dimensions of bearing 23080 K?
Bore 400 mm, outside diameter 600 mm, width 148 mm. Standardised dimensions – the same for every manufacturer.
Are 23080 K bearings from different brands interchangeable?
Yes. 23080 CA.K.C3.W33 STEYR, 23080 K.BEAMB1 FAG, 23080 CCK/W33 SKF are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 23080 K cost?
At Castomer from PLN 13,297.20 to PLN 21,710.11 net per piece depending on the manufacturer (STEYR, FAG, SKF). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 23080 K?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
