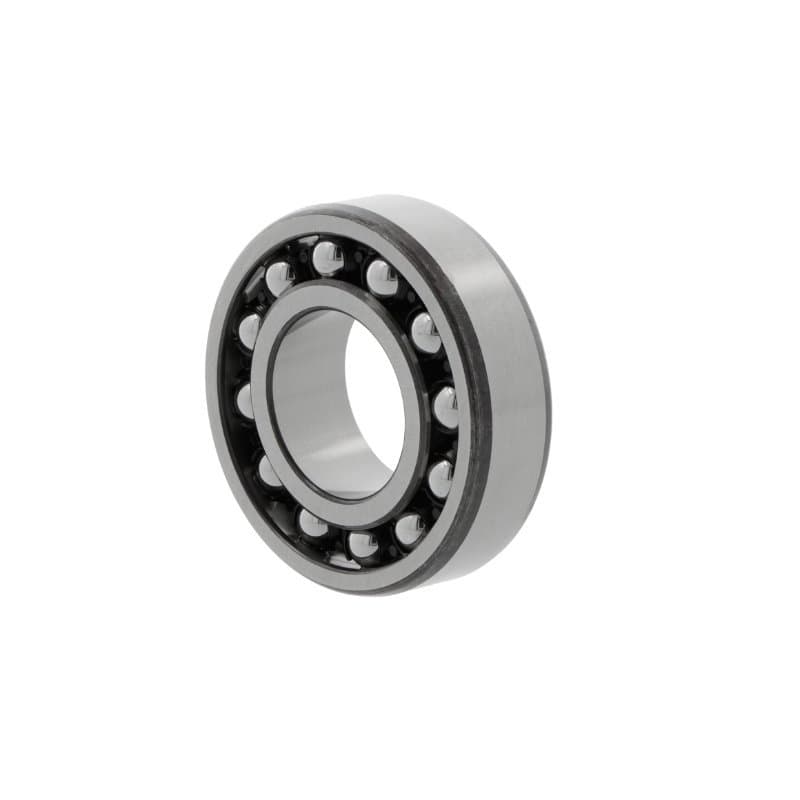

Self-aligning ball bearing 2309 K – 45×100×36 mm
11 offers · 6 manufacturers · net prices from PLN 130.14 · dispatch in 2 working days
2309 K is a self-aligning ball bearing with a 45 mm bore, 100 mm outside diameter and 36 mm width, open design (no seals) – for externally lubricated arrangements with a tapered bore (K) for adapter sleeve mounting. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 45 mm
- outside D
- 100 mm
- width B
- 36 mm
- sealing
- open
- net price from
- PLN 130.14
Brands and prices 2309 K
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|
| NKE | 2309 K.TVC3tapered bore, taper 1:12, glass-fibre reinforced polyamide cage (FAG) | C3 | PLN 130.14PLN 160.07 gross | supplier stockdispatch in 2 working days | |
| NKE | 2309 K.TVtapered bore, taper 1:12, glass-fibre reinforced polyamide cage (FAG) | CN | PLN 130.14PLN 160.07 gross | supplier stockdispatch in 2 working days | |
| NACHI | 2309 GKtapered bore, taper 1:12 | CN | PLN 144.23PLN 177.40 gross | supplier stockdispatch in 2 working days | |
| NACHI | 2309 GKC3tapered bore, taper 1:12 | C3 | PLN 144.23PLN 177.40 gross | supplier stockdispatch in 2 working days | |
| KOYO | 2309 KMGtapered bore, taper 1:12, machined brass cage | CN | PLN 165.29PLN 203.31 gross | supplier stockdispatch in 2 working days | |
| KOYO | 2309 KC3MGtapered bore, taper 1:12, machined brass cage | C3 | PLN 165.29PLN 203.31 gross | supplier stockdispatch in 2 working days | |
| NSK | 2309 Ktapered bore, taper 1:12 | CN | PLN 183.33PLN 225.50 gross | supplier stockdispatch in 2 working days | |
| NSK | 2309 K.C3tapered bore, taper 1:12 | C3 | PLN 183.33PLN 225.50 gross | supplier stockdispatch in 2 working days | |
| FAG | 2309 K.TVC3tapered bore, taper 1:12, glass-fibre reinforced polyamide cage (FAG) | C3 | PLN 205.63PLN 252.92 gross | supplier stockdispatch in 2 working days | |
| SKF | 2309 K.ETN9tapered bore, taper 1:12, reinforced design, higher load rating, glass-fibre reinforced PA66 cage (SKF) | CN | PLN 221.18PLN 272.05 gross | supplier stockdispatch in 2 working days | |
| SKF | 2309 K.ETN9C3tapered bore, taper 1:12, reinforced design, higher load rating, glass-fibre reinforced PA66 cage (SKF) | C3 | PLN 221.18PLN 272.05 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 2309
The same size in another design – open, shielded, tapered bore.
How manufacturers designate 2309 K
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| NKE | 2309 K.TVC3 | Open |
| NACHI | 2309 GK | Open |
| KOYO | 2309 KMG | Open |
| NSK | 2309 K | Open |
| SKF | 2309 K.ETN9 | Open |
| FAG | 2309 K.TVC3 | Open |
Questions about 2309 K
What are the dimensions of bearing 2309 K?
Bore 45 mm, outside diameter 100 mm, width 36 mm. Standardised dimensions – the same for every manufacturer.
Are 2309 K bearings from different brands interchangeable?
Yes. 2309 K.TVC3 NKE, 2309 GK NACHI, 2309 KMG KOYO, 2309 K NSK, 2309 K.ETN9 SKF are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 2309 K cost?
At Castomer from PLN 130.14 to PLN 221.18 net per piece depending on the manufacturer (NKE, NACHI, KOYO, NSK, SKF, FAG). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 2309 K?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
