Spherical roller bearing 23132 K – 160×270×86 mm
14 offers · 4 manufacturers · net prices from PLN 1,883.73 · dispatch in 2 working days
23132 K is a spherical roller bearing with a 160 mm bore, 270 mm outside diameter and 86 mm width, open design (no seals) – for externally lubricated arrangements with a tapered bore (K) for adapter sleeve mounting. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 160 mm
- outside D
- 270 mm
- width B
- 86 mm
- sealing
- open
- mass
- 19 kg
- net price from
- PLN 1,883.73
Brands and prices 23132 K
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

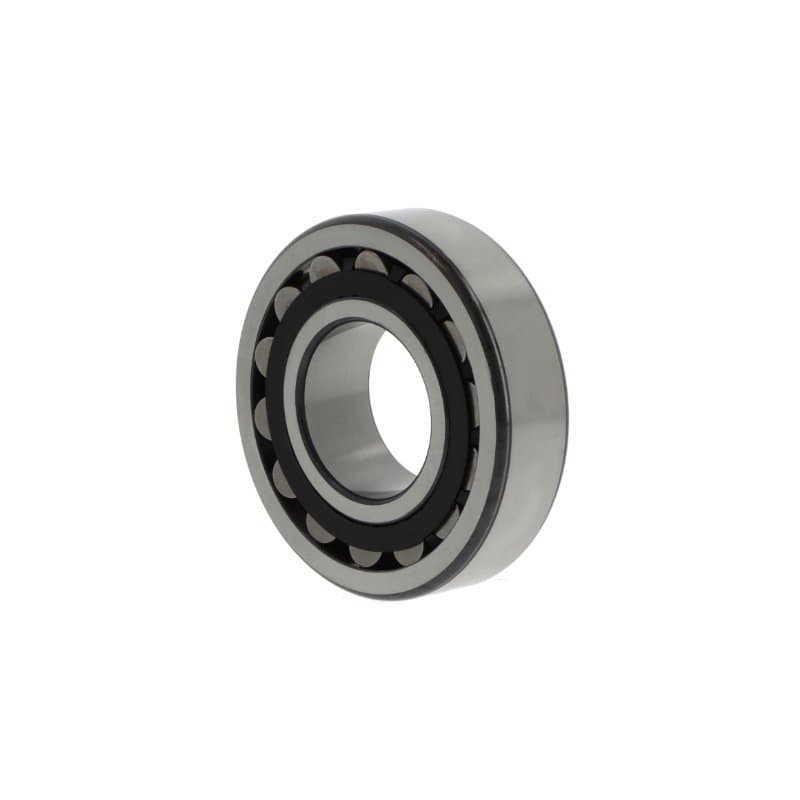

| FAG | 23132 K.E1TVPBC4tapered bore, taper 1:12, reinforced design E1 (FAG), polyamide window cage, ball centred (FAG) | C4 | PLN 1,883.73PLN 2,316.99 gross | supplier stockdispatch in 2 working days | |
| FAG | 23132 K.E1TVPBtapered bore, taper 1:12, reinforced design E1 (FAG), polyamide window cage, ball centred (FAG) | CN | PLN 1,919.70PLN 2,361.23 gross | supplier stockdispatch in 2 working days | |
| FAG | 23132 K.E1TVPBC3tapered bore, taper 1:12, reinforced design E1 (FAG), polyamide window cage, ball centred (FAG) | C3 | PLN 1,983.69PLN 2,439.94 gross | supplier stockdispatch in 2 working days | |
| NSK | 23132 CKE4S11tapered bore, taper 1:12, reinforced design, higher load rating | CN | PLN 2,030.18PLN 2,497.12 gross | supplier stockdispatch in 2 working days | |
| NSK | 23132 CKE4C3S11tapered bore, taper 1:12, reinforced design, higher load rating | CN | PLN 2,030.18PLN 2,497.12 gross | supplier stockdispatch in 2 working days | |
| NTN | 23132 K.EAW33C3tapered bore, taper 1:12, pressed steel cage, high-capacity design (NSK), lubrication groove and holes in the outer ring | C3 | PLN 2,057.24PLN 2,530.41 gross | supplier stockdispatch in 2 working days | |
| NTN | 23132 K.EAW33tapered bore, taper 1:12, pressed steel cage, high-capacity design (NSK), lubrication groove and holes in the outer ring | CN | PLN 2,057.24PLN 2,530.41 gross | supplier stockdispatch in 2 working days | |
| FAG | 23132 K.E1AMC4tapered bore, taper 1:12, reinforced design E1 (FAG), machined brass cage | C4 | PLN 2,081.64PLN 2,560.42 gross | supplier stockdispatch in 2 working days | |
| FAG | 23132 K.E1AMC3tapered bore, taper 1:12, reinforced design E1 (FAG), machined brass cage | C3 | PLN 2,085.59PLN 2,565.28 gross | supplier stockdispatch in 2 working days | |
| NSK | 23132 CAMKE4C3S11machined brass cage CA, modified (SKF), tapered bore, taper 1:12, reinforced design, higher load rating | CN | PLN 2,334.74PLN 2,871.73 gross | supplier stockdispatch in 2 working days | |
| NSK | 23132 CAMKE4S11machined brass cage CA, modified (SKF), tapered bore, taper 1:12, reinforced design, higher load rating | CN | PLN 2,334.74PLN 2,871.73 gross | supplier stockdispatch in 2 working days | |
| SKF | 23132 CCK/C4W33pressed steel window-type cage (SKF), tapered bore, taper 1:12, lubrication groove and holes in the outer ring | C4 | PLN 2,903.52PLN 3,571.33 gross | supplier stockdispatch in 2 working days | |
| SKF | 23132 K.CCW33tapered bore, taper 1:12, pressed steel window-type cage (SKF), lubrication groove and holes in the outer ring | CN | PLN 2,979.93PLN 3,665.31 gross | supplier stockdispatch in 2 working days | |
| SKF | 23132 K.CCC3W33tapered bore, taper 1:12, pressed steel window-type cage (SKF), lubrication groove and holes in the outer ring | C3 | PLN 3,132.76PLN 3,853.29 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 23132
The same size in another design – open, shielded, tapered bore.
How manufacturers designate 23132 K
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| FAG | 23132 K.E1TVPBC4 | Open |
| NSK | 23132 CKE4S11 | Open |
| SKF | 23132 CCK/C4W33 | Open |
| NTN | 23132 K.EAW33C3 | Open |
Questions about 23132 K
What are the dimensions of bearing 23132 K?
Bore 160 mm, outside diameter 270 mm, width 86 mm. Standardised dimensions – the same for every manufacturer.
Are 23132 K bearings from different brands interchangeable?
Yes. 23132 K.E1TVPBC4 FAG, 23132 CKE4S11 NSK, 23132 CCK/C4W33 SKF, 23132 K.EAW33C3 NTN are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 23132 K cost?
At Castomer from PLN 1,883.73 to PLN 3,132.76 net per piece depending on the manufacturer (FAG, NSK, SKF, NTN). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 23132 K?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
