Spherical roller bearing 23138 K – 190×320×104 mm
12 offers · 5 manufacturers · net prices from PLN 2,738.82 · dispatch in 2 working days
23138 K is a spherical roller bearing with a 190 mm bore, 320 mm outside diameter and 104 mm width, open design (no seals) – for externally lubricated arrangements with a tapered bore (K) for adapter sleeve mounting. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 190 mm
- outside D
- 320 mm
- width B
- 104 mm
- sealing
- open
- mass
- 33.2 kg
- net price from
- PLN 2,738.82
Brands and prices 23138 K
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

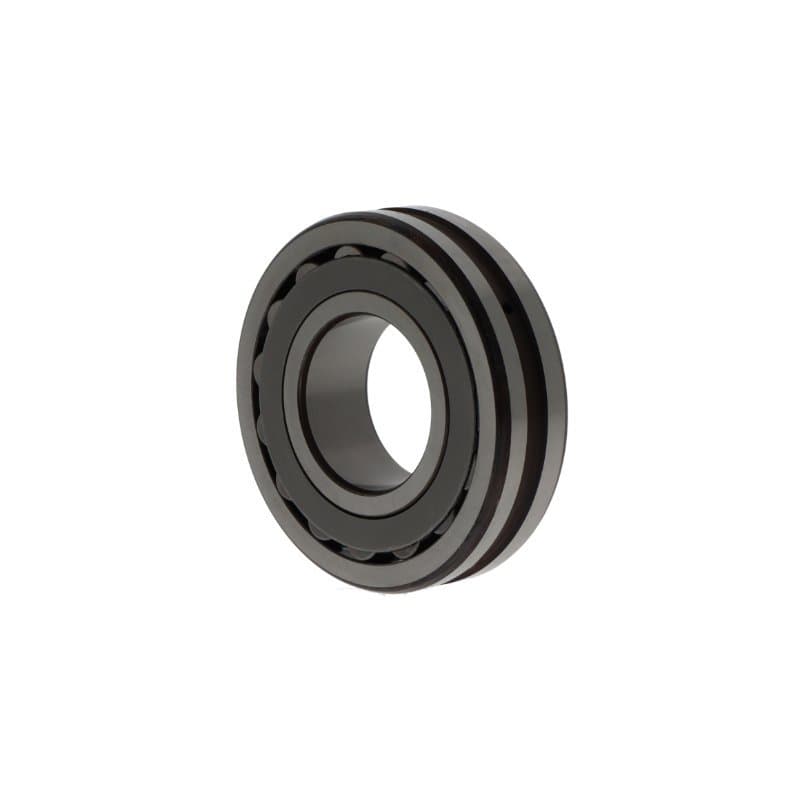

| NKE | 23138-CE-K-C3-W33reinforced design, higher load rating, tapered bore, taper 1:12, lubrication groove and holes in the outer ring | C3 | PLN 2,738.82PLN 3,368.75 gross | supplier stockdispatch in 2 working days | |
| FAG | 23138 K.E1TVPBC4tapered bore, taper 1:12, reinforced design E1 (FAG), polyamide window cage, ball centred (FAG) | C4 | PLN 3,067.53PLN 3,773.06 gross | supplier stockdispatch in 2 working days | |
| FAG | 23138 K.E1AMC3tapered bore, taper 1:12, reinforced design E1 (FAG), machined brass cage | C3 | PLN 3,144.60PLN 3,867.86 gross | supplier stockdispatch in 2 working days | |
| FAG | 23138 K.E1AMtapered bore, taper 1:12, reinforced design E1 (FAG), machined brass cage | CN | PLN 3,144.60PLN 3,867.86 gross | supplier stockdispatch in 2 working days | |
| NSK | 23138 CKE4S11tapered bore, taper 1:12, reinforced design, higher load rating | CN | PLN 3,187.15PLN 3,920.19 gross | supplier stockdispatch in 2 working days | |
| FAG | 23138 K.E1TVPBtapered bore, taper 1:12, reinforced design E1 (FAG), polyamide window cage, ball centred (FAG) | CN | PLN 3,235.02PLN 3,979.07 gross | supplier stockdispatch in 2 working days | |
| FAG | 23138-E1A-XL-K-M-C4reinforced design E1 (FAG), tapered bore, taper 1:12, machined brass cage | C4 | PLN 3,304.80PLN 4,064.90 gross | supplier stockdispatch in 2 working days | |
| KOYO | 23138 RKW33tapered bore, taper 1:12, lubrication groove and holes in the outer ring | CN | PLN 3,376.30PLN 4,152.85 gross | supplier stockdispatch in 2 working days | |
| NSK | 23138 CAMKE4S11machined brass cage CA, modified (SKF), tapered bore, taper 1:12, reinforced design, higher load rating | CN | PLN 3,665.25PLN 4,508.26 gross | supplier stockdispatch in 2 working days | |
| NSK | 23138 CAMKE4C3S11machined brass cage CA, modified (SKF), tapered bore, taper 1:12, reinforced design, higher load rating | CN | PLN 3,665.25PLN 4,508.26 gross | supplier stockdispatch in 2 working days | |
| SKF | 23138 K.CCW33tapered bore, taper 1:12, pressed steel window-type cage (SKF), lubrication groove and holes in the outer ring | CN | PLN 4,709.10PLN 5,792.19 gross | supplier stockdispatch in 2 working days | |
| SKF | 23138 K.CCC3W33tapered bore, taper 1:12, pressed steel window-type cage (SKF), lubrication groove and holes in the outer ring | C3 | PLN 4,709.10PLN 5,792.19 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 23138
The same size in another design – open, shielded, tapered bore.
How manufacturers designate 23138 K
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| FAG | 23138 K.E1TVPBC4 | Open |
| NSK | 23138 CKE4S11 | Open |
| SKF | 23138 K.CCW33 | Open |
| NKE | 23138-CE-K-C3-W33 | Open |
| KOYO | 23138 RKW33 | Open |
Questions about 23138 K
What are the dimensions of bearing 23138 K?
Bore 190 mm, outside diameter 320 mm, width 104 mm. Standardised dimensions – the same for every manufacturer.
Are 23138 K bearings from different brands interchangeable?
Yes. 23138 K.E1TVPBC4 FAG, 23138 CKE4S11 NSK, 23138 K.CCW33 SKF, 23138-CE-K-C3-W33 NKE, 23138 RKW33 KOYO are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 23138 K cost?
At Castomer from PLN 2,738.82 to PLN 4,709.10 net per piece depending on the manufacturer (FAG, NSK, SKF, NKE, KOYO). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 23138 K?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
