Spherical roller bearing 23160 K – 300×500×160 mm
9 offers · 3 manufacturers · net prices from PLN 10,769.60 · dispatch in 2 working days
23160 K is a spherical roller bearing with a 300 mm bore, 500 mm outside diameter and 160 mm width, open design (no seals) – for externally lubricated arrangements with a tapered bore (K) for adapter sleeve mounting. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 300 mm
- outside D
- 500 mm
- width B
- 160 mm
- sealing
- open
- mass
- 127 kg
- net price from
- PLN 10,769.60
Brands and prices 23160 K
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

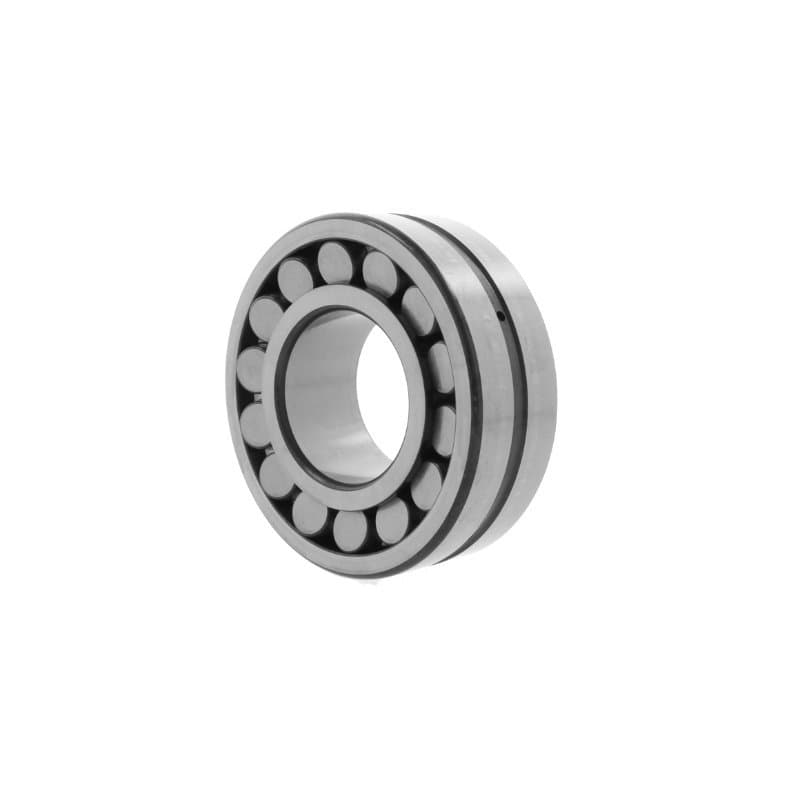

| FAG | 23160 K.BEAMB1tapered bore, taper 1:12, 40° contact angle, reinforced design, machined brass cage, inner ring centred | CN | PLN 10,769.60PLN 13,246.61 gross | supplier stockdispatch in 2 working days | |
| STEYR | 23160 CCK/C3W33pressed steel window-type cage (SKF), tapered bore, taper 1:12, lubrication groove and holes in the outer ring | C3 | PLN 11,104.35PLN 13,658.35 gross | supplier stockdispatch in 2 working days | |
| STEYR | 23160 CCK/W33pressed steel window-type cage (SKF), tapered bore, taper 1:12, lubrication groove and holes in the outer ring | CN | PLN 11,104.35PLN 13,658.35 gross | supplier stockdispatch in 2 working days | |
| STEYR | 23160 ECAK/W33reinforced EC design, more rollers (SKF), tapered bore, taper 1:12, lubrication groove and holes in the outer ring | CN | PLN 11,104.35PLN 13,658.35 gross | supplier stockdispatch in 2 working days | |
| STEYR | 23160 CA.K.C3.W33machined brass cage, roller centred (SKF), tapered bore, taper 1:12, lubrication groove and holes in the outer ring | C3 | PLN 11,104.40PLN 13,658.41 gross | supplier stockdispatch in 2 working days | |
| FAG | 23160-BEA-XL-K-MB1-C440° contact angle, reinforced design, tapered bore, taper 1:12, machined brass cage, inner ring centred | C4 | PLN 11,307.76PLN 13,908.54 gross | supplier stockdispatch in 2 working days | |
| SKF | 23160 K.CCW33tapered bore, taper 1:12, pressed steel window-type cage (SKF), lubrication groove and holes in the outer ring | CN | PLN 13,477.60PLN 16,577.45 gross | supplier stockdispatch in 2 working days | |
| SKF | 23160 CCK/C4W33pressed steel window-type cage (SKF), tapered bore, taper 1:12, lubrication groove and holes in the outer ring | C4 | PLN 13,619.46PLN 16,751.94 gross | supplier stockdispatch in 2 working days | |
| SKF | 23160 K.CCC3W33tapered bore, taper 1:12, pressed steel window-type cage (SKF), lubrication groove and holes in the outer ring | C3 | PLN 13,832.24PLN 17,013.66 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 23160
The same size in another design – open, shielded, tapered bore.
How manufacturers designate 23160 K
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| STEYR | 23160 CCK/C3W33 | Open |
| SKF | 23160 K.CCW33 | Open |
| FAG | 23160 K.BEAMB1 | Open |
Questions about 23160 K
What are the dimensions of bearing 23160 K?
Bore 300 mm, outside diameter 500 mm, width 160 mm. Standardised dimensions – the same for every manufacturer.
Are 23160 K bearings from different brands interchangeable?
Yes. 23160 CCK/C3W33 STEYR, 23160 K.CCW33 SKF, 23160 K.BEAMB1 FAG are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 23160 K cost?
At Castomer from PLN 10,769.60 to PLN 13,832.24 net per piece depending on the manufacturer (STEYR, SKF, FAG). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 23160 K?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
