Spherical roller bearing 23196 K – 480×790×248 mm
3 offers · 3 manufacturers · net prices from PLN 43,267.15 · dispatch in 2 working days
23196 K is a spherical roller bearing with a 480 mm bore, 790 mm outside diameter and 248 mm width, open design (no seals) – for externally lubricated arrangements with a tapered bore (K) for adapter sleeve mounting. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 480 mm
- outside D
- 790 mm
- width B
- 248 mm
- sealing
- open
- net price from
- PLN 43,267.15
Brands and prices 23196 K
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

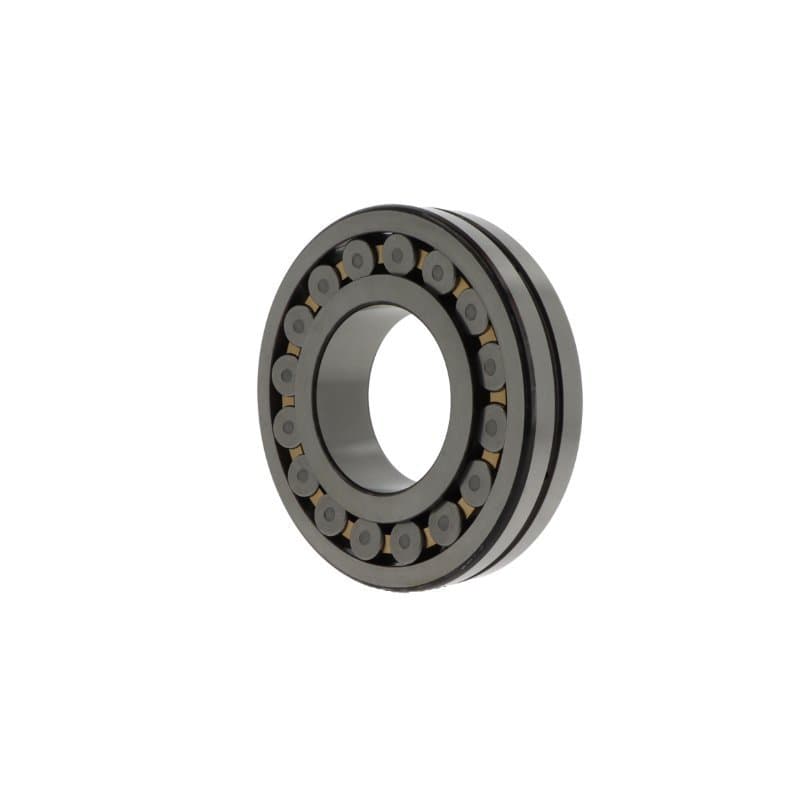

| STEYR | 23196 CA.K.C3.W33machined brass cage, roller centred (SKF), tapered bore, taper 1:12, lubrication groove and holes in the outer ring | C3 | PLN 43,267.15PLN 53,218.59 gross | supplier stockdispatch in 2 working days | |
| FAG | 23196-BEA-XL-K-MB140° contact angle, reinforced design, tapered bore, taper 1:12, machined brass cage, inner ring centred | CN | PLN 56,338.60PLN 69,296.48 gross | supplier stockdispatch in 2 working days | |
| SKF | 23196 CAK/W33machined brass cage, roller centred (SKF), tapered bore, taper 1:12, lubrication groove and holes in the outer ring | CN | PLN 57,977.20PLN 71,311.96 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 23196
The same size in another design – open, shielded, tapered bore.
How manufacturers designate 23196 K
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| STEYR | 23196 CA.K.C3.W33 | Open |
| FAG | 23196-BEA-XL-K-MB1 | Open |
| SKF | 23196 CAK/W33 | Open |
Questions about 23196 K
What are the dimensions of bearing 23196 K?
Bore 480 mm, outside diameter 790 mm, width 248 mm. Standardised dimensions – the same for every manufacturer.
Are 23196 K bearings from different brands interchangeable?
Yes. 23196 CA.K.C3.W33 STEYR, 23196-BEA-XL-K-MB1 FAG, 23196 CAK/W33 SKF are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 23196 K cost?
At Castomer from PLN 43,267.15 to PLN 57,977.20 net per piece depending on the manufacturer (STEYR, FAG, SKF). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 23196 K?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
