Spherical roller bearing 23220 K – 100×180×60.3 mm
14 offers · 7 manufacturers · net prices from PLN 660.63 · dispatch in 2 working days
23220 K is a spherical roller bearing with a 100 mm bore, 180 mm outside diameter and 60.3 mm width, open design (no seals) – for externally lubricated arrangements with a tapered bore (K) for adapter sleeve mounting. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 100 mm
- outside D
- 180 mm
- width B
- 60.3 mm
- sealing
- open
- mass
- 6.69 kg
- net price from
- PLN 660.63
Brands and prices 23220 K
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

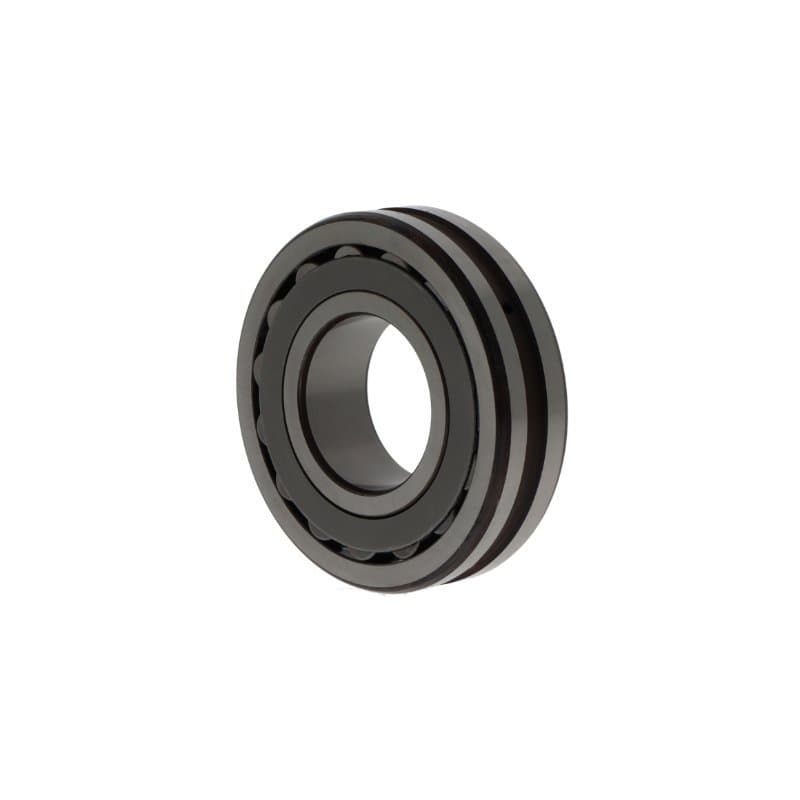

| INNE | 23220 K.EXQW33tapered bore, taper 1:12, reinforced design, higher load rating, lubrication groove and holes in the outer ring | CN | PLN 660.63PLN 812.57 gross | supplier stockdispatch in 2 working days | |
| NACHI | 23220 K.EXQW33C3tapered bore, taper 1:12, reinforced design, higher load rating, lubrication groove and holes in the outer ring | C3 | PLN 660.63PLN 812.57 gross | supplier stockdispatch in 2 working days | |
| FAG | 23220 K.E1TVPBtapered bore, taper 1:12, reinforced design E1 (FAG), polyamide window cage, ball centred (FAG) | CN | PLN 817.62PLN 1,005.67 gross | supplier stockdispatch in 2 working days | |
| FAG | 23220 K.E1TVPBC3tapered bore, taper 1:12, reinforced design E1 (FAG), polyamide window cage, ball centred (FAG) | C3 | PLN 817.62PLN 1,005.67 gross | supplier stockdispatch in 2 working days | |
| NSK | 23220 CKE4S11tapered bore, taper 1:12, reinforced design, higher load rating | CN | PLN 821.56PLN 1,010.52 gross | supplier stockdispatch in 2 working days | |
| NSK | 23220 CKE4C3S11tapered bore, taper 1:12, reinforced design, higher load rating | CN | PLN 821.56PLN 1,010.52 gross | supplier stockdispatch in 2 working days | |
| NTN | 23220 K.EAW33C3tapered bore, taper 1:12, pressed steel cage, high-capacity design (NSK), lubrication groove and holes in the outer ring | C3 | PLN 838.41PLN 1,031.24 gross | supplier stockdispatch in 2 working days | |
| FAG | 23220 K.E1TVPBC4tapered bore, taper 1:12, reinforced design E1 (FAG), polyamide window cage, ball centred (FAG) | C4 | PLN 859.14PLN 1,056.74 gross | supplier stockdispatch in 2 working days | |
| FAG | 23220 K.E1AMtapered bore, taper 1:12, reinforced design E1 (FAG), machined brass cage | CN | PLN 879.28PLN 1,081.51 gross | supplier stockdispatch in 2 working days | |
| FAG | 23220 K.E1AMC3tapered bore, taper 1:12, reinforced design E1 (FAG), machined brass cage | C3 | PLN 879.28PLN 1,081.51 gross | supplier stockdispatch in 2 working days | |
| TIMKEN | 23220 KEMW33C3tapered bore, taper 1:12, machined brass cage (NSK), lubrication groove and holes in the outer ring | C3 | PLN 908.28PLN 1,117.18 gross | supplier stockdispatch in 2 working days | |
| NSK | 23220 CAMKE4C3S11machined brass cage CA, modified (SKF), tapered bore, taper 1:12, reinforced design, higher load rating | CN | PLN 944.78PLN 1,162.08 gross | supplier stockdispatch in 2 working days | |
| SKF | 23220 K.CCC3W33tapered bore, taper 1:12, pressed steel window-type cage (SKF), lubrication groove and holes in the outer ring | C3 | PLN 1,038.80PLN 1,277.72 gross | supplier stockdispatch in 2 working days | |
| SKF | 23220 K.CCW33tapered bore, taper 1:12, pressed steel window-type cage (SKF), lubrication groove and holes in the outer ring | CN | PLN 1,094.96PLN 1,346.80 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 23220
The same size in another design – open, shielded, tapered bore.
How manufacturers designate 23220 K
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| FAG | 23220 K.E1TVPB | Open |
| NSK | 23220 CKE4S11 | Open |
| SKF | 23220 K.CCC3W33 | Open |
| INNE | 23220 K.EXQW33 | Open |
| NACHI | 23220 K.EXQW33C3 | Open |
| NTN | 23220 K.EAW33C3 | Open |
| TIMKEN | 23220 KEMW33C3 | Open |
Questions about 23220 K
What are the dimensions of bearing 23220 K?
Bore 100 mm, outside diameter 180 mm, width 60.3 mm. Standardised dimensions – the same for every manufacturer.
Are 23220 K bearings from different brands interchangeable?
Yes. 23220 K.E1TVPB FAG, 23220 CKE4S11 NSK, 23220 K.CCC3W33 SKF, 23220 K.EXQW33 INNE, 23220 K.EXQW33C3 NACHI are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 23220 K cost?
At Castomer from PLN 660.63 to PLN 1,094.96 net per piece depending on the manufacturer (FAG, NSK, SKF, INNE, NACHI, NTN). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 23220 K?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
