Spherical roller bearing 23226 K – 130×230×80 mm
19 offers · 7 manufacturers · net prices from PLN 1,223.53 · dispatch in 2 working days
23226 K is a spherical roller bearing with a 130 mm bore, 230 mm outside diameter and 80 mm width, open design (no seals) – for externally lubricated arrangements with a tapered bore (K) for adapter sleeve mounting. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 130 mm
- outside D
- 230 mm
- width B
- 80 mm
- sealing
- open
- mass
- 13.62 kg
- net price from
- PLN 1,223.53
Brands and prices 23226 K
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

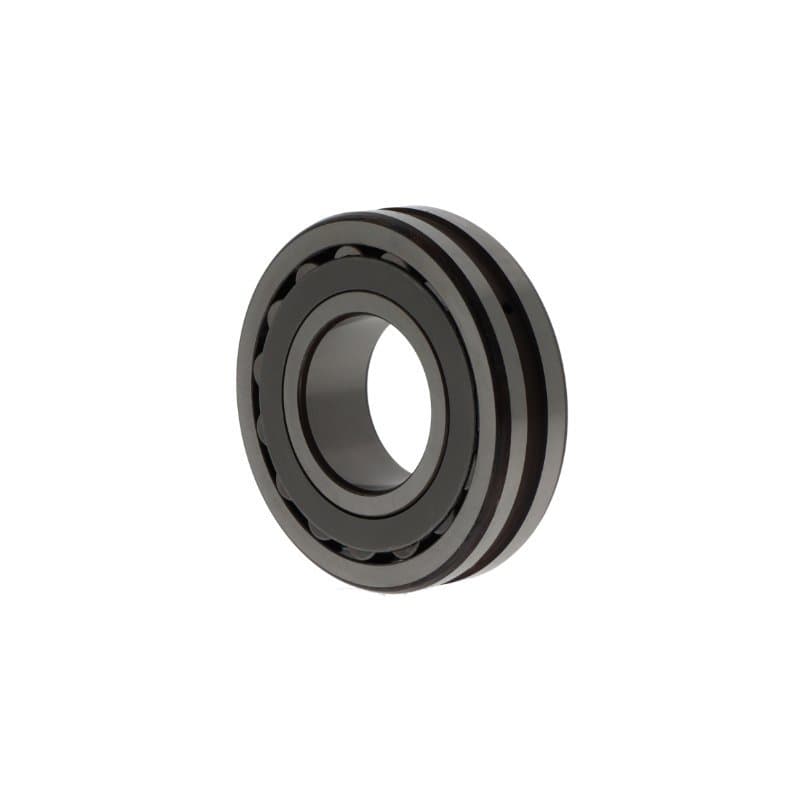

| NKE | 23226-CE-K-W33reinforced design, higher load rating, tapered bore, taper 1:12, lubrication groove and holes in the outer ring | CN | PLN 1,223.53PLN 1,504.94 gross | supplier stockdispatch in 2 working days | |
| NACHI | 23226 K.EXQW33tapered bore, taper 1:12, reinforced design, higher load rating, lubrication groove and holes in the outer ring | CN | PLN 1,233.03PLN 1,516.63 gross | supplier stockdispatch in 2 working days | |
| NACHI | 23226 EXQW33KC3reinforced design, higher load rating, lubrication groove and holes in the outer ring, tapered bore, taper 1:12 | C3 | PLN 1,233.03PLN 1,516.63 gross | supplier stockdispatch in 2 working days | |
| NKE | 23226-CE-K-C3-W33reinforced design, higher load rating, tapered bore, taper 1:12, lubrication groove and holes in the outer ring | C3 | PLN 1,247.12PLN 1,533.96 gross | supplier stockdispatch in 2 working days | |
| FAG | 23226 K.E1TVPBtapered bore, taper 1:12, reinforced design E1 (FAG), polyamide window cage, ball centred (FAG) | CN | PLN 1,512.06PLN 1,859.83 gross | supplier stockdispatch in 2 working days | |
| FAG | 23226 K.E1TVPBC3tapered bore, taper 1:12, reinforced design E1 (FAG), polyamide window cage, ball centred (FAG) | C3 | PLN 1,512.06PLN 1,859.83 gross | supplier stockdispatch in 2 working days | |
| NSK | 23226 CKE4S11tapered bore, taper 1:12, reinforced design, higher load rating | CN | PLN 1,538.46PLN 1,892.31 gross | supplier stockdispatch in 2 working days | |
| NSK | 23226 CKE4C3S11tapered bore, taper 1:12, reinforced design, higher load rating | CN | PLN 1,538.46PLN 1,892.31 gross | supplier stockdispatch in 2 working days | |
| FAG | 23226 K.E1AMtapered bore, taper 1:12, reinforced design E1 (FAG), machined brass cage | CN | PLN 1,573.40PLN 1,935.28 gross | supplier stockdispatch in 2 working days | |
| FAG | 23226 K.E1AMC3tapered bore, taper 1:12, reinforced design E1 (FAG), machined brass cage | C3 | PLN 1,625.83PLN 1,999.77 gross | supplier stockdispatch in 2 working days | |
| TIMKEN | 23226 KEJW33tapered bore, taper 1:12, pressed steel cage (Timken), lubrication groove and holes in the outer ring | CN | PLN 1,699.22PLN 2,090.04 gross | supplier stockdispatch in 2 working days | |
| TIMKEN | 23226 KEJW33C3tapered bore, taper 1:12, pressed steel cage (Timken), lubrication groove and holes in the outer ring | C3 | PLN 1,699.22PLN 2,090.04 gross | supplier stockdispatch in 2 working days | |
| NSK | 23226 CAMKE4C3S11machined brass cage CA, modified (SKF), tapered bore, taper 1:12, reinforced design, higher load rating | CN | PLN 1,769.20PLN 2,176.12 gross | supplier stockdispatch in 2 working days | |
| NSK | 23226 CAMKE4S11machined brass cage CA, modified (SKF), tapered bore, taper 1:12, reinforced design, higher load rating | CN | PLN 1,769.20PLN 2,176.12 gross | supplier stockdispatch in 2 working days | |
| NTN | 23226 K.EMW33tapered bore, taper 1:12, machined brass cage (NSK), lubrication groove and holes in the outer ring | CN | PLN 1,979.32PLN 2,434.56 gross | supplier stockdispatch in 2 working days | |
| NTN | 23226 .EMKW33C3machined brass cage (NSK), tapered bore, taper 1:12, lubrication groove and holes in the outer ring | C3 | PLN 1,979.32PLN 2,434.56 gross | supplier stockdispatch in 2 working days | |
| SKF | 23226 K.CCW33tapered bore, taper 1:12, pressed steel window-type cage (SKF), lubrication groove and holes in the outer ring | CN | PLN 2,388.52PLN 2,937.88 gross | supplier stockdispatch in 2 working days | |
| SKF | 23226 K.CCC4W33tapered bore, taper 1:12, pressed steel window-type cage (SKF), lubrication groove and holes in the outer ring | C4 | PLN 2,434.16PLN 2,994.02 gross | supplier stockdispatch in 2 working days | |
| SKF | 23226 K.CCC3W33tapered bore, taper 1:12, pressed steel window-type cage (SKF), lubrication groove and holes in the outer ring | C3 | PLN 2,446.80PLN 3,009.56 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 23226
The same size in another design – open, shielded, tapered bore.
How manufacturers designate 23226 K
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| FAG | 23226 K.E1TVPB | Open |
| NSK | 23226 CKE4S11 | Open |
| SKF | 23226 K.CCW33 | Open |
| NKE | 23226-CE-K-W33 | Open |
| NACHI | 23226 K.EXQW33 | Open |
| TIMKEN | 23226 KEJW33 | Open |
| NTN | 23226 K.EMW33 | Open |
Questions about 23226 K
What are the dimensions of bearing 23226 K?
Bore 130 mm, outside diameter 230 mm, width 80 mm. Standardised dimensions – the same for every manufacturer.
Are 23226 K bearings from different brands interchangeable?
Yes. 23226 K.E1TVPB FAG, 23226 CKE4S11 NSK, 23226 K.CCW33 SKF, 23226-CE-K-W33 NKE, 23226 K.EXQW33 NACHI are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 23226 K cost?
At Castomer from PLN 1,223.53 to PLN 2,446.80 net per piece depending on the manufacturer (FAG, NSK, SKF, NKE, NACHI, TIMKEN). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 23226 K?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
