Spherical roller bearing 23228 K – 140×250×88 mm

19 offers · 7 manufacturers · net prices from PLN 1,524.37 · dispatch in 2 working days

23228 K is a spherical roller bearing with a 140 mm bore, 250 mm outside diameter and 88 mm width, open design (no seals) – for externally lubricated arrangements with a tapered bore (K) for adapter sleeve mounting. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.

bore d: 140 mm
outside D: 250 mm
width B: 88 mm
sealing: open
mass: 17.9 kg
net price from: PLN 1,524.37

Dimension drawing 23228 K – one for all brands (ISO dimensions)

Main dimensions
d – bore diameter	140 mm
D – outside diameter	250 mm
B – width	88 mm
mass	17.9 kg

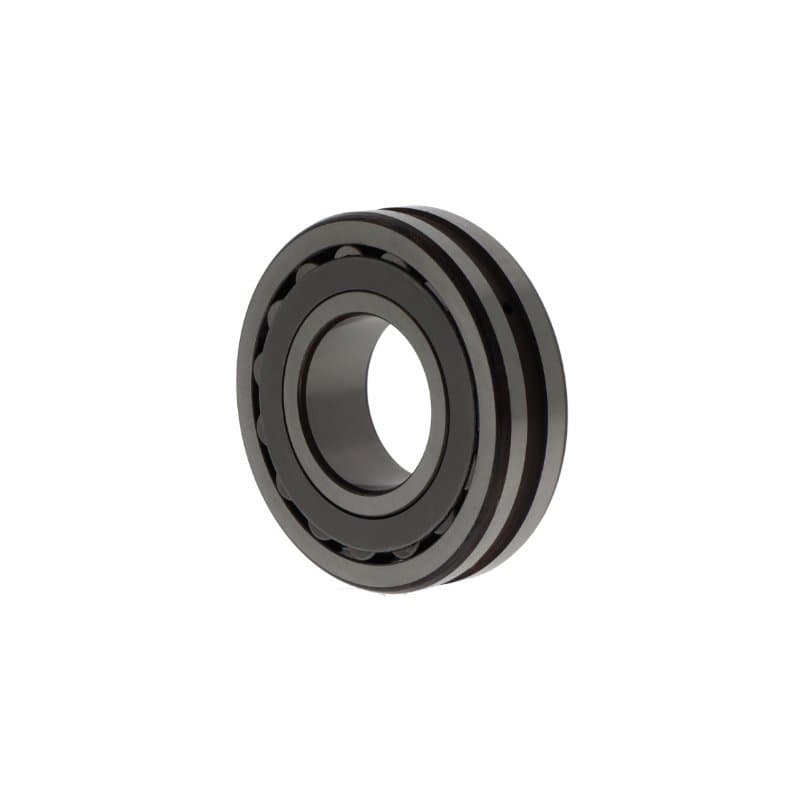

Pictured: NKE 23228-CE-K-W33. Every brand has its own product page with photo and full description.

Brands and prices 23228 K

Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.

Brand	Manufacturer designation	Clearance	Net price	Availability
NKE	23228-CE-K-W33reinforced design, higher load rating, tapered bore, taper 1:12, lubrication groove and holes in the outer ring	CN	PLN 1,524.37PLN 1,874.98 gross	supplier stockdispatch in 2 working days
NKE	23228-CE-K-C3-W33reinforced design, higher load rating, tapered bore, taper 1:12, lubrication groove and holes in the outer ring	C3	PLN 1,524.42PLN 1,875.04 gross	supplier stockdispatch in 2 working days
NACHI	23228 K.EXQW33C3tapered bore, taper 1:12, reinforced design, higher load rating, lubrication groove and holes in the outer ring	C3	PLN 1,536.30PLN 1,889.65 gross	supplier stockdispatch in 2 working days
NACHI	23228 K.EXQW33tapered bore, taper 1:12, reinforced design, higher load rating, lubrication groove and holes in the outer ring	CN	PLN 1,536.30PLN 1,889.65 gross	supplier stockdispatch in 2 working days
FAG	23228 K.E1TVPBtapered bore, taper 1:12, reinforced design E1 (FAG), polyamide window cage, ball centred (FAG)	CN	PLN 1,907.82PLN 2,346.62 gross	supplier stockdispatch in 2 working days
NSK	23228 CKE4S11tapered bore, taper 1:12, reinforced design, higher load rating	CN	PLN 1,916.67PLN 2,357.50 gross	supplier stockdispatch in 2 working days
NSK	23228 CKE4C3S11tapered bore, taper 1:12, reinforced design, higher load rating	CN	PLN 1,916.67PLN 2,357.50 gross	supplier stockdispatch in 2 working days
NTN	23228 K.EAW33tapered bore, taper 1:12, pressed steel cage, high-capacity design (NSK), lubrication groove and holes in the outer ring	CN	PLN 1,954.26PLN 2,403.74 gross	supplier stockdispatch in 2 working days
FAG	23228 K.E1AMC3tapered bore, taper 1:12, reinforced design E1 (FAG), machined brass cage	C3	PLN 2,050.06PLN 2,521.57 gross	supplier stockdispatch in 2 working days
FAG	23228 K.E1AMtapered bore, taper 1:12, reinforced design E1 (FAG), machined brass cage	CN	PLN 2,050.06PLN 2,521.57 gross	supplier stockdispatch in 2 working days
TIMKEN	23228 KEJW33tapered bore, taper 1:12, pressed steel cage (Timken), lubrication groove and holes in the outer ring	CN	PLN 2,052.98PLN 2,525.17 gross	supplier stockdispatch in 2 working days
FAG	23228 K.E1TVPBC3tapered bore, taper 1:12, reinforced design E1 (FAG), polyamide window cage, ball centred (FAG)	C3	PLN 2,154.01PLN 2,649.43 gross	supplier stockdispatch in 2 working days
FAG	23228-E1A-XL-K-M-C4reinforced design E1 (FAG), tapered bore, taper 1:12, machined brass cage	C4	PLN 2,154.33PLN 2,649.83 gross	supplier stockdispatch in 2 working days
NSK	23228 CAMKE4C3S11machined brass cage CA, modified (SKF), tapered bore, taper 1:12, reinforced design, higher load rating	CN	PLN 2,204.18PLN 2,711.14 gross	supplier stockdispatch in 2 working days
NSK	23228 CAMKE4S11machined brass cage CA, modified (SKF), tapered bore, taper 1:12, reinforced design, higher load rating	CN	PLN 2,204.18PLN 2,711.14 gross	supplier stockdispatch in 2 working days
NTN	23228 K.EMW33tapered bore, taper 1:12, machined brass cage (NSK), lubrication groove and holes in the outer ring	CN	PLN 2,525.52PLN 3,106.39 gross	supplier stockdispatch in 2 working days
SKF	23228 K.CCW33tapered bore, taper 1:12, pressed steel window-type cage (SKF), lubrication groove and holes in the outer ring	CN	PLN 2,830.79PLN 3,481.87 gross	supplier stockdispatch in 2 working days
SKF	23228 K.CCC3W33tapered bore, taper 1:12, pressed steel window-type cage (SKF), lubrication groove and holes in the outer ring	C3	PLN 2,975.89PLN 3,660.34 gross	supplier stockdispatch in 2 working days
SKF	23228 K.CCC4W33tapered bore, taper 1:12, pressed steel window-type cage (SKF), lubrication groove and holes in the outer ring	C4	PLN 2,975.89PLN 3,660.34 gross	supplier stockdispatch in 2 working days

Can't see your brand? Ask for an offer – we reply within 24 h.

Other versions of 23228

The same size in another design – open, shielded, tapered bore.

How manufacturers designate 23228 K

Each brand uses its own seal and design codes. The designations below describe the same bearing.

Manufacturer	Designation	Sealing / design
FAG	23228 K.E1TVPB	Open
NSK	23228 CKE4S11	Open
SKF	23228 K.CCW33	Open
NKE	23228-CE-K-W33	Open
NACHI	23228 K.EXQW33C3	Open
NTN	23228 K.EAW33	Open
TIMKEN	23228 KEJW33	Open

Questions about 23228 K

What are the dimensions of bearing 23228 K?

Bore 140 mm, outside diameter 250 mm, width 88 mm. Standardised dimensions – the same for every manufacturer.

Are 23228 K bearings from different brands interchangeable?

Yes. 23228 K.E1TVPB FAG, 23228 CKE4S11 NSK, 23228 K.CCW33 SKF, 23228-CE-K-W33 NKE, 23228 K.EXQW33C3 NACHI are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.

How much does bearing 23228 K cost?

At Castomer from PLN 1,524.37 to PLN 2,975.89 net per piece depending on the manufacturer (FAG, NSK, SKF, NKE, NACHI, NTN). Prices are updated from supplier warehouses; larger quantities get an individual offer.

What is the delivery time for 23228 K?

Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
