Spherical roller bearing 23236 K – 180×320×112 mm
10 offers · 4 manufacturers · net prices from PLN 3,772.24 · dispatch in 2 working days

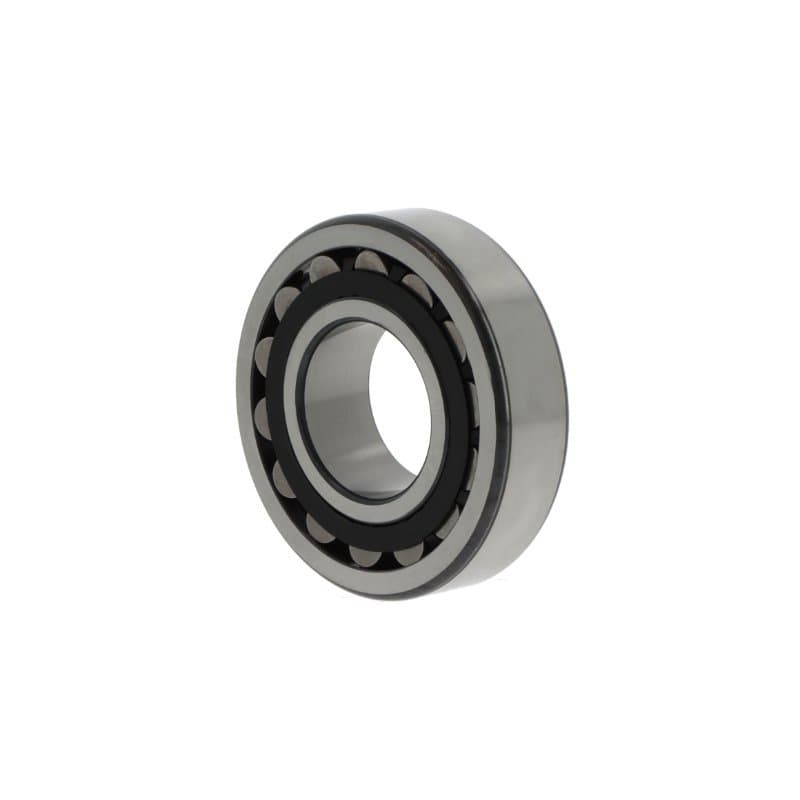

23236 K is a spherical roller bearing with a 180 mm bore, 320 mm outside diameter and 112 mm width, open design (no seals) – for externally lubricated arrangements with a tapered bore (K) for adapter sleeve mounting. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 180 mm
- outside D
- 320 mm
- width B
- 112 mm
- sealing
- open
- mass
- 37.8 kg
- net price from
- PLN 3,772.24
Brands and prices 23236 K
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|
| FAG | 23236 K.E1TVPBtapered bore, taper 1:12, reinforced design E1 (FAG), polyamide window cage, ball centred (FAG) | CN | PLN 3,772.24PLN 4,639.86 gross | supplier stockdispatch in 2 working days | |
| FAG | 23236 K.E1AMtapered bore, taper 1:12, reinforced design E1 (FAG), machined brass cage | CN | PLN 3,926.59PLN 4,829.71 gross | supplier stockdispatch in 2 working days | |
| KOYO | 23236 RKW33C3tapered bore, taper 1:12, lubrication groove and holes in the outer ring | C3 | PLN 4,014.30PLN 4,937.59 gross | supplier stockdispatch in 2 working days | |
| FAG | 23236 K.E1AMC3tapered bore, taper 1:12, reinforced design E1 (FAG), machined brass cage | C3 | PLN 4,057.50PLN 4,990.73 gross | supplier stockdispatch in 2 working days | |
| FAG | 23236-E1A-XL-K-M-C4reinforced design E1 (FAG), tapered bore, taper 1:12, machined brass cage | C4 | PLN 4,257.20PLN 5,236.36 gross | supplier stockdispatch in 2 working days | |
| NSK | 23236 K.CAME4tapered bore, taper 1:12, machined brass cage CA, modified (SKF), reinforced design, higher load rating | CN | PLN 4,359.60PLN 5,362.31 gross | supplier stockdispatch in 2 working days | |
| NSK | 23236 CAMKE4C3S11machined brass cage CA, modified (SKF), tapered bore, taper 1:12, reinforced design, higher load rating | CN | PLN 4,359.60PLN 5,362.31 gross | supplier stockdispatch in 2 working days | |
| SKF | 23236 CCK/C4W33pressed steel window-type cage (SKF), tapered bore, taper 1:12, lubrication groove and holes in the outer ring | C4 | PLN 5,267.20PLN 6,478.66 gross | supplier stockdispatch in 2 working days | |
| SKF | 23236 K.CCW33tapered bore, taper 1:12, pressed steel window-type cage (SKF), lubrication groove and holes in the outer ring | CN | PLN 5,413.50PLN 6,658.61 gross | supplier stockdispatch in 2 working days | |
| SKF | 23236 K.CCC3W33tapered bore, taper 1:12, pressed steel window-type cage (SKF), lubrication groove and holes in the outer ring | C3 | PLN 5,559.80PLN 6,838.55 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 23236
The same size in another design – open, shielded, tapered bore.
How manufacturers designate 23236 K
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| FAG | 23236 K.E1TVPB | Open |
| SKF | 23236 CCK/C4W33 | Open |
| NSK | 23236 K.CAME4 | Open |
| KOYO | 23236 RKW33C3 | Open |
Questions about 23236 K
What are the dimensions of bearing 23236 K?
Bore 180 mm, outside diameter 320 mm, width 112 mm. Standardised dimensions – the same for every manufacturer.
Are 23236 K bearings from different brands interchangeable?
Yes. 23236 K.E1TVPB FAG, 23236 CCK/C4W33 SKF, 23236 K.CAME4 NSK, 23236 RKW33C3 KOYO are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 23236 K cost?
At Castomer from PLN 3,772.24 to PLN 5,559.80 net per piece depending on the manufacturer (FAG, SKF, NSK, KOYO). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 23236 K?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
