Spherical roller bearing 23264 K – 320×580×208 mm
4 offers · 3 manufacturers · net prices from PLN 20,540.31 · dispatch in 2 working days
23264 K is a spherical roller bearing with a 320 mm bore, 580 mm outside diameter and 208 mm width, open design (no seals) – for externally lubricated arrangements with a tapered bore (K) for adapter sleeve mounting. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 320 mm
- outside D
- 580 mm
- width B
- 208 mm
- sealing
- open
- net price from
- PLN 20,540.31
Brands and prices 23264 K
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

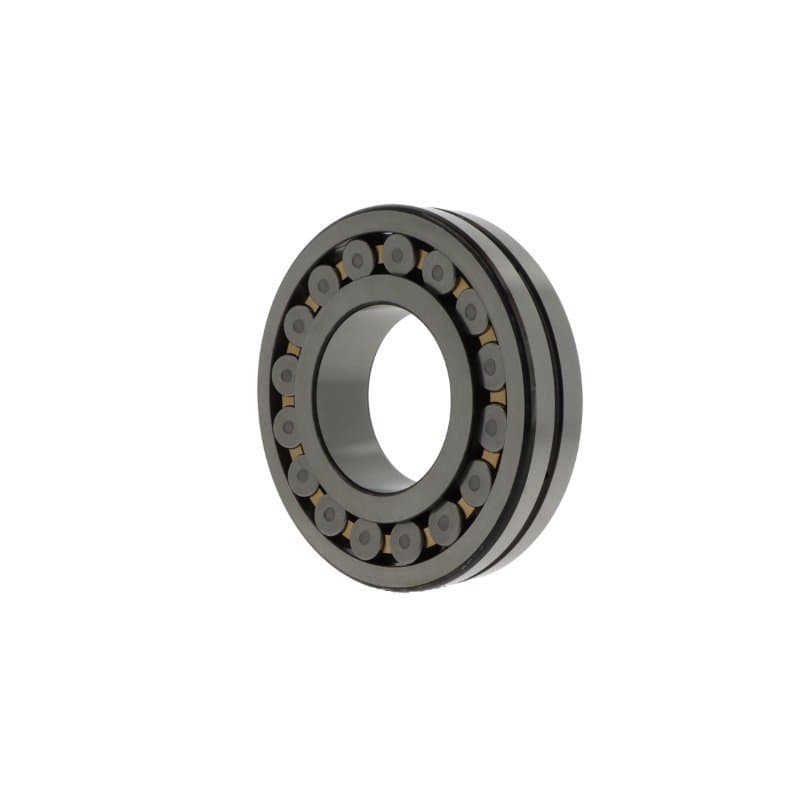

| STEYR | 23264 ECAK/W33reinforced EC design, more rollers (SKF), tapered bore, taper 1:12, lubrication groove and holes in the outer ring | CN | PLN 20,540.31PLN 25,264.58 gross | supplier stockdispatch in 2 working days | |
| FAG | 23264 K.BEAMB1C3tapered bore, taper 1:12, 40° contact angle, reinforced design, machined brass cage, inner ring centred | CN | PLN 23,038.65PLN 28,337.54 gross | supplier stockdispatch in 2 working days | |
| FAG | 23264-BEA-XL-K-MB140° contact angle, reinforced design, tapered bore, taper 1:12, machined brass cage, inner ring centred | CN | PLN 23,038.65PLN 28,337.54 gross | supplier stockdispatch in 2 working days | |
| SKF | 23264 CCK/C3W33pressed steel window-type cage (SKF), tapered bore, taper 1:12, lubrication groove and holes in the outer ring | C3 | PLN 26,087.76PLN 32,087.94 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 23264
The same size in another design – open, shielded, tapered bore.
How manufacturers designate 23264 K
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| FAG | 23264 K.BEAMB1C3 | Open |
| STEYR | 23264 ECAK/W33 | Open |
| SKF | 23264 CCK/C3W33 | Open |
Questions about 23264 K
What are the dimensions of bearing 23264 K?
Bore 320 mm, outside diameter 580 mm, width 208 mm. Standardised dimensions – the same for every manufacturer.
Are 23264 K bearings from different brands interchangeable?
Yes. 23264 K.BEAMB1C3 FAG, 23264 ECAK/W33 STEYR, 23264 CCK/C3W33 SKF are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 23264 K cost?
At Castomer from PLN 20,540.31 to PLN 26,087.76 net per piece depending on the manufacturer (FAG, STEYR, SKF). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 23264 K?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
