Spherical roller bearing 23280 K – 400×720×256 mm
4 offers · 3 manufacturers · net prices from PLN 39,935.50 · dispatch in 2 working days
23280 K is a spherical roller bearing with a 400 mm bore, 720 mm outside diameter and 256 mm width, open design (no seals) – for externally lubricated arrangements with a tapered bore (K) for adapter sleeve mounting. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 400 mm
- outside D
- 720 mm
- width B
- 256 mm
- sealing
- open
- net price from
- PLN 39,935.50
Brands and prices 23280 K
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

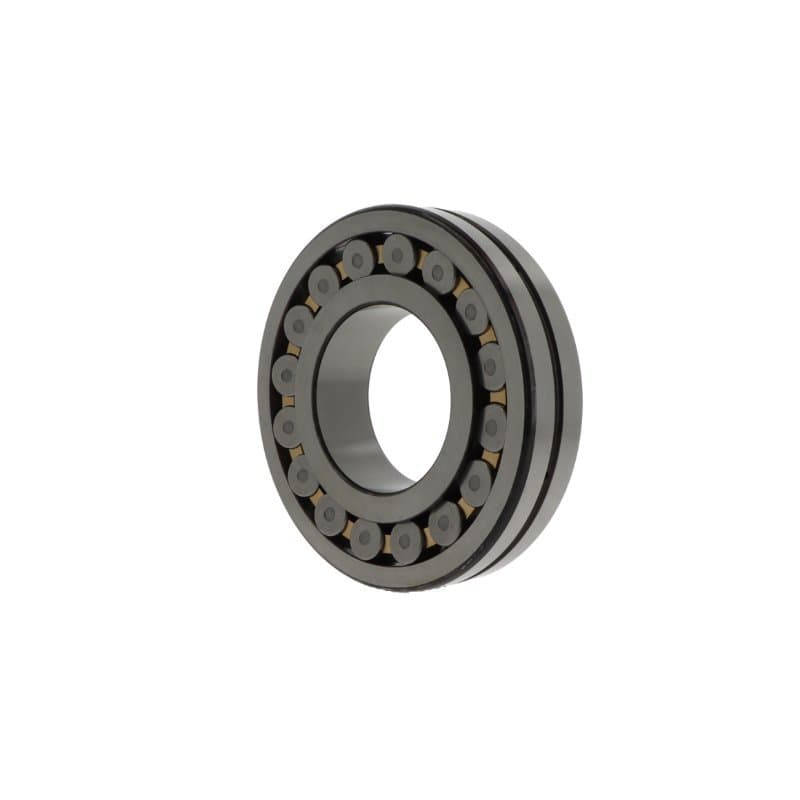

| STEYR | 23280 CA.K.C3.W33machined brass cage, roller centred (SKF), tapered bore, taper 1:12, lubrication groove and holes in the outer ring | C3 | PLN 39,935.50PLN 49,120.67 gross | supplier stockdispatch in 2 working days | |
| FAG | 23280-BEA-XL-K-MB140° contact angle, reinforced design, tapered bore, taper 1:12, machined brass cage, inner ring centred | CN | PLN 46,211.10PLN 56,839.65 gross | supplier stockdispatch in 2 working days | |
| SKF | 23280 CAK/C3W33machined brass cage, roller centred (SKF), tapered bore, taper 1:12, lubrication groove and holes in the outer ring | C3 | PLN 57,466.05PLN 70,683.24 gross | supplier stockdispatch in 2 working days | |
| SKF | 23280 CAK/W33machined brass cage, roller centred (SKF), tapered bore, taper 1:12, lubrication groove and holes in the outer ring | CN | PLN 57,466.05PLN 70,683.24 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 23280
The same size in another design – open, shielded, tapered bore.
How manufacturers designate 23280 K
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| SKF | 23280 CAK/C3W33 | Open |
| STEYR | 23280 CA.K.C3.W33 | Open |
| FAG | 23280-BEA-XL-K-MB1 | Open |
Questions about 23280 K
What are the dimensions of bearing 23280 K?
Bore 400 mm, outside diameter 720 mm, width 256 mm. Standardised dimensions – the same for every manufacturer.
Are 23280 K bearings from different brands interchangeable?
Yes. 23280 CAK/C3W33 SKF, 23280 CA.K.C3.W33 STEYR, 23280-BEA-XL-K-MB1 FAG are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 23280 K cost?
At Castomer from PLN 39,935.50 to PLN 57,466.05 net per piece depending on the manufacturer (SKF, STEYR, FAG). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 23280 K?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
