Spherical roller bearing 23288 K – 440×790×280 mm
4 offers · 3 manufacturers · net prices from PLN 52,350.25 · dispatch in 2 working days
23288 K is a spherical roller bearing with a 440 mm bore, 790 mm outside diameter and 280 mm width, open design (no seals) – for externally lubricated arrangements with a tapered bore (K) for adapter sleeve mounting. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 440 mm
- outside D
- 790 mm
- width B
- 280 mm
- sealing
- open
- net price from
- PLN 52,350.25
Brands and prices 23288 K
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

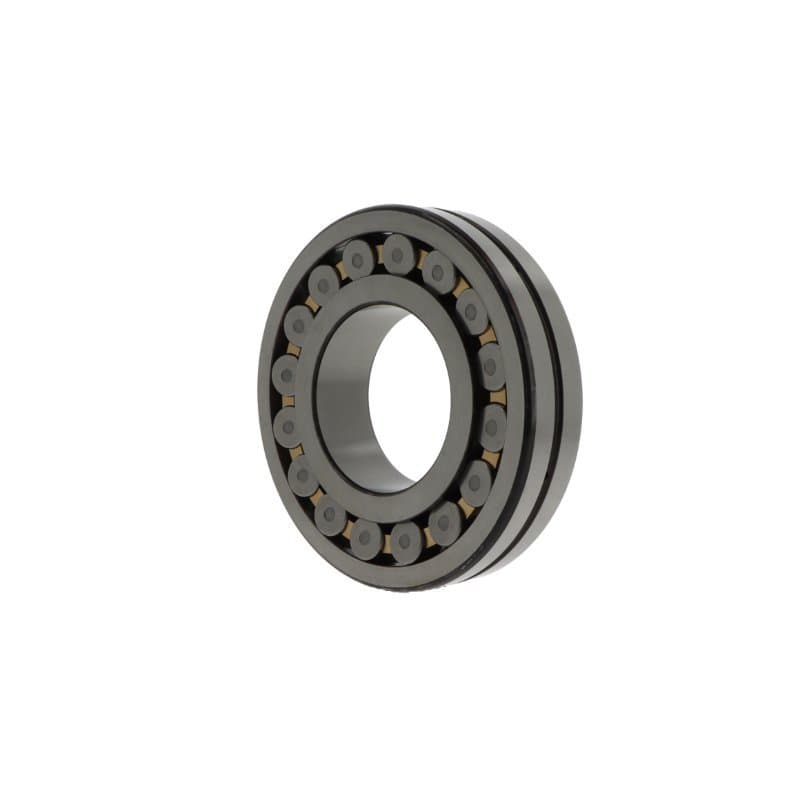

| STEYR | 23288 CA.K.C3.W33machined brass cage, roller centred (SKF), tapered bore, taper 1:12, lubrication groove and holes in the outer ring | C3 | PLN 52,350.25PLN 64,390.81 gross | supplier stockdispatch in 2 working days | |
| FAG | 23288-BEA-XL-K-MB1-C340° contact angle, reinforced design, tapered bore, taper 1:12, machined brass cage, inner ring centred | C3 | PLN 64,928.05PLN 79,861.50 gross | supplier stockdispatch in 2 working days | |
| SKF | 23288 CAK/C3W33machined brass cage, roller centred (SKF), tapered bore, taper 1:12, lubrication groove and holes in the outer ring | C3 | PLN 69,565.31PLN 85,565.33 gross | supplier stockdispatch in 2 working days | |
| SKF | 23288 CAK/W33machined brass cage, roller centred (SKF), tapered bore, taper 1:12, lubrication groove and holes in the outer ring | CN | PLN 71,349.06PLN 87,759.34 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 23288
The same size in another design – open, shielded, tapered bore.
How manufacturers designate 23288 K
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| SKF | 23288 CAK/C3W33 | Open |
| STEYR | 23288 CA.K.C3.W33 | Open |
| FAG | 23288-BEA-XL-K-MB1-C3 | Open |
Questions about 23288 K
What are the dimensions of bearing 23288 K?
Bore 440 mm, outside diameter 790 mm, width 280 mm. Standardised dimensions – the same for every manufacturer.
Are 23288 K bearings from different brands interchangeable?
Yes. 23288 CAK/C3W33 SKF, 23288 CA.K.C3.W33 STEYR, 23288-BEA-XL-K-MB1-C3 FAG are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 23288 K cost?
At Castomer from PLN 52,350.25 to PLN 71,349.06 net per piece depending on the manufacturer (SKF, STEYR, FAG). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 23288 K?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
