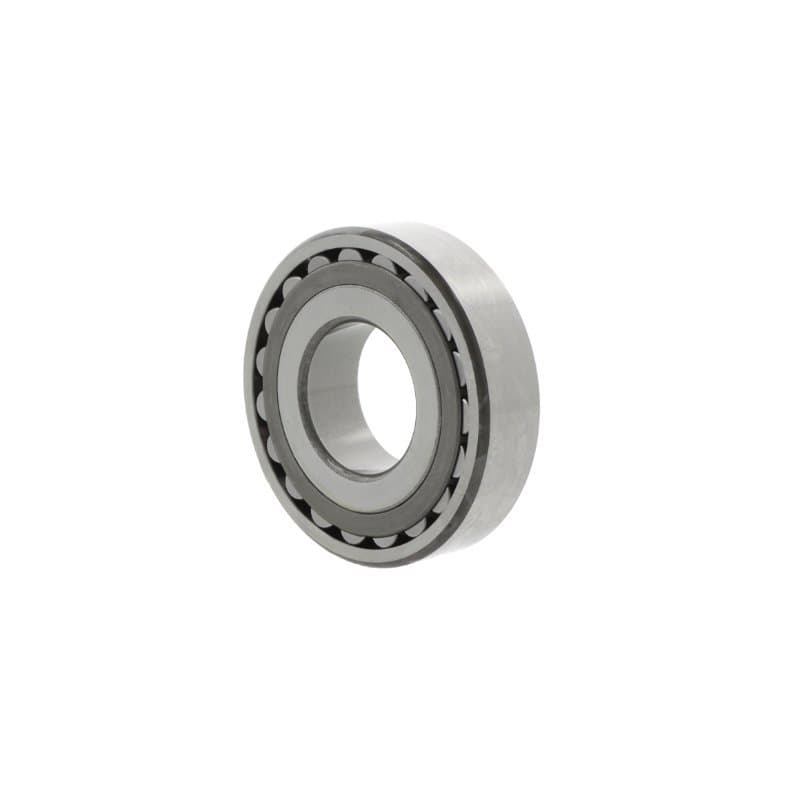

Spherical roller bearing 24148 – 240×400×160 mm
4 offers · 2 manufacturers · net prices from PLN 8,619.50 · dispatch in 2 working days
24148 is a spherical roller bearing with a 240 mm bore, 400 mm outside diameter and 160 mm width, open design (no seals) – for externally lubricated arrangements. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 240 mm
- outside D
- 400 mm
- width B
- 160 mm
- sealing
- open
- mass
- 78.52 kg
- net price from
- PLN 8,619.50
Brands and prices 24148
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|
| FAG | 24148 BEXL40° contact angle, reinforced design | CN | PLN 8,619.50PLN 10,601.99 gross | supplier stockdispatch in 2 working days | |
| FAG | 24148 BEXLC340° contact angle, reinforced design | C3 | PLN 8,906.80PLN 10,955.36 gross | supplier stockdispatch in 2 working days | |
| SKF | 24148 CCW33pressed steel window-type cage (SKF), lubrication groove and holes in the outer ring | CN | PLN 9,127.60PLN 11,226.95 gross | supplier stockdispatch in 2 working days | |
| FAG | 24148-BE-XL-C440° contact angle, reinforced design | C4 | PLN 9,353.00PLN 11,504.19 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 24148
The same size in another design – open, shielded, tapered bore.
How manufacturers designate 24148
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| FAG | 24148 BEXL | Open |
| SKF | 24148 CCW33 | Open |
Questions about 24148
What are the dimensions of bearing 24148?
Bore 240 mm, outside diameter 400 mm, width 160 mm. Standardised dimensions – the same for every manufacturer.
Are 24148 bearings from different brands interchangeable?
Yes. 24148 BEXL FAG, 24148 CCW33 SKF are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 24148 cost?
At Castomer from PLN 8,619.50 to PLN 9,353.00 net per piece depending on the manufacturer (FAG, SKF). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 24148?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
