Spherical roller bearing 24168 – 340×580×243 mm
4 offers · 3 manufacturers · net prices from PLN 27,654.10 · dispatch in 2 working days
24168 is a spherical roller bearing with a 340 mm bore, 580 mm outside diameter and 243 mm width, open design (no seals) – for externally lubricated arrangements. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 340 mm
- outside D
- 580 mm
- width B
- 243 mm
- sealing
- open
- mass
- 260 kg
- net price from
- PLN 27,654.10
Brands and prices 24168
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

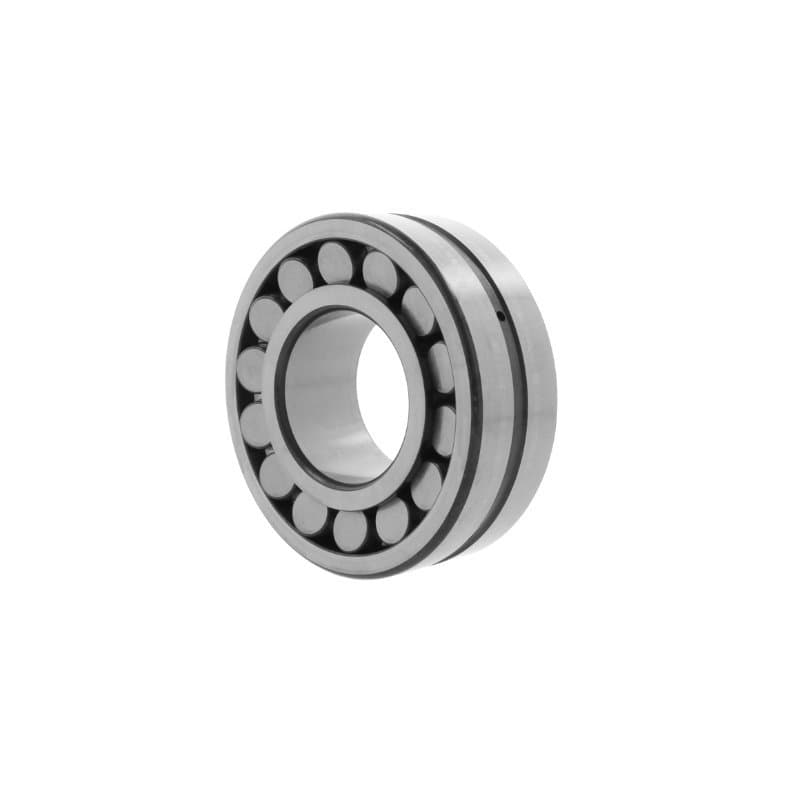

| STEYR | 24168 CA.W33machined brass cage, roller centred (SKF), lubrication groove and holes in the outer ring | CN | PLN 27,654.10PLN 34,014.54 gross | supplier stockdispatch in 2 working days | |
| FAG | 24168-BE-XL-C340° contact angle, reinforced design | C3 | PLN 30,790.94PLN 37,872.86 gross | supplier stockdispatch in 2 working days | |
| FAG | 24168 BEXL40° contact angle, reinforced design | CN | PLN 31,899.46PLN 39,236.34 gross | supplier stockdispatch in 2 working days | |
| SKF | 24168 ECCJ/W33reinforced EC design, more rollers (SKF), pressed steel cage, lubrication groove and holes in the outer ring | CN | PLN 40,824.80PLN 50,214.50 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 24168
The same size in another design – open, shielded, tapered bore.
How manufacturers designate 24168
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| FAG | 24168-BE-XL-C3 | Open |
| STEYR | 24168 CA.W33 | Open |
| SKF | 24168 ECCJ/W33 | Open |
Questions about 24168
What are the dimensions of bearing 24168?
Bore 340 mm, outside diameter 580 mm, width 243 mm. Standardised dimensions – the same for every manufacturer.
Are 24168 bearings from different brands interchangeable?
Yes. 24168-BE-XL-C3 FAG, 24168 CA.W33 STEYR, 24168 ECCJ/W33 SKF are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 24168 cost?
At Castomer from PLN 27,654.10 to PLN 40,824.80 net per piece depending on the manufacturer (FAG, STEYR, SKF). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 24168?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
