Deep groove ball bearing 3002-2Z – 15×32×13 mm
3 offers · 2 manufacturers · net prices from PLN 41.90 · dispatch in 2 working days

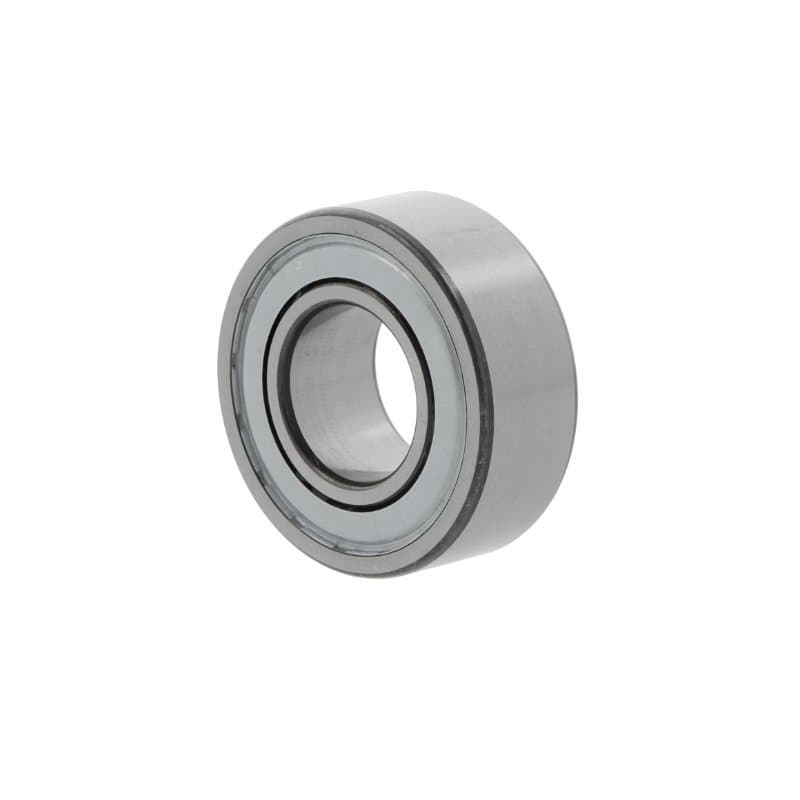

3002-2Z is a deep groove ball bearing with a 15 mm bore, 32 mm outside diameter and 13 mm width, with two metal shields (2Z) – non-contact, for higher speeds. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 15 mm
- outside D
- 32 mm
- width B
- 13 mm
- sealing
- 2Z
- net price from
- PLN 41.90
Brands and prices 3002-2Z
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|
| NKE | 3002-2Z | CN | PLN 41.90PLN 51.54 gross | supplier stockdispatch in 2 working days | |
| INA | 3002-2Z | CN | PLN 66.32PLN 81.57 gross | supplier stockdispatch in 2 working days | |
| INA | 3002-2Z-C3 | C3 | PLN 66.32PLN 81.57 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 3002
The same size in another design – open, shielded, tapered bore.
How manufacturers designate 3002-2Z
Each brand uses its own seal and design codes. The designations below describe the same bearing.
2RS, 2Z or C3 – which to choose?
2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.
Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.
The dimensions of 3002-2Z are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.
Questions about 3002-2Z
What are the dimensions of bearing 3002-2Z?
Bore 15 mm, outside diameter 32 mm, width 13 mm. Standardised dimensions – the same for every manufacturer.
Are 3002-2Z bearings from different brands interchangeable?
Yes. 3002-2Z INA, 3002-2Z NKE are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 3002-2Z cost?
At Castomer from PLN 41.90 to PLN 66.32 net per piece depending on the manufacturer (INA, NKE). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 3002-2Z?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
