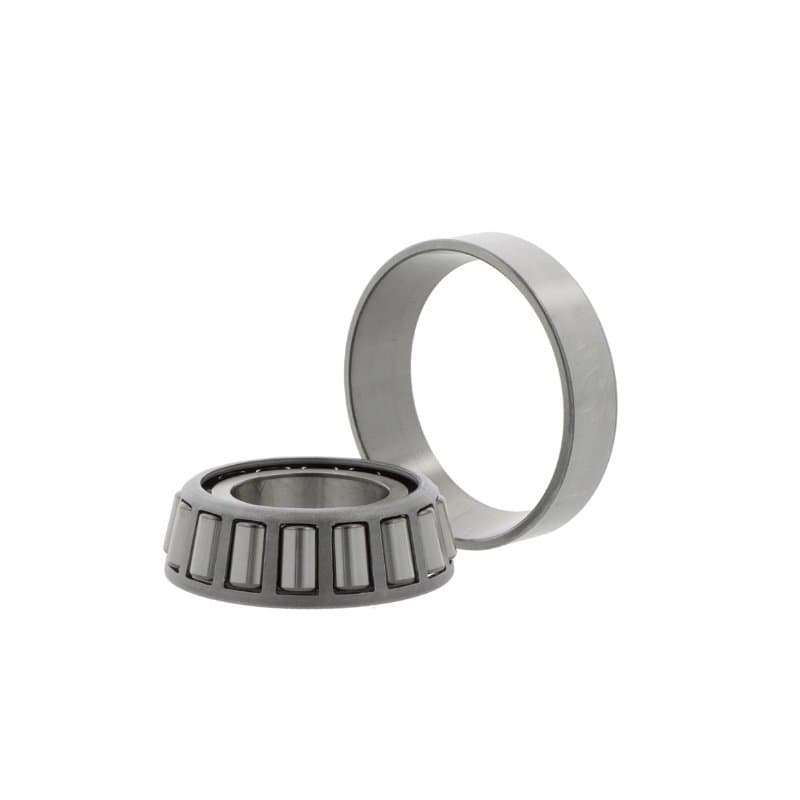

Tapered roller bearing 30224 – 120×215×44 mm
7 offers · 7 manufacturers · net prices from PLN 480.44 · dispatch in 2 working days
30224 is a tapered roller bearing with a 120 mm bore, 215 mm outside diameter and 44 mm width, open design (no seals) – for externally lubricated arrangements. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 120 mm
- outside D
- 215 mm
- width B
- 44 mm
- sealing
- open
- mass
- 6.36 kg
- net price from
- PLN 480.44
Brands and prices 30224
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|
| NKE | 30224 | CN | PLN 480.44PLN 590.94 gross | supplier stockdispatch in 2 working days | |
| NACHI | 30224 Jpressed steel cage | CN | PLN 520.88PLN 640.68 gross | supplier stockdispatch in 2 working days | |
| NTN | 30224 U | CN | PLN 674.35PLN 829.45 gross | supplier stockdispatch in 2 working days | |
| KOYO | 30224 JRriveted pressed steel cage (FAG) | CN | PLN 677.76PLN 833.64 gross | supplier stockdispatch in 2 working days | |
| TIMKEN | 30224-90KA1 | CN | PLN 781.65PLN 961.43 gross | supplier stockdispatch in 2 working days | |
| FAG | 30224-XL-P5tolerance class P5 | CN | PLN 1,511.78PLN 1,859.49 gross | supplier stockdispatch in 2 working days | |
| SKF | 30224 DF | CN | PLN 4,100.25PLN 5,043.31 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
How manufacturers designate 30224
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| NKE | 30224 | Open |
| NACHI | 30224 J | Open |
| NTN | 30224 U | Open |
| KOYO | 30224 JR | Open |
| TIMKEN | 30224-90KA1 | Open |
| FAG | 30224-XL-P5 | Open |
| SKF | 30224 DF | Open |
Questions about 30224
What are the dimensions of bearing 30224?
Bore 120 mm, outside diameter 215 mm, width 44 mm. Standardised dimensions – the same for every manufacturer.
Are 30224 bearings from different brands interchangeable?
Yes. 30224 NKE, 30224 J NACHI, 30224 U NTN, 30224 JR KOYO, 30224-90KA1 TIMKEN are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 30224 cost?
At Castomer from PLN 480.44 to PLN 4,100.25 net per piece depending on the manufacturer (NKE, NACHI, NTN, KOYO, TIMKEN, FAG). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 30224?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
