Track roller 305704-2Z – 20×52×20.6 mm
2 offers · 2 manufacturers · net prices from PLN 77.01 · dispatch in 2 working days

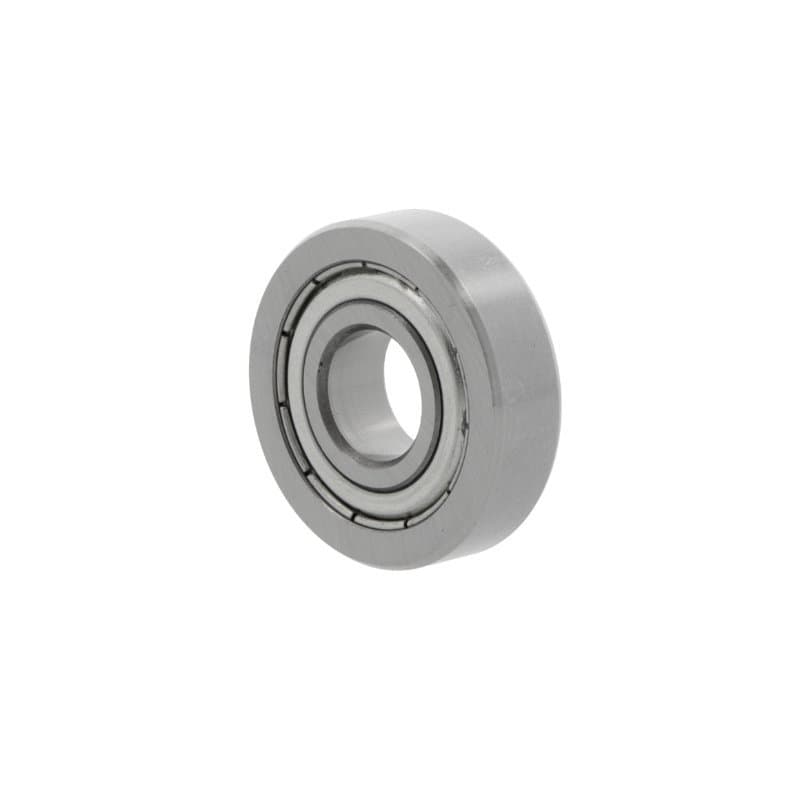

305704-2Z is a track roller with a 20 mm bore, 52 mm outside diameter and 20.6 mm width, with two metal shields (2Z) – non-contact, for higher speeds. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 20 mm
- outside D
- 52 mm
- width B
- 20.6 mm
- sealing
- 2Z
- mass
- 0.23 kg
- net price from
- PLN 77.01
Brands and prices 305704-2Z
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|
| NKE | 305704-2Z | CN | PLN 77.01PLN 94.72 gross | supplier stockdispatch in 2 working days | |
| SKF | 305704 C-2Z | CN | PLN 122.15PLN 150.24 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 305704
The same size in another design – open, shielded, tapered bore.
How manufacturers designate 305704-2Z
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| NKE | 305704-2Z | 2Z – metal shields, both sides |
| SKF | 305704 C-2Z | 2Z – metal shields, both sides |
Questions about 305704-2Z
What are the dimensions of bearing 305704-2Z?
Bore 20 mm, outside diameter 52 mm, width 20.6 mm. Standardised dimensions – the same for every manufacturer.
Are 305704-2Z bearings from different brands interchangeable?
Yes. 305704-2Z NKE, 305704 C-2Z SKF are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 305704-2Z cost?
At Castomer from PLN 77.01 to PLN 122.15 net per piece depending on the manufacturer (NKE, SKF). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 305704-2Z?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
