Tapered roller bearing 32026 – 130×200×45 mm

7 offers · 6 manufacturers · net prices from PLN 419.31 · dispatch in 2 working days

32026 is a tapered roller bearing with a 130 mm bore, 200 mm outside diameter and 45 mm width, open design (no seals) – for externally lubricated arrangements. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.

bore d: 130 mm
outside D: 200 mm
width B: 45 mm
sealing: open
mass: 5.23 kg
net price from: PLN 419.31

Dimension drawing 32026 – one for all brands (ISO dimensions)

Main dimensions
d – bore diameter	130 mm
D – outside diameter	200 mm
T – total width	45 mm
C – outer ring	34 mm
mass	5.23 kg

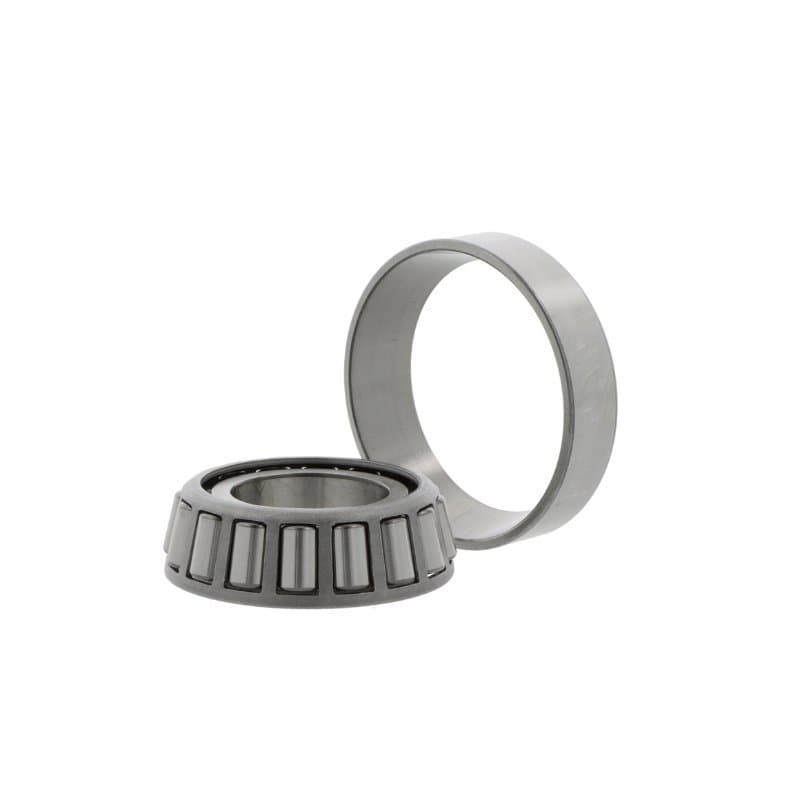

Pictured: NKE 32026 X. Every brand has its own product page with photo and full description.

Brands and prices 32026

Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.

Brand	Manufacturer designation	Clearance	Net price	Availability
NKE	32026 X	CN	PLN 419.31PLN 515.75 gross	supplier stockdispatch in 2 working days
FAG	32026 X	CN	PLN 576.88PLN 709.56 gross	supplier stockdispatch in 2 working days
NTN	32026 XU	CN	PLN 601.56PLN 739.92 gross	supplier stockdispatch in 2 working days
KOYO	32026 JRriveted pressed steel cage (FAG)	CN	PLN 604.58PLN 743.63 gross	supplier stockdispatch in 2 working days
SKF	32026 X	CN	PLN 674.57PLN 829.72 gross	supplier stockdispatch in 2 working days
TIMKEN	32026X-90KA4	CN	PLN 772.31PLN 949.94 gross	supplier stockdispatch in 2 working days
FAG	32026-X-XL-DF-A250-300 = SETreinforced design, higher load rating	CN	PLN 1,545.21PLN 1,900.61 gross	supplier stockdispatch in 2 working days

Can't see your brand? Ask for an offer – we reply within 24 h.

How manufacturers designate 32026

Each brand uses its own seal and design codes. The designations below describe the same bearing.

Manufacturer	Designation	Sealing / design
FAG	32026 X	Open
NKE	32026 X	Open
NTN	32026 XU	Open
KOYO	32026 JR	Open
SKF	32026 X	Open
TIMKEN	32026X-90KA4	Open

Questions about 32026

What are the dimensions of bearing 32026?

Bore 130 mm, outside diameter 200 mm, width 45 mm. Standardised dimensions – the same for every manufacturer.

Are 32026 bearings from different brands interchangeable?

Yes. 32026 X FAG, 32026 X NKE, 32026 XU NTN, 32026 JR KOYO, 32026 X SKF are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.

How much does bearing 32026 cost?

At Castomer from PLN 419.31 to PLN 1,545.21 net per piece depending on the manufacturer (FAG, NKE, NTN, KOYO, SKF, TIMKEN). Prices are updated from supplier warehouses; larger quantities get an individual offer.

What is the delivery time for 32026?

Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
