Angular contact ball bearing 3204-2Z – 20×47×20.6 mm
13 offers · 5 manufacturers · net prices from PLN 23.23 · dispatch in 2 working days
3204-2Z is a angular contact ball bearing with a 20 mm bore, 47 mm outside diameter and 20.6 mm width, with two metal shields (2Z) – non-contact, for higher speeds. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 20 mm
- outside D
- 47 mm
- width B
- 20.6 mm
- sealing
- 2Z
- mass
- 0.15 kg
- net price from
- PLN 23.23
Brands and prices 3204-2Z
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

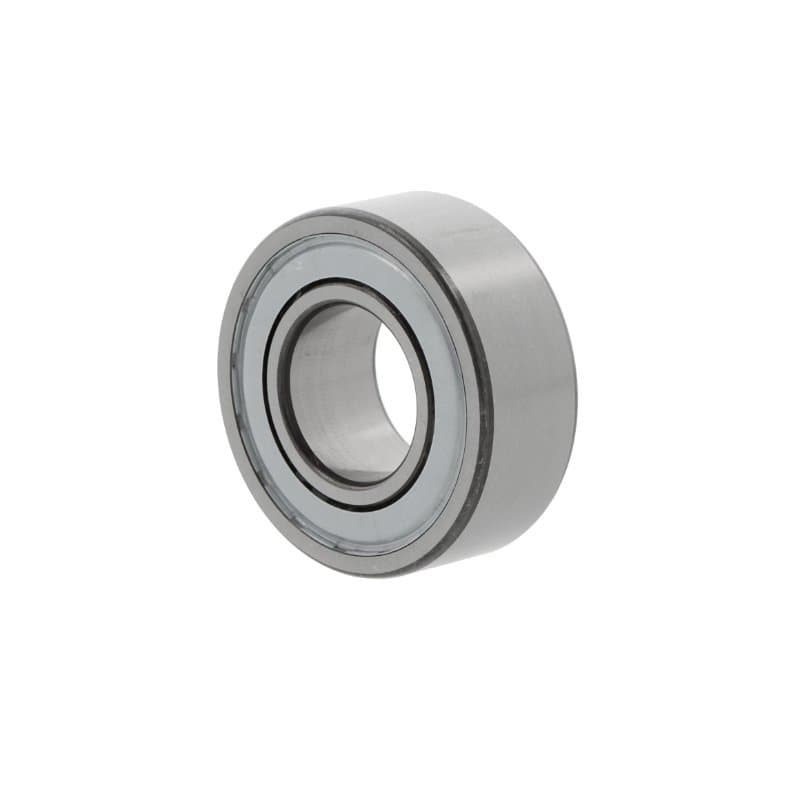

| ZEN | 3204 B2Z40° contact angle | CN | PLN 23.23PLN 28.57 gross | supplier stockdispatch in 2 working days | |
| NKE | 3204 B-2ZTV40° contact angle, glass-fibre reinforced polyamide cage (FAG) | CN | PLN 47.95PLN 58.98 gross | supplier stockdispatch in 2 working days | |
| NKE | 3204 B-2ZTVC340° contact angle, glass-fibre reinforced polyamide cage (FAG) | C3 | PLN 47.95PLN 58.98 gross | supplier stockdispatch in 2 working days | |
| NSK | 3204 B2ZRTNG40° contact angle, glass-fibre reinforced polyamide cage (NSK) | CN | PLN 70.63PLN 86.87 gross | supplier stockdispatch in 2 working days | |
| NSK | 3204 B-2ZRTNGC340° contact angle, glass-fibre reinforced polyamide cage (NSK) | C3 | PLN 70.63PLN 86.87 gross | supplier stockdispatch in 2 working days | |
| FAG | 3204 BD2ZTVHC340° contact angle, solid polyamide cage (FAG) | C3 | PLN 83.42PLN 102.61 gross | supplier stockdispatch in 2 working days | |
| FAG | 3204 BD2ZTVH40° contact angle, solid polyamide cage (FAG) | CN | PLN 83.42PLN 102.61 gross | supplier stockdispatch in 2 working days | |
| SKF | 3204 A2ZTN9MT33glass-fibre reinforced PA66 cage (SKF), machined brass cage | CN | PLN 102.44PLN 126.00 gross | supplier stockdispatch in 2 working days | |
| SKF | 3204 A2ZMT33machined brass cage | CN | PLN 105.14PLN 129.32 gross | supplier stockdispatch in 2 working days | |
| FAG | 3204 BD2ZC340° contact angle | C3 | PLN 110.42PLN 135.82 gross | supplier stockdispatch in 2 working days | |
| FAG | 3204 BD2Z40° contact angle | CN | PLN 110.42PLN 135.82 gross | supplier stockdispatch in 2 working days | |
| SKF | 3204 A2ZC3MT33machined brass cage | C3 | PLN 122.85PLN 151.11 gross | supplier stockdispatch in 2 working days | |
| SKF | 3204 A2Z | CN | PLN 129.82PLN 159.68 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 3204
The same size in another design – open, shielded, tapered bore.
How manufacturers designate 3204-2Z
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| FAG | 3204 BD2ZTVHC3 | 2Z – metal shields, both sides |
| SKF | 3204 A2ZTN9MT33 | 2Z – metal shields, both sides |
| NKE | 3204 B-2ZTV | 2Z – metal shields, both sides |
| NSK | 3204 B2ZRTNG | 2Z – metal shields, both sides |
| ZEN | 3204 B2Z | 2Z – metal shields, both sides |
Questions about 3204-2Z
What are the dimensions of bearing 3204-2Z?
Bore 20 mm, outside diameter 47 mm, width 20.6 mm. Standardised dimensions – the same for every manufacturer.
Are 3204-2Z bearings from different brands interchangeable?
Yes. 3204 BD2ZTVHC3 FAG, 3204 A2ZTN9MT33 SKF, 3204 B-2ZTV NKE, 3204 B2ZRTNG NSK, 3204 B2Z ZEN are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 3204-2Z cost?
At Castomer from PLN 23.23 to PLN 129.82 net per piece depending on the manufacturer (FAG, SKF, NKE, NSK, ZEN). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 3204-2Z?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
