Angular contact ball bearing 3209-2Z – 45×85×30.2 mm
10 offers · 3 manufacturers · net prices from PLN 154.88 · dispatch in 2 working days
3209-2Z is a angular contact ball bearing with a 45 mm bore, 85 mm outside diameter and 30.2 mm width, with two metal shields (2Z) – non-contact, for higher speeds. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 45 mm
- outside D
- 85 mm
- width B
- 30.2 mm
- sealing
- 2Z
- mass
- 0.62 kg
- net price from
- PLN 154.88
Brands and prices 3209-2Z
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

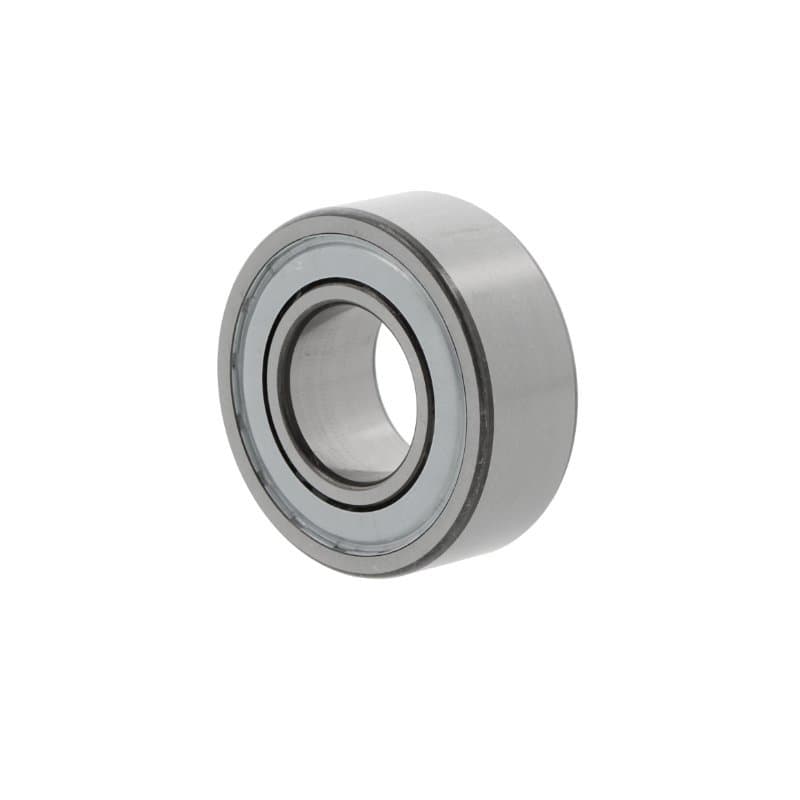

| NSK | 3209 B-2ZRTNG40° contact angle, glass-fibre reinforced polyamide cage (NSK) | CN | PLN 154.88PLN 190.50 gross | supplier stockdispatch in 2 working days | |
| FAG | 3209 BD2ZTVHC340° contact angle, solid polyamide cage (FAG) | C3 | PLN 181.82PLN 223.64 gross | supplier stockdispatch in 2 working days | |
| FAG | 3209 BD2ZTVH40° contact angle, solid polyamide cage (FAG) | CN | PLN 181.82PLN 223.64 gross | supplier stockdispatch in 2 working days | |
| SKF | 3209 A2ZTN9MT33glass-fibre reinforced PA66 cage (SKF), machined brass cage | CN | PLN 212.82PLN 261.77 gross | supplier stockdispatch in 2 working days | |
| FAG | 3209 BD2Z40° contact angle | CN | PLN 218.33PLN 268.55 gross | supplier stockdispatch in 2 working days | |
| FAG | 3209-BD-XL-2Z-C340° contact angle | C3 | PLN 218.33PLN 268.55 gross | supplier stockdispatch in 2 working days | |
| SKF | 3209 A-2Z | CN | PLN 277.12PLN 340.86 gross | supplier stockdispatch in 2 working days | |
| SKF | 3209 A2ZC3MT33machined brass cage | C3 | PLN 285.33PLN 350.96 gross | supplier stockdispatch in 2 working days | |
| SKF | 3209 A-2Z/MT33machined brass cage | CN | PLN 289.17PLN 355.68 gross | supplier stockdispatch in 2 working days |
▸Special designs 3209-2Z (1) – stainless steel, snap ring, manufacturer specials
| NSK | 3209 B-2ZRNRTNG40° contact angle, snap ring groove with snap ring, glass-fibre reinforced polyamide cage (NSK) | CN | PLN 173.61PLN 213.54 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 3209
The same size in another design – open, shielded, tapered bore.
How manufacturers designate 3209-2Z
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| FAG | 3209 BD2ZTVHC3 | 2Z – metal shields, both sides |
| SKF | 3209 A2ZTN9MT33 | 2Z – metal shields, both sides |
| NSK | 3209 B-2ZRTNG | 2Z – metal shields, both sides |
Questions about 3209-2Z
What are the dimensions of bearing 3209-2Z?
Bore 45 mm, outside diameter 85 mm, width 30.2 mm. Standardised dimensions – the same for every manufacturer.
Are 3209-2Z bearings from different brands interchangeable?
Yes. 3209 BD2ZTVHC3 FAG, 3209 A2ZTN9MT33 SKF, 3209 B-2ZRTNG NSK are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 3209-2Z cost?
At Castomer from PLN 154.88 to PLN 289.17 net per piece depending on the manufacturer (FAG, SKF, NSK). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 3209-2Z?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
