Angular contact ball bearing 3216 – 80×140×44.4 mm
5 offers · 3 manufacturers · net prices from PLN 266.06 · dispatch in 2 working days
3216 is a angular contact ball bearing with a 80 mm bore, 140 mm outside diameter and 44.4 mm width, open design (no seals) – for externally lubricated arrangements. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 80 mm
- outside D
- 140 mm
- width B
- 44.4 mm
- sealing
- open
- mass
- 2.4 kg
- net price from
- PLN 266.06
Brands and prices 3216
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

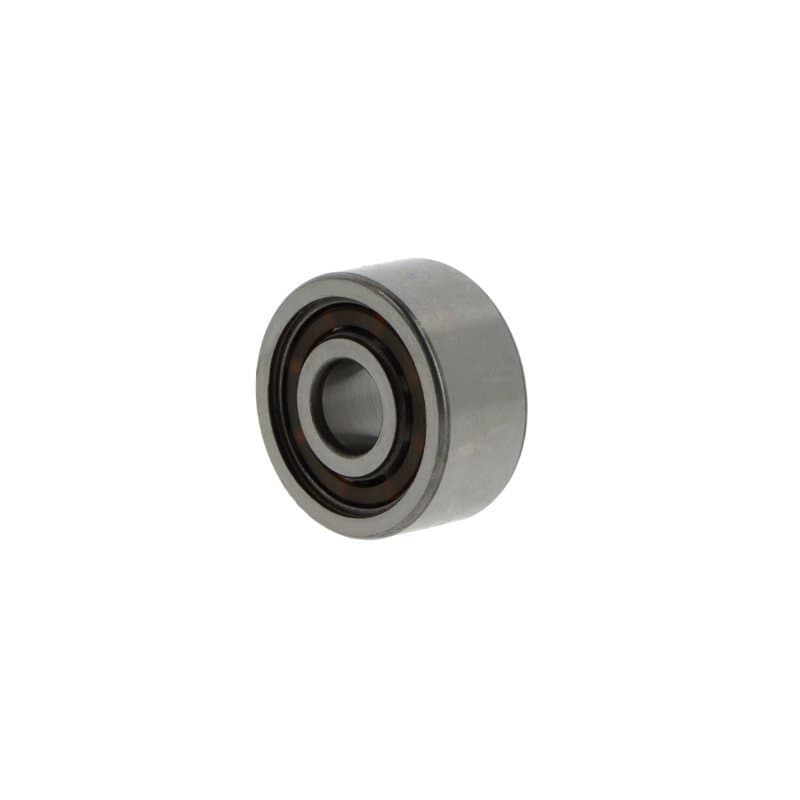

| NKE | 3216-B-TV-C340° contact angle, glass-fibre reinforced polyamide cage (FAG) | C3 | PLN 266.06PLN 327.25 gross | supplier stockdispatch in 2 working days | |
| FAG | 3216 BTVH40° contact angle, solid polyamide cage (FAG) | CN | PLN 496.75PLN 611.00 gross | supplier stockdispatch in 2 working days | |
| FAG | 3216 BTVHC340° contact angle, solid polyamide cage (FAG) | C3 | PLN 496.75PLN 611.00 gross | supplier stockdispatch in 2 working days | |
| SKF | 3216 A | CN | PLN 696.82PLN 857.09 gross | supplier stockdispatch in 2 working days | |
| SKF | 3216 AC3 | C3 | PLN 724.67PLN 891.34 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 3216
The same size in another design – open, shielded, tapered bore.
How manufacturers designate 3216
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| FAG | 3216 BTVH | Open |
| SKF | 3216 A | Open |
| NKE | 3216-B-TV-C3 | Open |
Questions about 3216
What are the dimensions of bearing 3216?
Bore 80 mm, outside diameter 140 mm, width 44.4 mm. Standardised dimensions – the same for every manufacturer.
Are 3216 bearings from different brands interchangeable?
Yes. 3216 BTVH FAG, 3216 A SKF, 3216-B-TV-C3 NKE are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 3216 cost?
At Castomer from PLN 266.06 to PLN 724.67 net per piece depending on the manufacturer (FAG, SKF, NKE). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 3216?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
