Tapered roller bearing 32204 – 20×47×19.25 mm

5 offers · 5 manufacturers · net prices from PLN 24.36 · dispatch in 2 working days

32204 is a tapered roller bearing with a 20 mm bore, 47 mm outside diameter and 19.25 mm width, open design (no seals) – for externally lubricated arrangements. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.

bore d: 20 mm
outside D: 47 mm
width B: 19.25 mm
sealing: open
mass: 0.16 kg
net price from: PLN 24.36

Dimension drawing 32204 – one for all brands (ISO dimensions)

Main dimensions
d – bore diameter	20 mm
D – outside diameter	47 mm
T – total width	19.25 mm
B – inner ring	18 mm
C – outer ring	15 mm
mass	0.16 kg

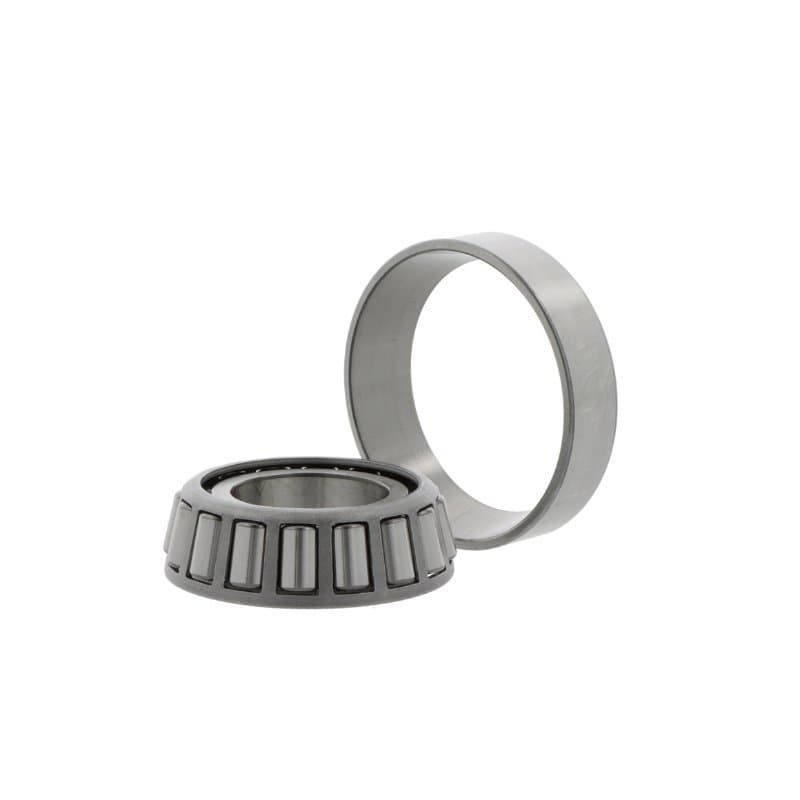

Pictured: NKE 32204. Every brand has its own product page with photo and full description.

Brands and prices 32204

Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.

Brand	Manufacturer designation	Clearance	Net price	Availability
NKE	32204	CN	PLN 24.36PLN 29.96 gross	supplier stockdispatch in 2 working days
NSK	32204 Jpressed steel cage	CN	PLN 48.17PLN 59.25 gross	supplier stockdispatch in 2 working days
TIMKEN	32204-90KA1	CN	PLN 72.20PLN 88.81 gross	supplier stockdispatch in 2 working days

▸Special designs 32204 (2) – stainless steel, snap ring, manufacturer specials

KOYO	HC32204 R	CN	PLN 36.67PLN 45.10 gross	supplier stockdispatch in 2 working days
NTN	4T-32204	CN	PLN 41.80PLN 51.41 gross	supplier stockdispatch in 2 working days

Can't see your brand? Ask for an offer – we reply within 24 h.

How manufacturers designate 32204

Each brand uses its own seal and design codes. The designations below describe the same bearing.

Manufacturer	Designation	Sealing / design
NKE	32204	Open
KOYO	HC32204 R	Open
NTN	4T-32204	Open
NSK	32204 J	Open
TIMKEN	32204-90KA1	Open

Questions about 32204

What are the dimensions of bearing 32204?

Bore 20 mm, outside diameter 47 mm, width 19.25 mm. Standardised dimensions – the same for every manufacturer.

Are 32204 bearings from different brands interchangeable?

Yes. 32204 NKE, 32204 J NSK, 32204-90KA1 TIMKEN are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.

How much does bearing 32204 cost?

At Castomer from PLN 24.36 to PLN 72.20 net per piece depending on the manufacturer (NKE, KOYO, NTN, NSK, TIMKEN). Prices are updated from supplier warehouses; larger quantities get an individual offer.

What is the delivery time for 32204?

Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
