Tapered roller bearing 32316 – 80×170×61.5 mm

9 offers · 8 manufacturers · net prices from PLN 336.10 · dispatch in 2 working days

32316 is a tapered roller bearing with a 80 mm bore, 170 mm outside diameter and 61.5 mm width, open design (no seals) – for externally lubricated arrangements. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.

bore d: 80 mm
outside D: 170 mm
width B: 61.5 mm
sealing: open
net price from: PLN 336.10

Dimension drawing 32316 – one for all brands (ISO dimensions)

Main dimensions
d – bore diameter	80 mm
D – outside diameter	170 mm
T – total width	61.5 mm
B – inner ring	58 mm
C – outer ring	48 mm

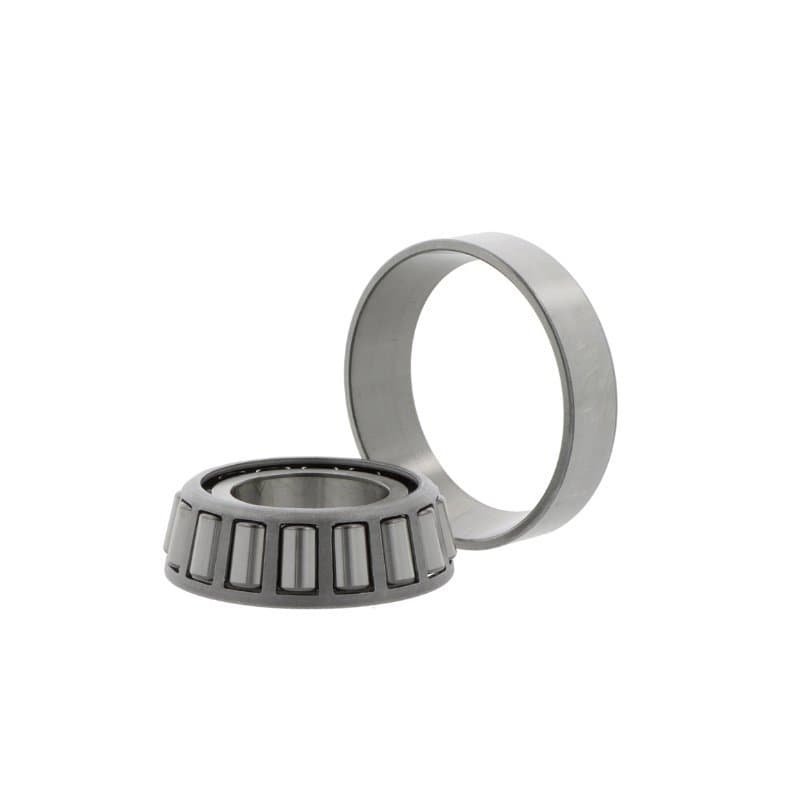

Pictured: NKE 32316. Every brand has its own product page with photo and full description.

Brands and prices 32316

Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.

Brand	Manufacturer designation	Clearance	Net price	Availability
NKE	32316	CN	PLN 336.10PLN 413.40 gross	supplier stockdispatch in 2 working days
NACHI	32316	CN	PLN 374.49PLN 460.62 gross	supplier stockdispatch in 2 working days
NSK	32316 Jpressed steel cage	CN	PLN 483.19PLN 594.32 gross	supplier stockdispatch in 2 working days
NTN	32316 U	CN	PLN 532.88PLN 655.44 gross	supplier stockdispatch in 2 working days
KOYO	32316 R	CN	PLN 535.52PLN 658.69 gross	supplier stockdispatch in 2 working days
TIMKEN	32316-90KA1	CN	PLN 546.33PLN 671.99 gross	supplier stockdispatch in 2 working days
FAG	32316	CN	PLN 560.09PLN 688.91 gross	supplier stockdispatch in 2 working days
SKF	32316 J2two-piece pressed steel cage	CN	PLN 693.09PLN 852.50 gross	supplier stockdispatch in 2 working days
SKF	32316	CN	PLN 722.09PLN 888.17 gross	supplier stockdispatch in 2 working days

Can't see your brand? Ask for an offer – we reply within 24 h.

How manufacturers designate 32316

Each brand uses its own seal and design codes. The designations below describe the same bearing.

Manufacturer	Designation	Sealing / design
SKF	32316 J2	Open
NKE	32316	Open
NACHI	32316	Open
NSK	32316 J	Open
NTN	32316 U	Open
KOYO	32316 R	Open
TIMKEN	32316-90KA1	Open
FAG	32316	Open

Questions about 32316

What are the dimensions of bearing 32316?

Bore 80 mm, outside diameter 170 mm, width 61.5 mm. Standardised dimensions – the same for every manufacturer.

Are 32316 bearings from different brands interchangeable?

Yes. 32316 J2 SKF, 32316 NKE, 32316 NACHI, 32316 J NSK, 32316 U NTN are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.

How much does bearing 32316 cost?

At Castomer from PLN 336.10 to PLN 722.09 net per piece depending on the manufacturer (SKF, NKE, NACHI, NSK, NTN, KOYO). Prices are updated from supplier warehouses; larger quantities get an individual offer.

What is the delivery time for 32316?

Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
