Angular contact ball bearing 3302-2Z – 15×42×19 mm
4 offers · 4 manufacturers · net prices from PLN 59.46 · dispatch in 2 working days
3302-2Z is a angular contact ball bearing with a 15 mm bore, 42 mm outside diameter and 19 mm width, with two metal shields (2Z) – non-contact, for higher speeds. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 15 mm
- outside D
- 42 mm
- width B
- 19 mm
- sealing
- 2Z
- mass
- 0.13 kg
- net price from
- PLN 59.46
Brands and prices 3302-2Z
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

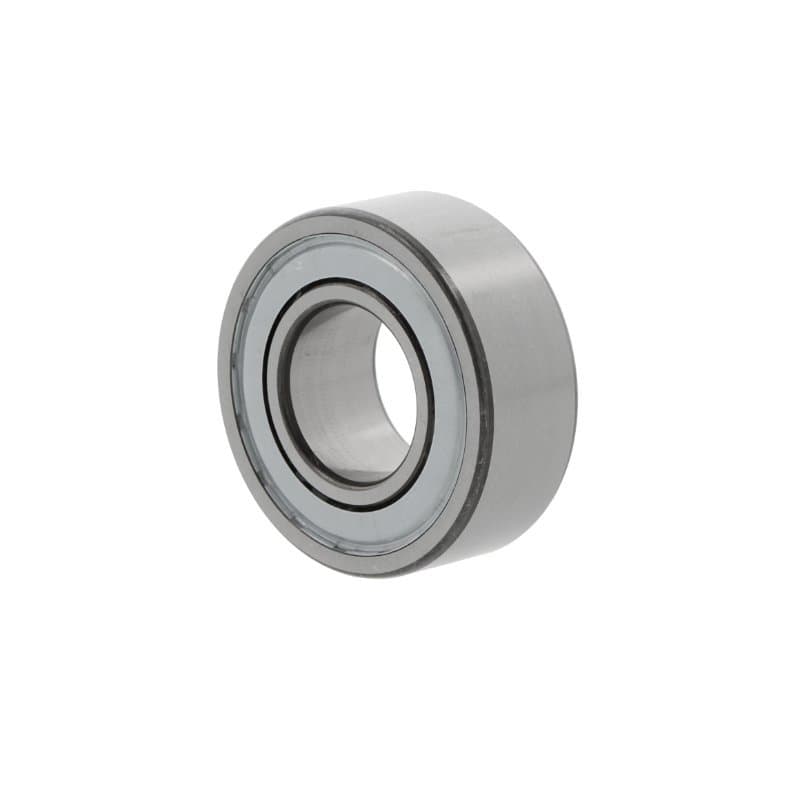

| NKE | 3302 B-2ZTV40° contact angle, glass-fibre reinforced polyamide cage (FAG) | CN | PLN 59.46PLN 73.14 gross | supplier stockdispatch in 2 working days | |
| NSK | 3302 B-2ZRTNG40° contact angle, glass-fibre reinforced polyamide cage (NSK) | CN | PLN 87.64PLN 107.80 gross | supplier stockdispatch in 2 working days | |
| FAG | 3302 BD2ZTVH40° contact angle, solid polyamide cage (FAG) | CN | PLN 99.15PLN 121.95 gross | supplier stockdispatch in 2 working days | |
| SKF | 3302 A2ZTN9MT33glass-fibre reinforced PA66 cage (SKF), machined brass cage | CN | PLN 104.93PLN 129.06 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 3302
The same size in another design – open, shielded, tapered bore.
How manufacturers designate 3302-2Z
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| NKE | 3302 B-2ZTV | 2Z – metal shields, both sides |
| NSK | 3302 B-2ZRTNG | 2Z – metal shields, both sides |
| FAG | 3302 BD2ZTVH | 2Z – metal shields, both sides |
| SKF | 3302 A2ZTN9MT33 | 2Z – metal shields, both sides |
Questions about 3302-2Z
What are the dimensions of bearing 3302-2Z?
Bore 15 mm, outside diameter 42 mm, width 19 mm. Standardised dimensions – the same for every manufacturer.
Are 3302-2Z bearings from different brands interchangeable?
Yes. 3302 B-2ZTV NKE, 3302 B-2ZRTNG NSK, 3302 BD2ZTVH FAG, 3302 A2ZTN9MT33 SKF are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 3302-2Z cost?
At Castomer from PLN 59.46 to PLN 104.93 net per piece depending on the manufacturer (NKE, NSK, FAG, SKF). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 3302-2Z?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
