Angular contact ball bearing 3308-2Z – 40×90×36.5 mm
9 offers · 4 manufacturers · net prices from PLN 124.09 · dispatch in 2 working days
3308-2Z is a angular contact ball bearing with a 40 mm bore, 90 mm outside diameter and 36.5 mm width, with two metal shields (2Z) – non-contact, for higher speeds. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 40 mm
- outside D
- 90 mm
- width B
- 36.5 mm
- sealing
- 2Z
- mass
- 0.99 kg
- net price from
- PLN 124.09
Brands and prices 3308-2Z
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

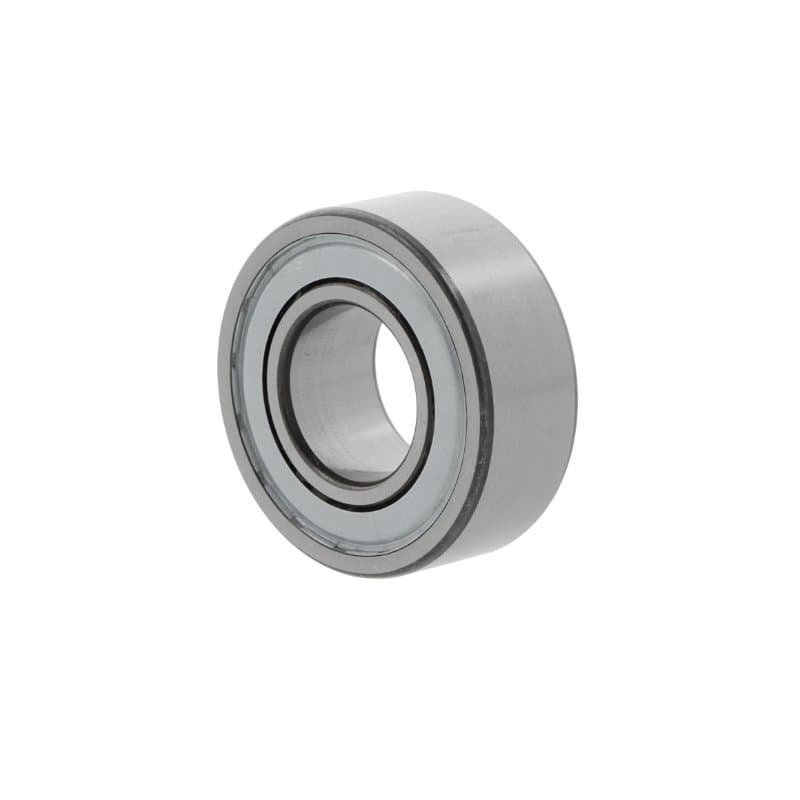

| NKE | 3308-B-2Z-TV40° contact angle, glass-fibre reinforced polyamide cage (FAG) | CN | PLN 124.09PLN 152.63 gross | supplier stockdispatch in 2 working days | |
| NKE | 3308 B-2ZTVC340° contact angle, glass-fibre reinforced polyamide cage (FAG) | C3 | PLN 140.67PLN 173.02 gross | supplier stockdispatch in 2 working days | |
| NSK | 3308 B-2ZRTNGC340° contact angle, glass-fibre reinforced polyamide cage (NSK) | C3 | PLN 207.57PLN 255.31 gross | supplier stockdispatch in 2 working days | |
| NSK | 3308 B-2ZRTNG40° contact angle, glass-fibre reinforced polyamide cage (NSK) | CN | PLN 207.57PLN 255.31 gross | supplier stockdispatch in 2 working days | |
| FAG | 3308 BD2ZTVH40° contact angle, solid polyamide cage (FAG) | CN | PLN 236.20PLN 290.53 gross | supplier stockdispatch in 2 working days | |
| FAG | 3308 BD2Z40° contact angle | CN | PLN 260.77PLN 320.75 gross | supplier stockdispatch in 2 working days | |
| SKF | 3308 A2ZTN9MT33glass-fibre reinforced PA66 cage (SKF), machined brass cage | CN | PLN 285.72PLN 351.44 gross | supplier stockdispatch in 2 working days | |
| SKF | 3308 A2ZC3MT33machined brass cage | C3 | PLN 310.93PLN 382.44 gross | supplier stockdispatch in 2 working days | |
| SKF | 3308 A-2ZTN9/C3VT113glass-fibre reinforced PA66 cage (SKF) | C3 | PLN 346.30PLN 425.95 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 3308
The same size in another design – open, shielded, tapered bore.
How manufacturers designate 3308-2Z
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| SKF | 3308 A2ZTN9MT33 | 2Z – metal shields, both sides |
| NKE | 3308-B-2Z-TV | 2Z – metal shields, both sides |
| NSK | 3308 B-2ZRTNGC3 | 2Z – metal shields, both sides |
| FAG | 3308 BD2ZTVH | 2Z – metal shields, both sides |
Questions about 3308-2Z
What are the dimensions of bearing 3308-2Z?
Bore 40 mm, outside diameter 90 mm, width 36.5 mm. Standardised dimensions – the same for every manufacturer.
Are 3308-2Z bearings from different brands interchangeable?
Yes. 3308 A2ZTN9MT33 SKF, 3308-B-2Z-TV NKE, 3308 B-2ZRTNGC3 NSK, 3308 BD2ZTVH FAG are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 3308-2Z cost?
At Castomer from PLN 124.09 to PLN 346.30 net per piece depending on the manufacturer (SKF, NKE, NSK, FAG). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 3308-2Z?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
