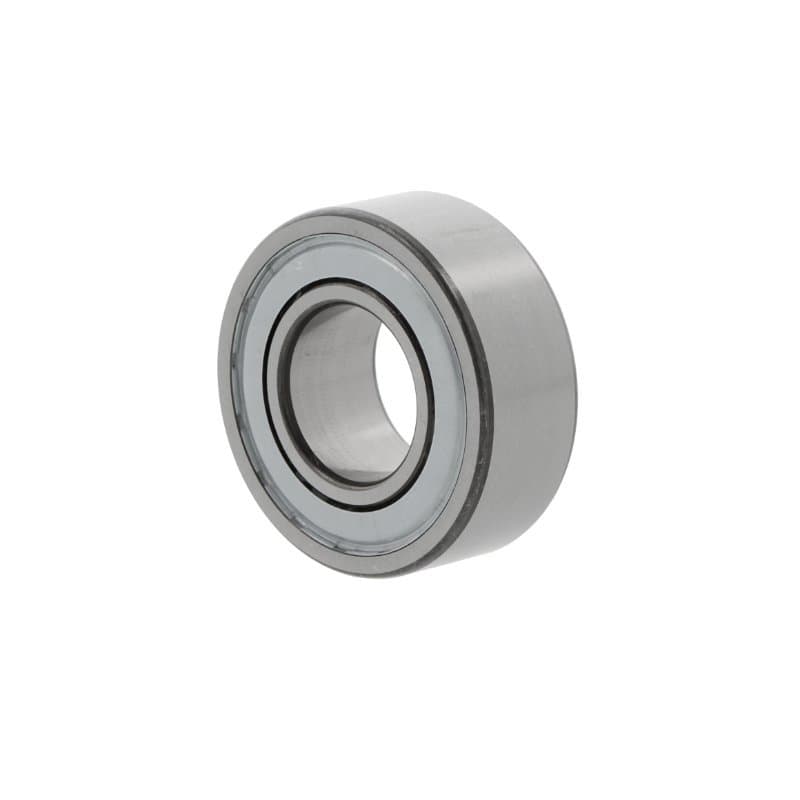

Angular contact ball bearing 3309-2Z – 45×100×39.7 mm
4 offers · 3 manufacturers · net prices from PLN 172.04 · dispatch in 2 working days
3309-2Z is a angular contact ball bearing with a 45 mm bore, 100 mm outside diameter and 39.7 mm width, with two metal shields (2Z) – non-contact, for higher speeds. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 45 mm
- outside D
- 100 mm
- width B
- 39.7 mm
- sealing
- 2Z
- mass
- 1.29 kg
- net price from
- PLN 172.04
Brands and prices 3309-2Z
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|
| NKE | 3309 B-2ZTV40° contact angle, glass-fibre reinforced polyamide cage (FAG) | CN | PLN 172.04PLN 211.61 gross | supplier stockdispatch in 2 working days | |
| NKE | 3309-B-2Z-TV-C340° contact angle, glass-fibre reinforced polyamide cage (FAG) | C3 | PLN 172.04PLN 211.61 gross | supplier stockdispatch in 2 working days | |
| NSK | 3309 B-2ZRTNGC340° contact angle, glass-fibre reinforced polyamide cage (NSK) | C3 | PLN 251.10PLN 308.85 gross | supplier stockdispatch in 2 working days | |
| SKF | 3309 A2Z | CN | PLN 433.29PLN 532.95 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 3309
The same size in another design – open, shielded, tapered bore.
How manufacturers designate 3309-2Z
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| NKE | 3309 B-2ZTV | 2Z – metal shields, both sides |
| NSK | 3309 B-2ZRTNGC3 | 2Z – metal shields, both sides |
| SKF | 3309 A2Z | 2Z – metal shields, both sides |
Questions about 3309-2Z
What are the dimensions of bearing 3309-2Z?
Bore 45 mm, outside diameter 100 mm, width 39.7 mm. Standardised dimensions – the same for every manufacturer.
Are 3309-2Z bearings from different brands interchangeable?
Yes. 3309 B-2ZTV NKE, 3309 B-2ZRTNGC3 NSK, 3309 A2Z SKF are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 3309-2Z cost?
At Castomer from PLN 172.04 to PLN 433.29 net per piece depending on the manufacturer (NKE, NSK, SKF). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 3309-2Z?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
