Deep groove ball bearing 3804-2RS – 20×32×10 mm
2 offers · 2 manufacturers · net prices from PLN 23.71 · dispatch in 2 working days

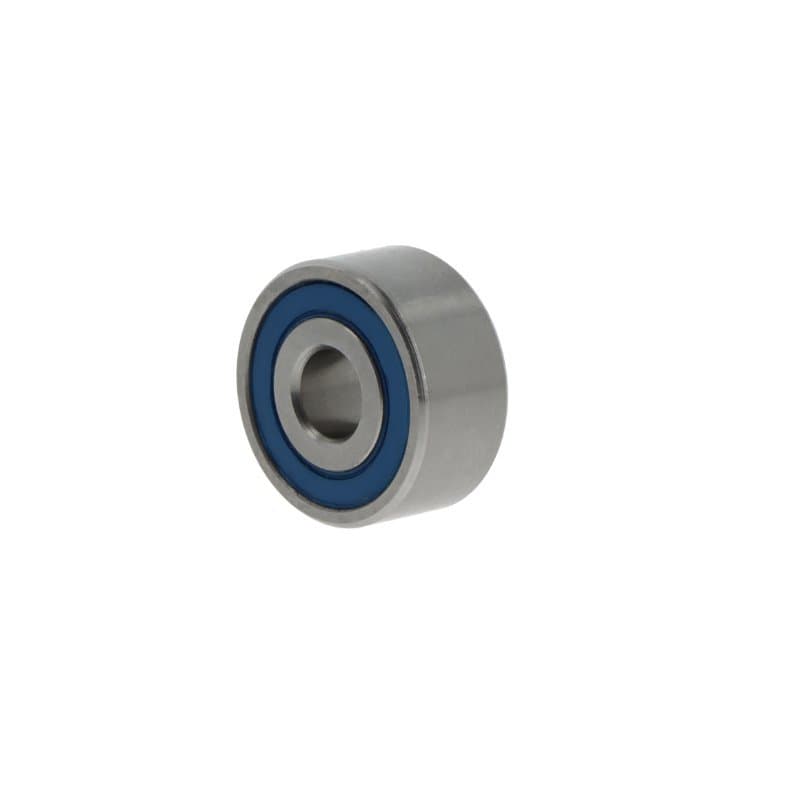

3804-2RS is a deep groove ball bearing with a 20 mm bore, 32 mm outside diameter and 10 mm width, with two rubber contact seals (2RS) – greased for life, maintenance-free. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 20 mm
- outside D
- 32 mm
- width B
- 10 mm
- sealing
- 2RS
- net price from
- PLN 23.71
Brands and prices 3804-2RS
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|
| ZEN | 3804 B2RS40° contact angle | CN | PLN 23.71PLN 29.16 gross | supplier stockdispatch in 2 working days | |
| FAG | 3804 B2RSRTVH40° contact angle, solid polyamide cage (FAG) | CN | PLN 69.50PLN 85.49 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 3804
The same size in another design – open, shielded, tapered bore.
How manufacturers designate 3804-2RS
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| ZEN | 3804 B2RS | 2RS – rubber contact seals, both sides |
| FAG | 3804 B2RSRTVH | 2RS – rubber contact seals, both sides |
2RS, 2Z or C3 – which to choose?
2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.
Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.
The dimensions of 3804-2RS are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.
Questions about 3804-2RS
What are the dimensions of bearing 3804-2RS?
Bore 20 mm, outside diameter 32 mm, width 10 mm. Standardised dimensions – the same for every manufacturer.
Are 3804-2RS bearings from different brands interchangeable?
Yes. 3804 B2RS ZEN, 3804 B2RSRTVH FAG are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 3804-2RS cost?
At Castomer from PLN 23.71 to PLN 69.50 net per piece depending on the manufacturer (ZEN, FAG). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 3804-2RS?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
