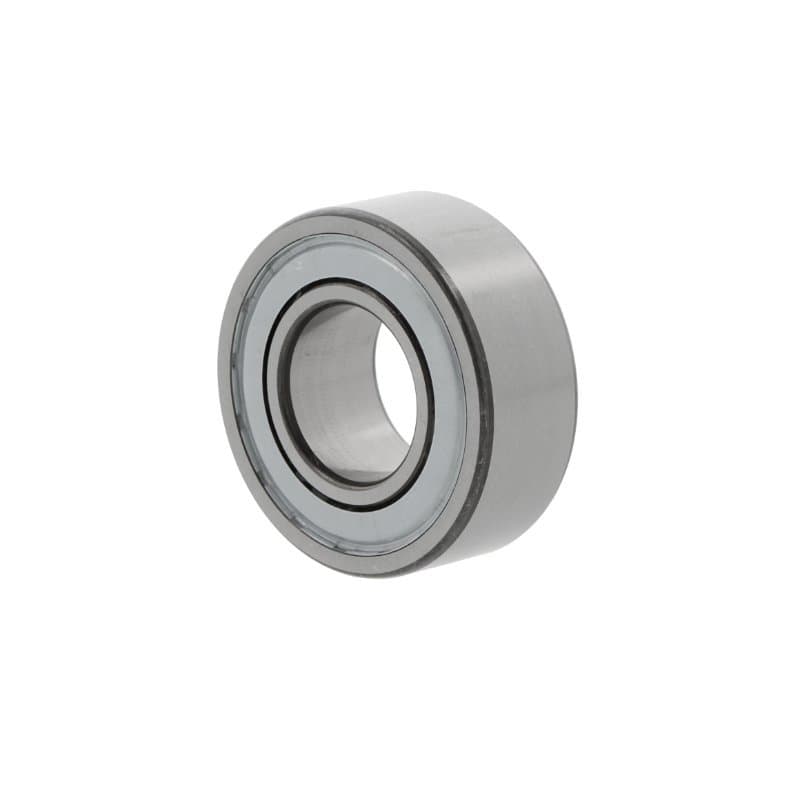

Deep groove ball bearing 3806-2Z – 30×42×10 mm
1 offer · 1 manufacturer · net prices from PLN 57.13 · dispatch in 2 working days
3806-2Z is a deep groove ball bearing with a 30 mm bore, 42 mm outside diameter and 10 mm width, with two metal shields (2Z) – non-contact, for higher speeds. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 30 mm
- outside D
- 42 mm
- width B
- 10 mm
- sealing
- 2Z
- net price from
- PLN 57.13
Brands and prices 3806-2Z
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|
| NKE | 3806-2Z | CN | PLN 57.13PLN 70.27 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 3806
The same size in another design – open, shielded, tapered bore.
2RS, 2Z or C3 – which to choose?
2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.
Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.
The dimensions of 3806-2Z are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.
Questions about 3806-2Z
What are the dimensions of bearing 3806-2Z?
Bore 30 mm, outside diameter 42 mm, width 10 mm. Standardised dimensions – the same for every manufacturer.
How much does bearing 3806-2Z cost?
At Castomer from PLN 57.13 to PLN 57.13 net per piece depending on the manufacturer (NKE). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 3806-2Z?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
