Deep groove ball bearing 5207-2Z – 35×72×27 mm
3 offers · 2 manufacturers · net prices from PLN 81.22 · dispatch in 2 working days
5207-2Z is a deep groove ball bearing with a 35 mm bore, 72 mm outside diameter and 27 mm width, with two metal shields (2Z) – non-contact, for higher speeds. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 35 mm
- outside D
- 72 mm
- width B
- 27 mm
- sealing
- 2Z
- net price from
- PLN 81.22
Brands and prices 5207-2Z
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

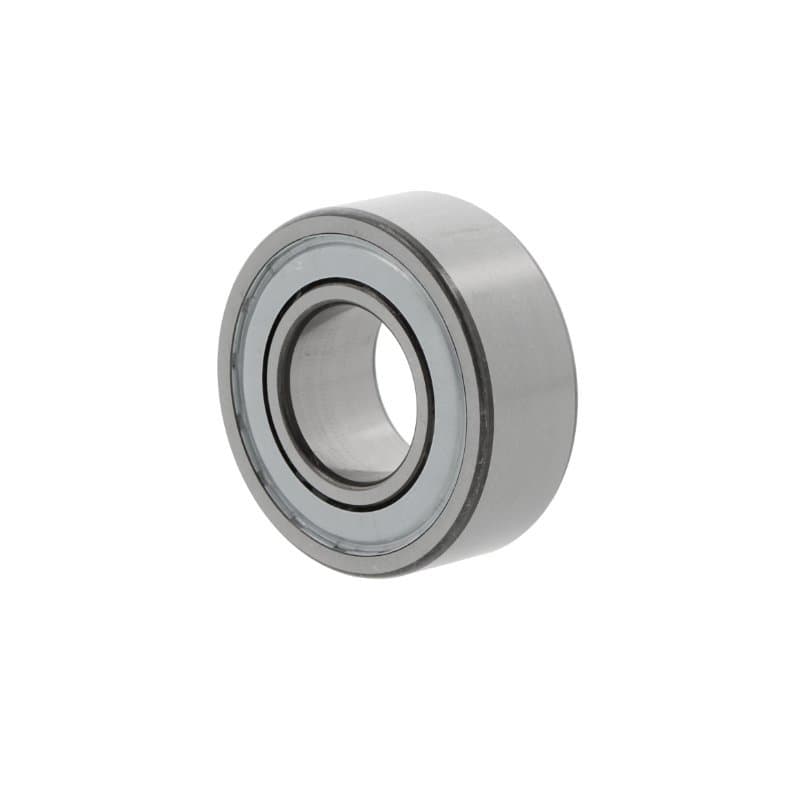

| NACHI | 5207 ZZ | CN | PLN 81.22PLN 99.90 gross | supplier stockdispatch in 2 working days | |
| SNR | 5207 ZZG15 | CN | PLN 144.40PLN 177.61 gross | supplier stockdispatch in 2 working days |
▸Special designs 5207-2Z (1) – stainless steel, snap ring, manufacturer specials
| SNR | 5207 NRZZG15snap ring groove with snap ring | CN | PLN 158.11PLN 194.48 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 5207
The same size in another design – open, shielded, tapered bore.
How manufacturers designate 5207-2Z
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| SNR | 5207 ZZG15 | 2Z – metal shields, both sides |
| NACHI | 5207 ZZ | 2Z – metal shields, both sides |
2RS, 2Z or C3 – which to choose?
2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.
Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.
The dimensions of 5207-2Z are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.
Questions about 5207-2Z
What are the dimensions of bearing 5207-2Z?
Bore 35 mm, outside diameter 72 mm, width 27 mm. Standardised dimensions – the same for every manufacturer.
Are 5207-2Z bearings from different brands interchangeable?
Yes. 5207 ZZG15 SNR, 5207 ZZ NACHI are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 5207-2Z cost?
At Castomer from PLN 81.22 to PLN 144.40 net per piece depending on the manufacturer (SNR, NACHI). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 5207-2Z?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
