Deep groove ball bearing 6003-RS – 17×35×10 mm
4 offers · 3 manufacturers · net prices from PLN 8.59 · dispatch in 2 working days
6003-RS is a deep groove ball bearing with a 17 mm bore, 35 mm outside diameter and 10 mm width, with one rubber contact seal (RS). The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 17 mm
- outside D
- 35 mm
- width B
- 10 mm
- sealing
- RS
- mass
- 0.04 kg
- net price from
- PLN 8.59
Brands and prices 6003-RS
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

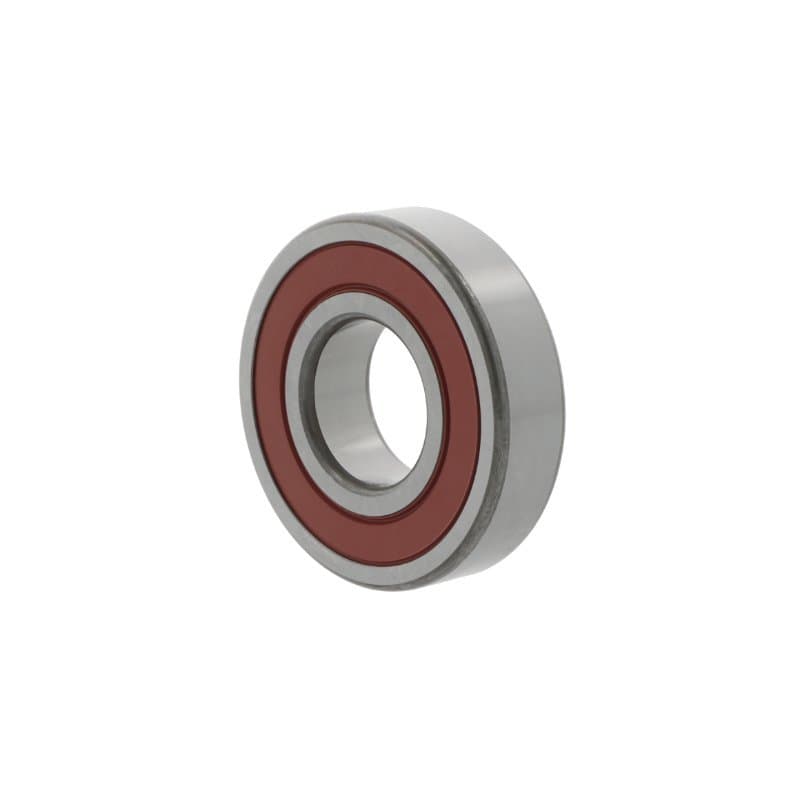

| NKE | 6003-RSRC3 | C3 | PLN 8.59PLN 10.57 gross | supplier stockdispatch in 2 working days | |
| NKE | 6003-RSR | CN | PLN 9.18PLN 11.29 gross | supplier stockdispatch in 2 working days | |
| FAG | 6003-RSR | CN | PLN 9.50PLN 11.69 gross | supplier stockdispatch in 2 working days | |
| SKF | 6003-RSH | CN | PLN 15.22PLN 18.72 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 6003
The same size in another design – open, shielded, tapered bore.
- 6003-2Z2Z – metal shields, both sides34 offers · from PLN 2.48 net
- 6003Open30 offers · from PLN 3.19 net
- 6003-2RS2RS – rubber contact seals, both sides30 offers · from PLN 3.19 net
- 6003-ZZ – metal shield, one side7 offers · from PLN 6.27 net
- 6003-2RZ2RZ – rubber non-contact seals, both sides7 offers · from PLN 9.72 net
- 6003-RZRZ – rubber non-contact seal, one side2 offers · from PLN 24.73 net
- 6003 KOpen · Tapered bore1 offer · from PLN 7.83 net
How manufacturers designate 6003-RS
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| NKE | 6003-RSRC3 | RS – rubber contact seal, one side |
| FAG | 6003-RSR | RS – rubber contact seal, one side |
| SKF | 6003-RSH | RS – rubber contact seal, one side |
2RS, 2Z or C3 – which to choose?
2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.
Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.
The dimensions of 6003-RS are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.
Questions about 6003-RS
What are the dimensions of bearing 6003-RS?
Bore 17 mm, outside diameter 35 mm, width 10 mm. Standardised dimensions – the same for every manufacturer.
Are 6003-RS bearings from different brands interchangeable?
Yes. 6003-RSRC3 NKE, 6003-RSR FAG, 6003-RSH SKF are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 6003-RS cost?
At Castomer from PLN 8.59 to PLN 15.22 net per piece depending on the manufacturer (NKE, FAG, SKF). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 6003-RS?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
