Deep groove ball bearing 6004-Z – 20×42×12 mm

12 offers · 6 manufacturers · net prices from PLN 7.67 · dispatch in 2 working days

6004-Z is a deep groove ball bearing with a 20 mm bore, 42 mm outside diameter and 12 mm width, with one metal shield (Z). The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.

bore d: 20 mm
outside D: 42 mm
width B: 12 mm
sealing: Z
mass: 0.07 kg
net price from: PLN 7.67

Dimension drawing 6004-Z – one for all brands (ISO dimensions)

Main dimensions
d – bore diameter	20 mm
D – outside diameter	42 mm
B – width	12 mm
dynamic load rating C	9.95 kN (per SKF catalogue)
static load rating C₀	5 kN (per SKF catalogue)
mass	0.07 kg

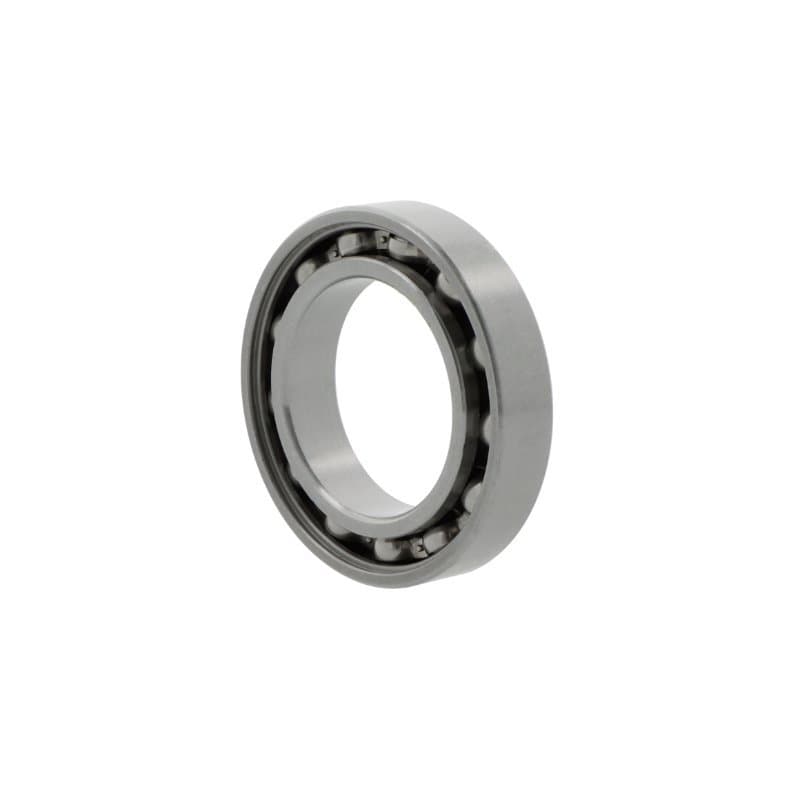

Pictured: INNE 6004-ZECM. Every brand has its own product page with photo and full description.

Brands and prices 6004-Z

Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.

Brand	Manufacturer designation	Clearance	Net price	Availability
INNE	6004-ZECMEC design, machined brass cage (SKF)	CN	PLN 7.67PLN 9.43 gross	supplier stockdispatch in 2 working days
FAG	6004-C2ZC3	C3	PLN 8.21PLN 10.10 gross	supplier stockdispatch in 2 working days
FAG	6004-C2Z	C2	PLN 8.21PLN 10.10 gross	supplier stockdispatch in 2 working days
NKE	6004-Z	CN	PLN 8.63PLN 10.61 gross	supplier stockdispatch in 2 working days
NKE	6004-ZC3	C3	PLN 9.02PLN 11.09 gross	supplier stockdispatch in 2 working days
NSK	6004 ZC3	C3	PLN 9.12PLN 11.22 gross	supplier stockdispatch in 2 working days
NSK	6004-Z	CN	PLN 9.12PLN 11.22 gross	supplier stockdispatch in 2 working days
KOYO	6004 Z	CN	PLN 10.80PLN 13.28 gross	supplier stockdispatch in 2 working days
FAG	6004-C-Z	CN	PLN 11.07PLN 13.62 gross	supplier stockdispatch in 2 working days
FAG	6004-CZC3	C3	PLN 11.07PLN 13.62 gross	supplier stockdispatch in 2 working days
SKF	6004-ZC3	C3	PLN 12.58PLN 15.47 gross	supplier stockdispatch in 2 working days
SKF	6004-Z	CN	PLN 14.15PLN 17.40 gross	supplier stockdispatch in 2 working days

Can't see your brand? Ask for an offer – we reply within 24 h.

Other versions of 6004

The same size in another design – open, shielded, tapered bore.

How manufacturers designate 6004-Z

Each brand uses its own seal and design codes. The designations below describe the same bearing.

Manufacturer	Designation	Sealing / design
FAG	6004-C2ZC3	Z – metal shield, one side
NKE	6004-Z	Z – metal shield, one side
NSK	6004 ZC3	Z – metal shield, one side
SKF	6004-ZC3	Z – metal shield, one side
INNE	6004-ZECM	Z – metal shield, one side
KOYO	6004 Z	Z – metal shield, one side

2RS, 2Z or C3 – which to choose?

2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.

Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.

The dimensions of 6004-Z are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.

Questions about 6004-Z

What are the dimensions of bearing 6004-Z?

Bore 20 mm, outside diameter 42 mm, width 12 mm. Standardised dimensions – the same for every manufacturer.

Are 6004-Z bearings from different brands interchangeable?

Yes. 6004-C2ZC3 FAG, 6004-Z NKE, 6004 ZC3 NSK, 6004-ZC3 SKF, 6004-ZECM INNE are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.

How much does bearing 6004-Z cost?

At Castomer from PLN 7.67 to PLN 14.15 net per piece depending on the manufacturer (FAG, NKE, NSK, SKF, INNE, KOYO). Prices are updated from supplier warehouses; larger quantities get an individual offer.

What is the delivery time for 6004-Z?

Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
