Deep groove ball bearing 6005-RS – 25×47×12 mm
7 offers · 4 manufacturers · net prices from PLN 10.63 · dispatch in 2 working days
6005-RS is a deep groove ball bearing with a 25 mm bore, 47 mm outside diameter and 12 mm width, with one rubber contact seal (RS). The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 25 mm
- outside D
- 47 mm
- width B
- 12 mm
- sealing
- RS
- mass
- 0.07 kg
- net price from
- PLN 10.63
Brands and prices 6005-RS
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

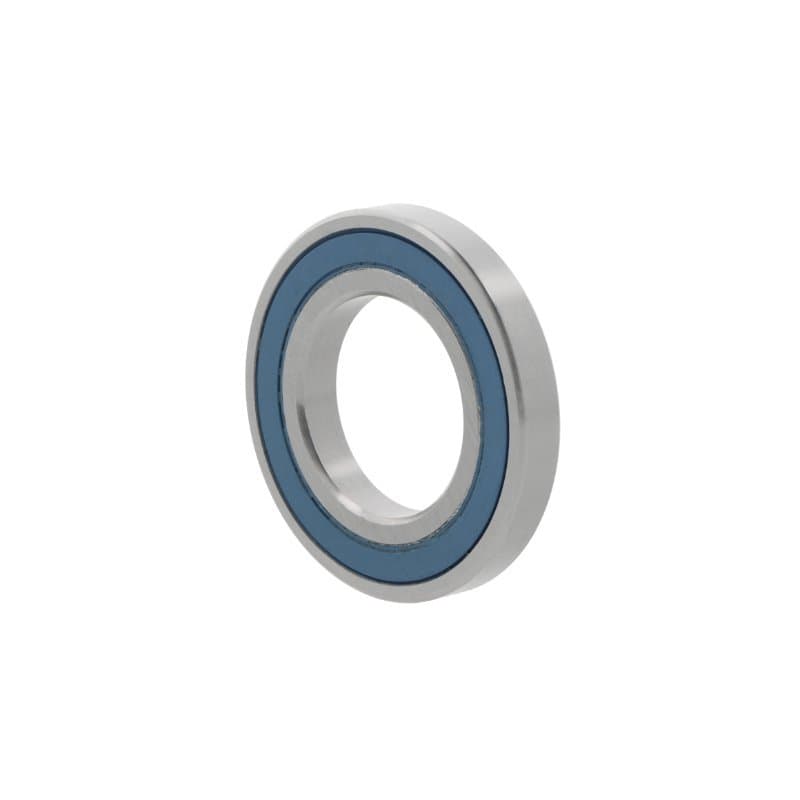

| FAG | 6005-C2HRSC3 | C3 | PLN 10.63PLN 13.07 gross | supplier stockdispatch in 2 working days | |
| FAG | 6005-C2HRS | C2 | PLN 10.63PLN 13.07 gross | supplier stockdispatch in 2 working days | |
| NKE | 6005-RSR | CN | PLN 11.72PLN 14.42 gross | supplier stockdispatch in 2 working days | |
| NKE | 6005-RSRC3 | C3 | PLN 11.72PLN 14.42 gross | supplier stockdispatch in 2 working days | |
| NSK | 6005 DUC3 | C3 | PLN 12.32PLN 15.15 gross | supplier stockdispatch in 2 working days | |
| FAG | 6005-C-HRS-C3 (-RSR-C3) | C3 | PLN 15.22PLN 18.72 gross | supplier stockdispatch in 2 working days | |
| SKF | 6005-RSH | CN | PLN 17.66PLN 21.72 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 6005
The same size in another design – open, shielded, tapered bore.
- 6005Open35 offers · from PLN 3.99 net
- 6005-2Z2Z – metal shields, both sides29 offers · from PLN 5.56 net
- 6005-2RS2RS – rubber contact seals, both sides24 offers · from PLN 5.56 net
- 6005-ZZ – metal shield, one side10 offers · from PLN 9.40 net
- 6005-2RZ2RZ – rubber non-contact seals, both sides8 offers · from PLN 12.32 net
- 6005 KOpen · Tapered bore2 offers · from PLN 9.99 net
- 6005-RZRZ – rubber non-contact seal, one side1 offer · from PLN 105.08 net
How manufacturers designate 6005-RS
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| FAG | 6005-C2HRSC3 | RS – rubber contact seal, one side |
| NKE | 6005-RSR | RS – rubber contact seal, one side |
| NSK | 6005 DUC3 | RS – rubber contact seal, one side |
| SKF | 6005-RSH | RS – rubber contact seal, one side |
2RS, 2Z or C3 – which to choose?
2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.
Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.
The dimensions of 6005-RS are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.
Questions about 6005-RS
What are the dimensions of bearing 6005-RS?
Bore 25 mm, outside diameter 47 mm, width 12 mm. Standardised dimensions – the same for every manufacturer.
Are 6005-RS bearings from different brands interchangeable?
Yes. 6005-C2HRSC3 FAG, 6005-RSR NKE, 6005 DUC3 NSK, 6005-RSH SKF are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 6005-RS cost?
At Castomer from PLN 10.63 to PLN 17.66 net per piece depending on the manufacturer (FAG, NKE, NSK, SKF). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 6005-RS?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
