Deep groove ball bearing 6008-Z – 40×68×15 mm

9 offers · 5 manufacturers · net prices from PLN 18.37 · dispatch in 2 working days

6008-Z is a deep groove ball bearing with a 40 mm bore, 68 mm outside diameter and 15 mm width, with one metal shield (Z). The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.

bore d: 40 mm
outside D: 68 mm
width B: 15 mm
sealing: Z
mass: 0.18 kg
net price from: PLN 18.37

Dimension drawing 6008-Z – one for all brands (ISO dimensions)

Main dimensions
d – bore diameter	40 mm
D – outside diameter	68 mm
B – width	15 mm
dynamic load rating C	17.8 kN (per SKF catalogue)
static load rating C₀	11 kN (per SKF catalogue)
mass	0.18 kg

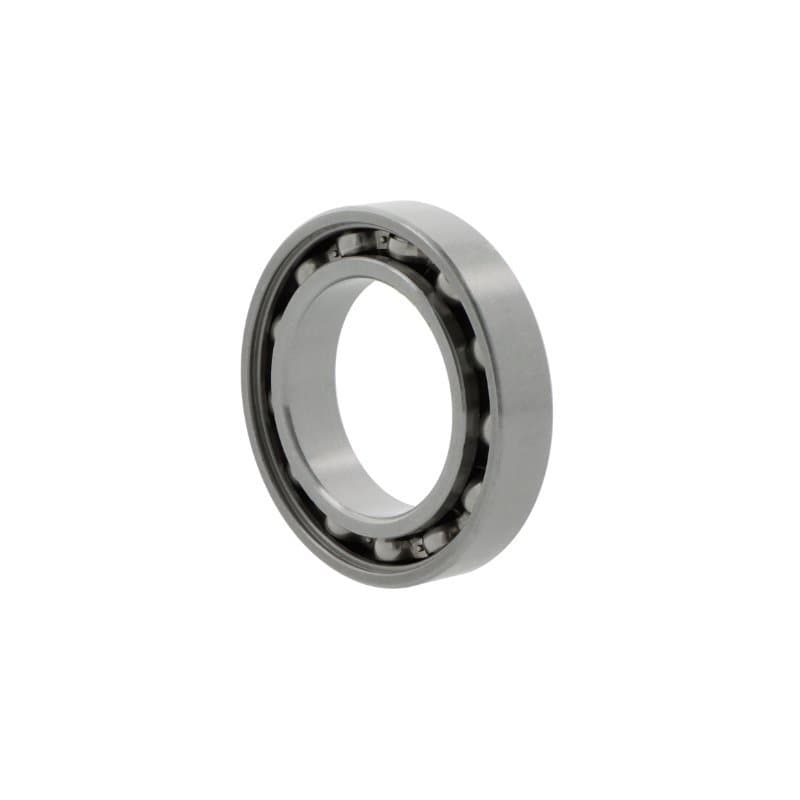

Pictured: NKE 6008-Z. Every brand has its own product page with photo and full description.

Brands and prices 6008-Z

Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.

Brand	Manufacturer designation	Clearance	Net price	Availability
NKE	6008-Z	CN	PLN 18.37PLN 22.60 gross	supplier stockdispatch in 2 working days
NSK	6008-Z	CN	PLN 20.73PLN 25.50 gross	supplier stockdispatch in 2 working days
FAG	6008-ZR	CN	PLN 23.33PLN 28.70 gross	supplier stockdispatch in 2 working days
NKE	6008-ZC3	C3	PLN 25.17PLN 30.96 gross	supplier stockdispatch in 2 working days
FAG	6008-Z-C3	C3	PLN 25.65PLN 31.55 gross	supplier stockdispatch in 2 working days
SKF	6008-Z	CN	PLN 31.48PLN 38.72 gross	supplier stockdispatch in 2 working days
SKF	6008-ZC3	C3	PLN 31.48PLN 38.72 gross	supplier stockdispatch in 2 working days
ZEN	6008-CE-ZrO2-PTFEreinforced design, higher load rating	CN	PLN 338.15PLN 415.92 gross	supplier stockdispatch in 2 working days

▸Special designs 6008-Z (1) – stainless steel, snap ring, manufacturer specials

NSK

6008-ZNRsnap ring groove with snap ring

PLN 22.58PLN 27.77 gross

supplier stockdispatch in 2 working days

Can't see your brand? Ask for an offer – we reply within 24 h.

Other versions of 6008

The same size in another design – open, shielded, tapered bore.

How manufacturers designate 6008-Z

Each brand uses its own seal and design codes. The designations below describe the same bearing.

Manufacturer	Designation	Sealing / design
NKE	6008-Z	Z – metal shield, one side
NSK	6008-Z	Z – metal shield, one side
FAG	6008-ZR	Z – metal shield, one side
SKF	6008-Z	Z – metal shield, one side
ZEN	6008-CE-ZrO2-PTFE	Z – metal shield, one side

2RS, 2Z or C3 – which to choose?

2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.

Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.

The dimensions of 6008-Z are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.

Questions about 6008-Z

What are the dimensions of bearing 6008-Z?

Bore 40 mm, outside diameter 68 mm, width 15 mm. Standardised dimensions – the same for every manufacturer.

Are 6008-Z bearings from different brands interchangeable?

Yes. 6008-Z NKE, 6008-Z NSK, 6008-ZR FAG, 6008-Z SKF, 6008-CE-ZrO2-PTFE ZEN are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.

How much does bearing 6008-Z cost?

At Castomer from PLN 18.37 to PLN 338.15 net per piece depending on the manufacturer (NKE, NSK, FAG, SKF, ZEN). Prices are updated from supplier warehouses; larger quantities get an individual offer.

What is the delivery time for 6008-Z?

Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
